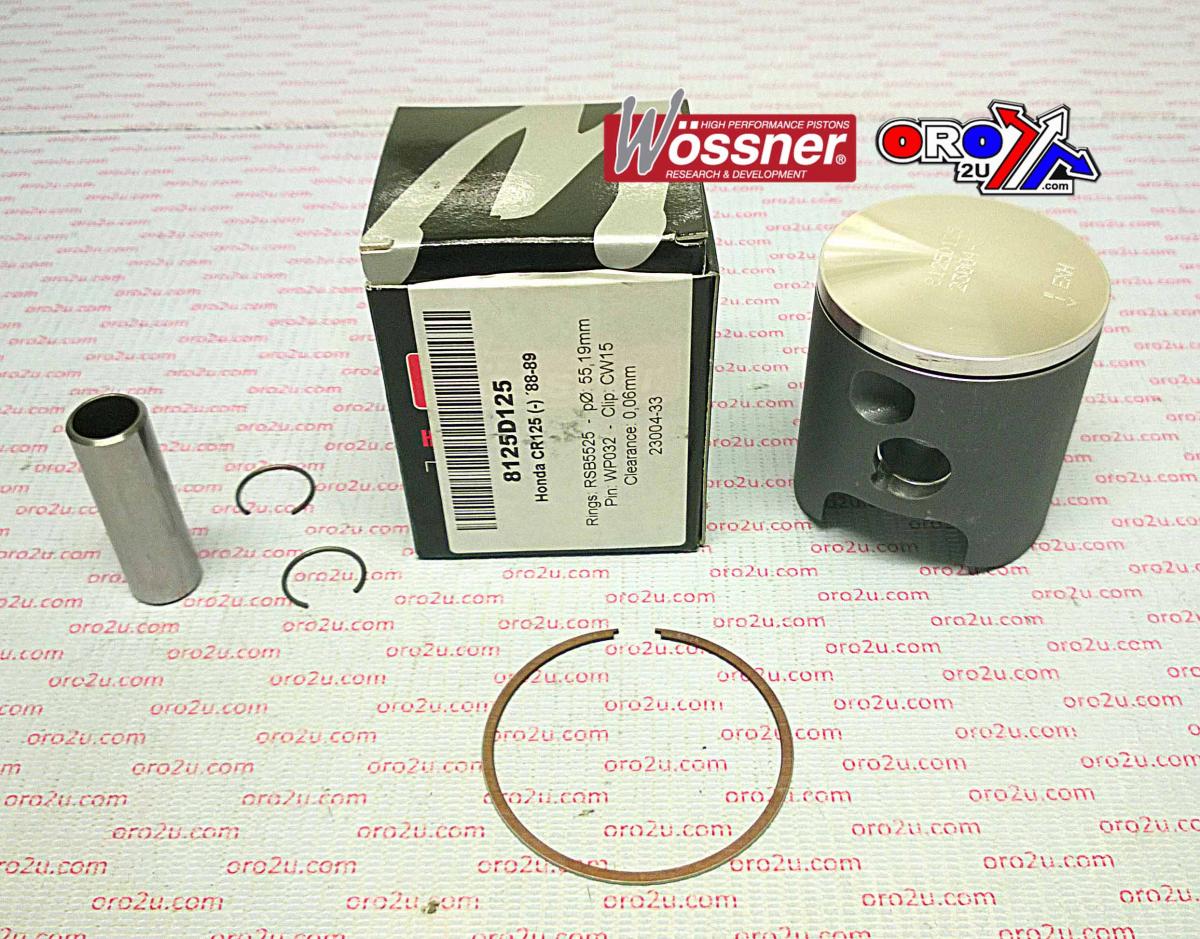

Piston kit 55.25mm Bore 55.19 Wossner 8125D125 (+1.25)
HONDA
CR125 1988 - 1989,
Wossner forged pistons are superior in strength and design. Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls. Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse. Made in Germany Part No. 56-W564+P5.WO
Wossner Piston Honda CR125 O/S +1.25mm 55.25mm Bore 8125D125
Lock P/N CW15
Pin P/N WP032
Ring Set P/N RSB5525
Rod P/N P2009 Display (cm3) 125
Hub stroke (mm) 54.00
Clearance (mm) 0.06
Wossner compression Ratio: 2 stroke
OEM Compression ratio: 2 stroke
Dome volume (cm3)
Compression height (mm) 28.00
Theorectical weight (G)
