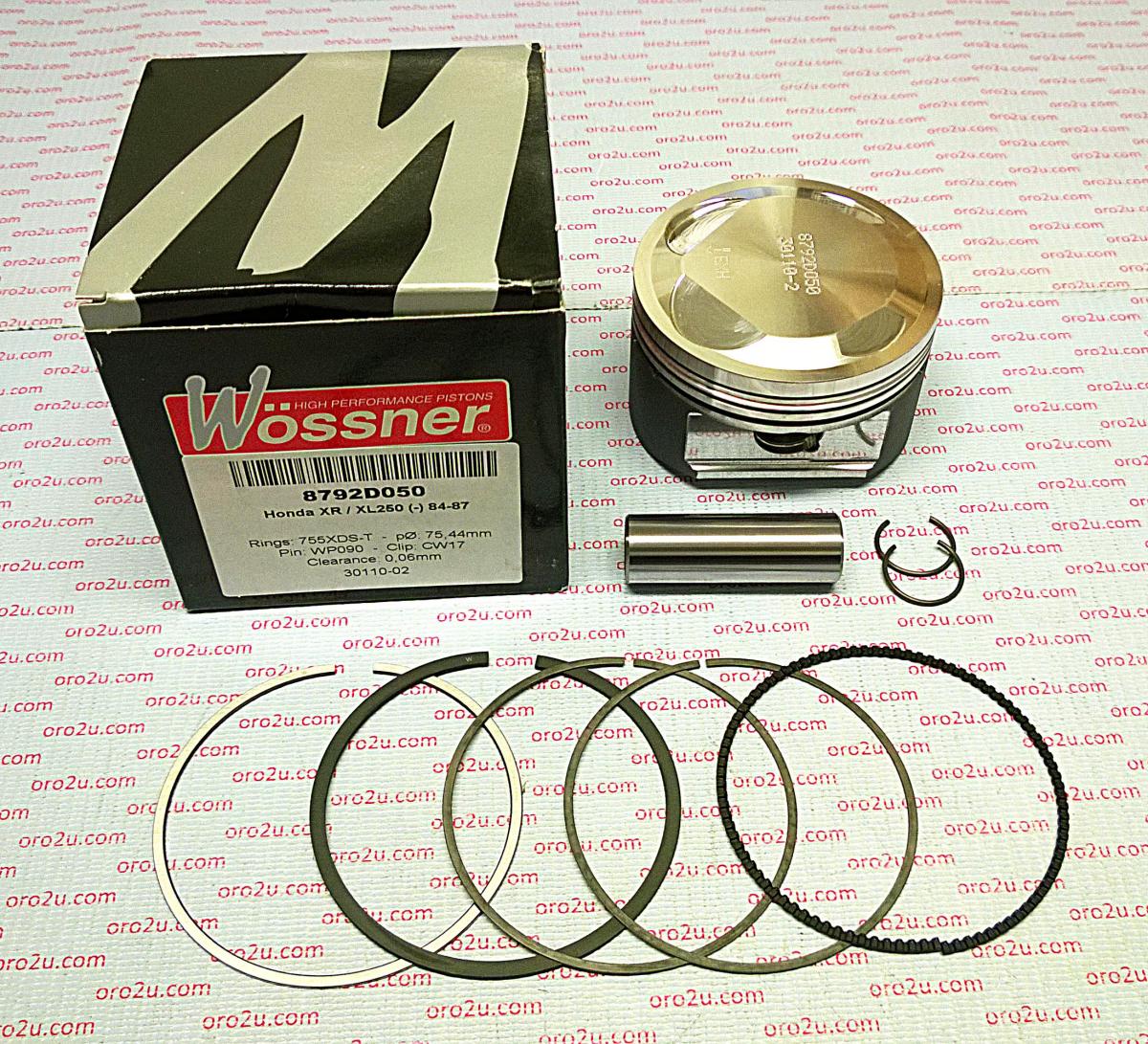

Piston kit 75mm Bore 74.94 Wossner 8792DA (STD)
HONDA
XR250 1984 - 1987,
XL250R 1984 - 1987,
Wossner forged pistons are superior in strength and design. Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls. Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse. Made in Germany. Part No. 56-W4329.A.WO
Wossner Piston Honda XL250 75 mm Bore (PN# 8792DA)
Lock P/N CW17
Pin P/N WP090
Ring Set P/N 750XDS Display (cm3) 249
Hub stroke (mm) 56.50
Clearance (mm) 0.06
Wossner compression Ratio: OEM
OEM Compression ratio: 10.50:1
Dome volume (cm3) +6.40
Compression height (mm) 25.40
Theorectical weight (G)
