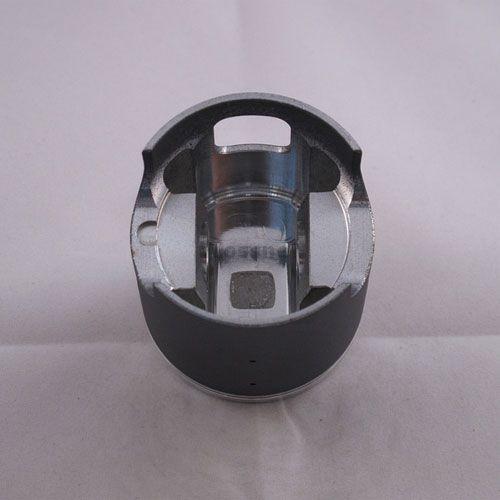

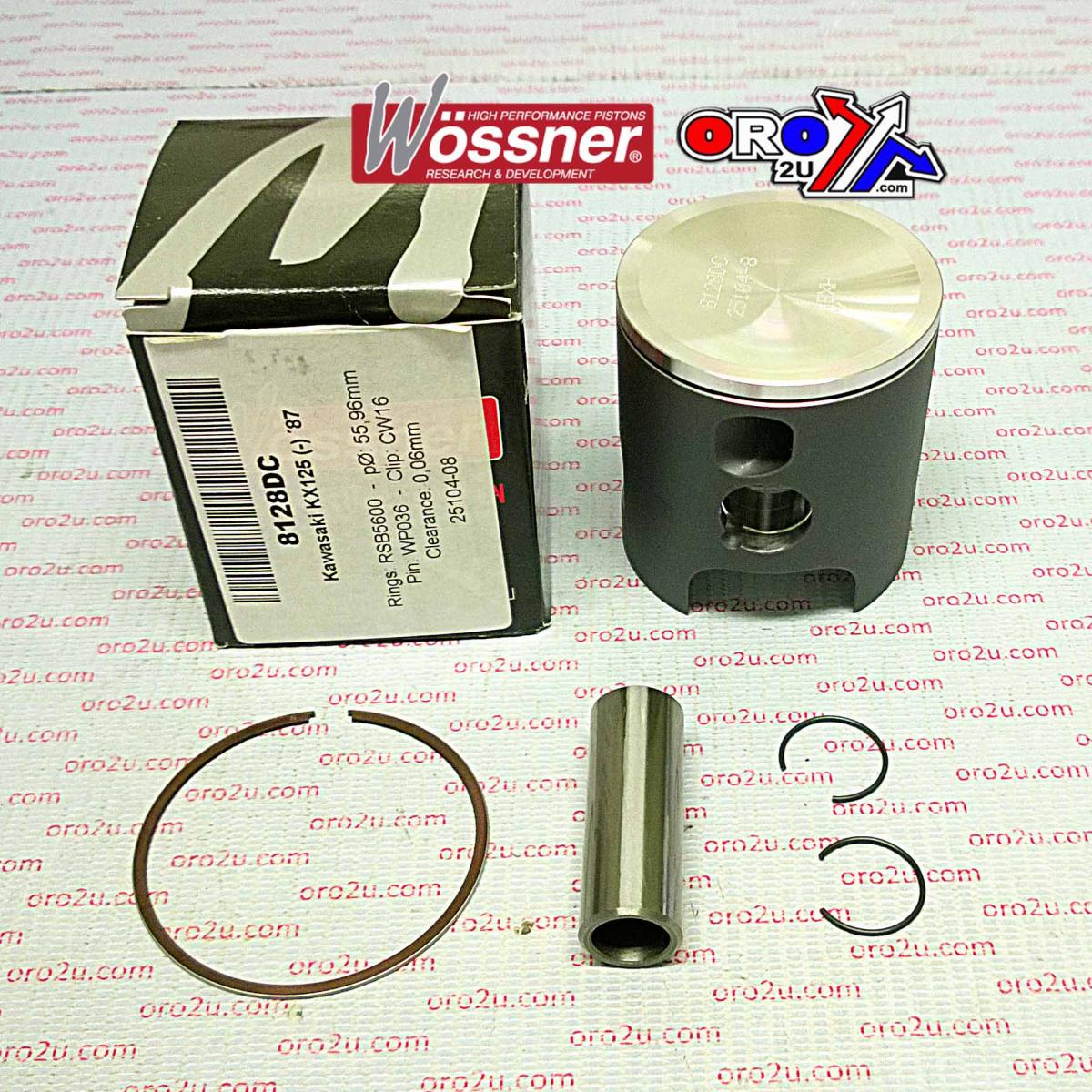

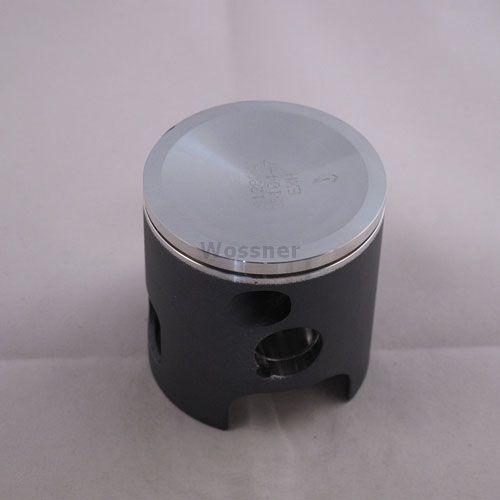

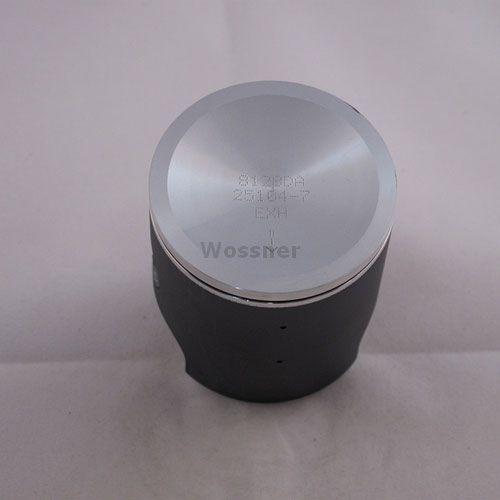

Piston Kit 58mm Bore 57.94 Wossner 8128D200 (+2.00) KAWASAKI
KX125 1987, Wossner forged pistons are superior in strength and design. Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls. Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse. Made in Germany Part No. 56-W555+200.WO
Lock P/N CW16
Pin P/N WP036
Ring Set P/N RSB5800
Connecting Rod P/N P2037 Display (cm3) 125
Hub stroke (mm) 50.60
Clearance (mm) 0.06
Wossner compression Ratio: 2 stroke
OEM Compression ratio: 2 stroke
Dome volume (cm3)
Compression height (mm) 29.50
Theorectical weight (G)
