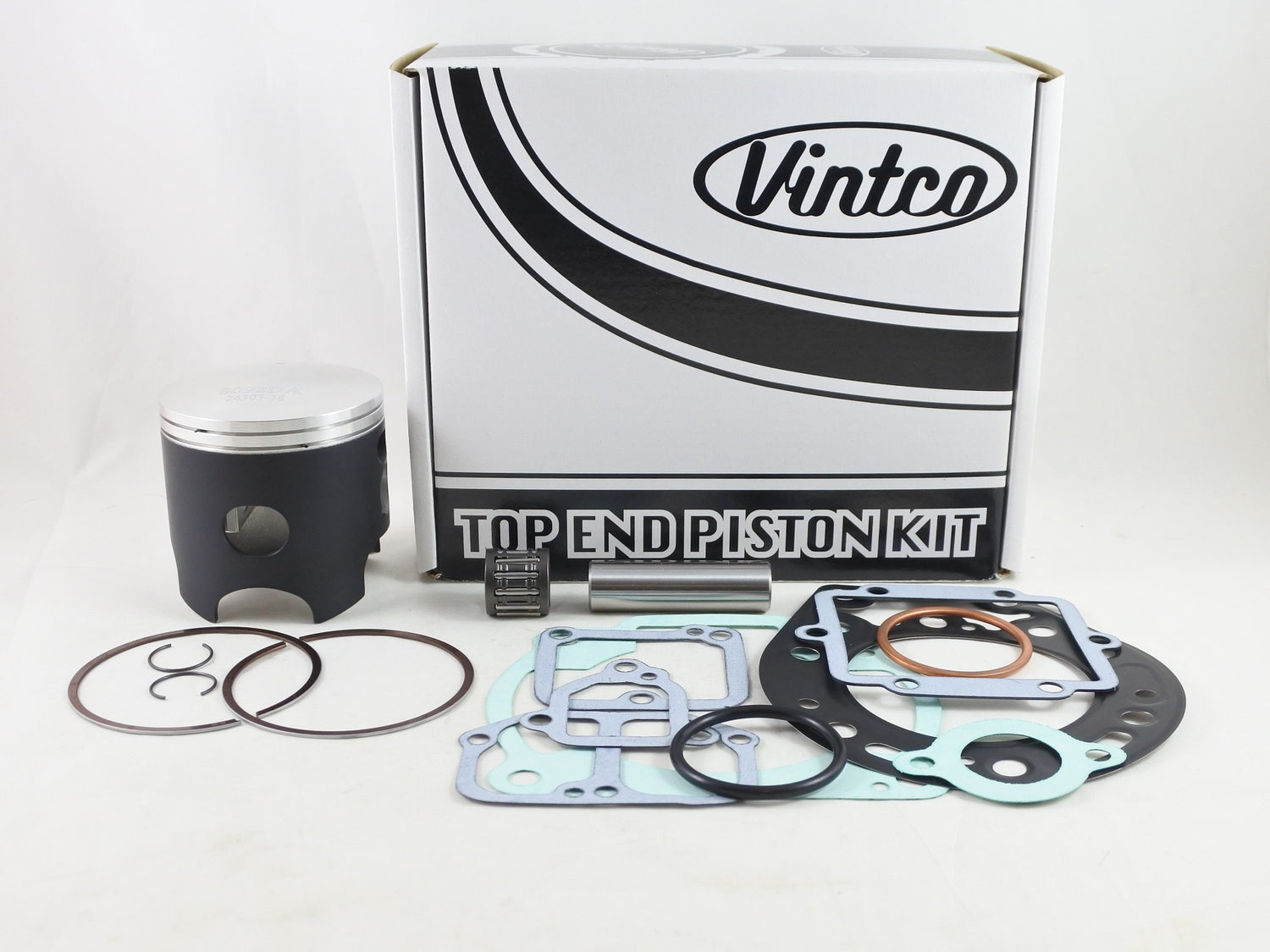

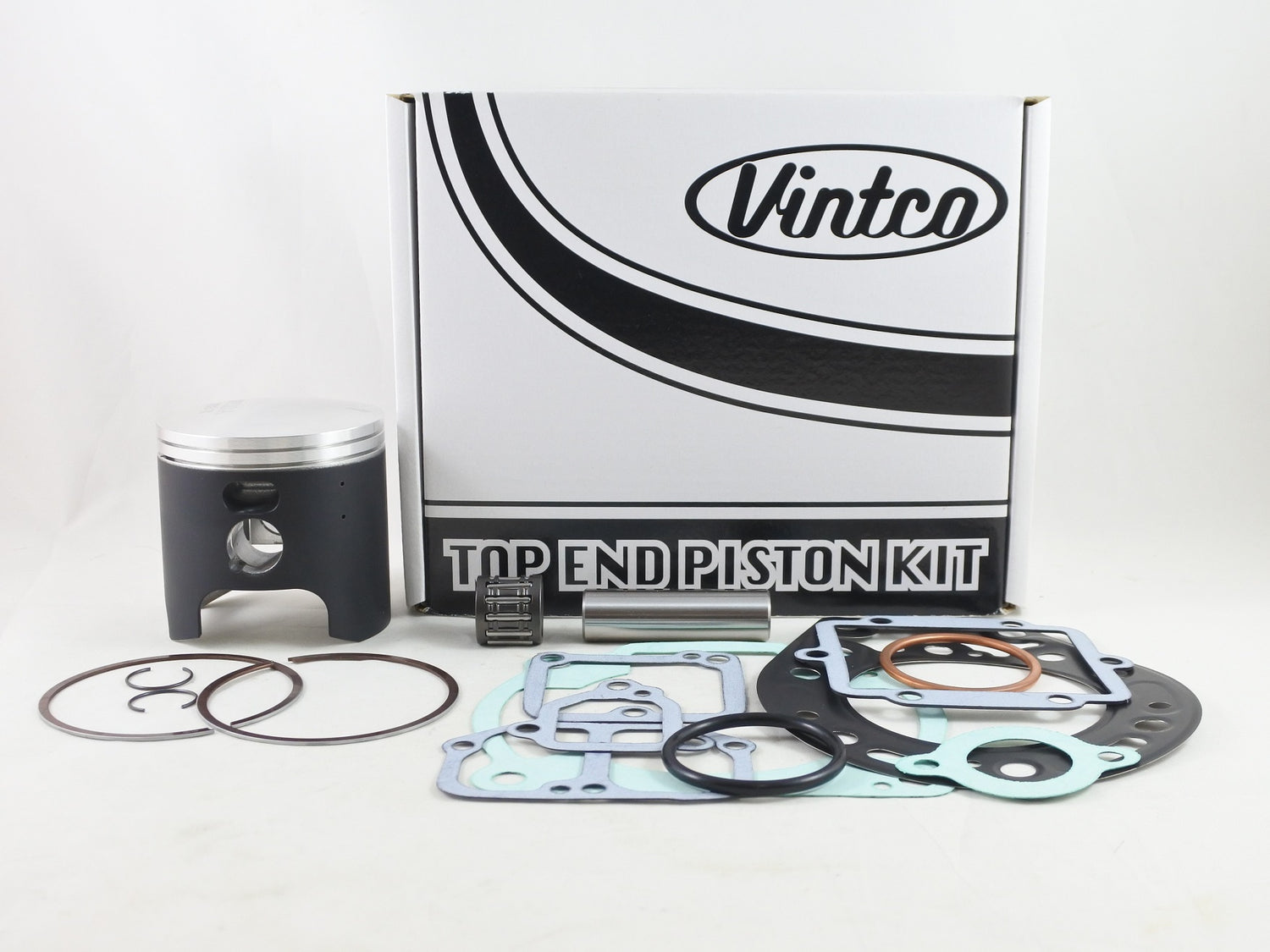

VintCo KTK15-00 is a standard-size top end piston kit for 1997-2005 Kawasaki KDX220 models. This kit is supplied for the 69 mm application and includes a forged piston made in Germany, a wrist pin bearing, and the required top end gaskets and exhaust sealing components. Kit pricing includes a 10% discount compared with purchasing the items individually.

Features

• Complete top end kit
• Forged piston
• MOS2-coated piston to aid running-in
• Piston made in Germany
• Wrist pin bearing included
• Includes cylinder head gasket
• Includes cylinder base gasket
• Includes intake gasket
• Includes exhaust pipe gasket
• Includes two exhaust pipe O-rings
• Includes cylinder cover gaskets
• Kit price includes 10% discount over individual items

Specifications

• VintCo Part Number: KTK15-00
• Nominal piston size: 69 mm
• Piston diameter: 68.94 mm
• Piston clearance: 0.06 mm

Cross-Reference OEM Part Numbers

• Cylinder head gasket: 11004-1299
• Cylinder base gasket: 11060-1659
• Intake gasket: 11009-1941
• Exhaust pipe gasket: 11009-1995
• Exhaust pipe O-rings: 670E3039
• Cylinder cover gasket: 11060-1629
• Cylinder cover gasket: 11060-1628
• Cylinder cover gasket: 11009-1993
• Cylinder cover gasket: 11060-1627

Vehicle Fitments

• 1997 Kawasaki KDX220
• 1998 Kawasaki KDX220
• 1999 Kawasaki KDX220
• 2000 Kawasaki KDX220
• 2001 Kawasaki KDX220
• 2002 Kawasaki KDX220
• 2003 Kawasaki KDX220
• 2004 Kawasaki KDX220
• 2005 Kawasaki KDX220
