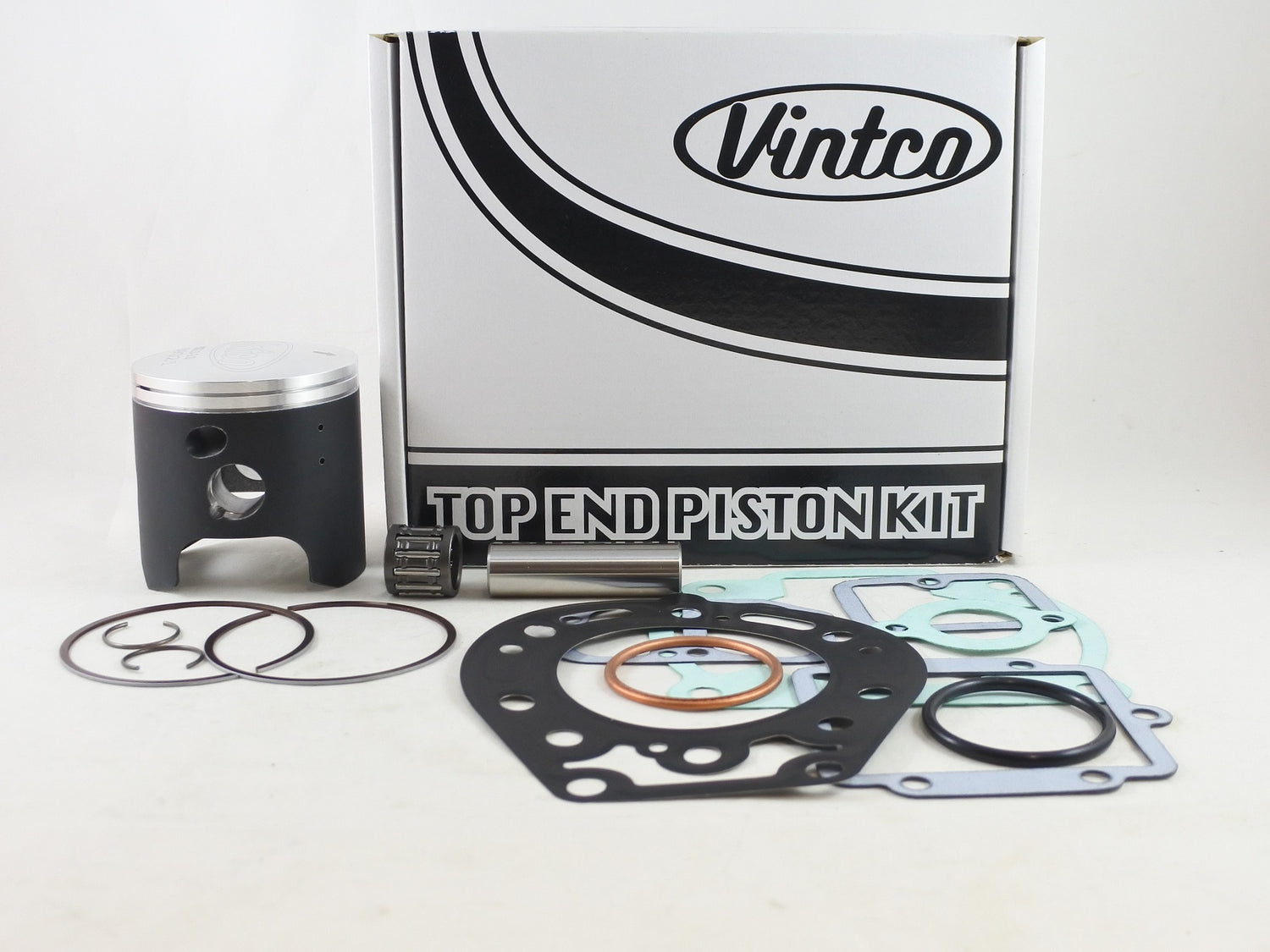

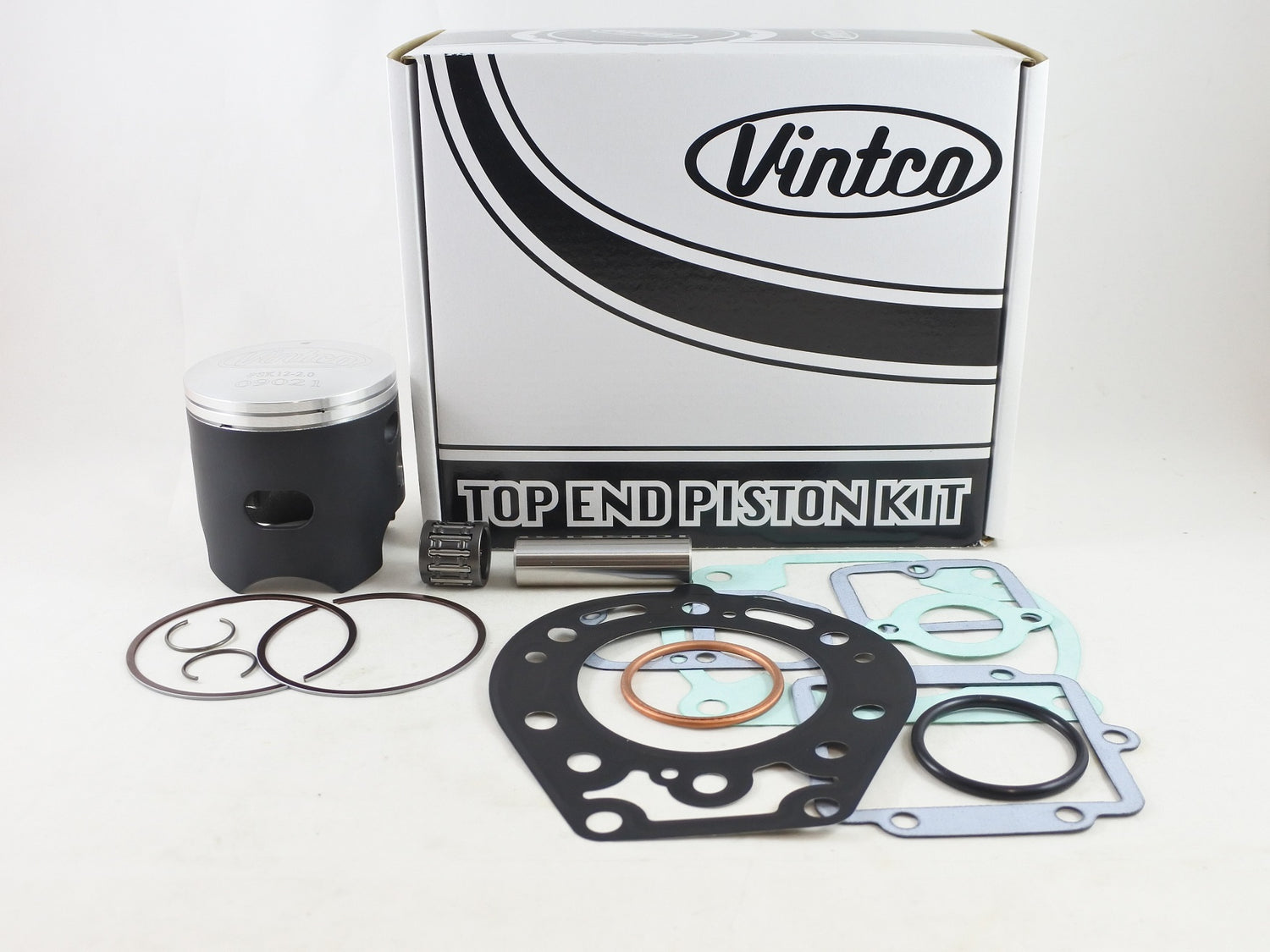

VintCo top end piston kit KTK14-2.0 is a 68 mm, 2.0 mm oversize kit for 1995-2006 Kawasaki KDX200 models. It is intended for top end service work and includes the piston, required gaskets, exhaust pipe O-rings and a wrist pin bearing. Kit pricing reflects a 10% reduction compared with purchasing the components individually.

Features

• Top end piston kit for engine service and rebuild work
• Includes piston
• Includes cylinder head gasket
• Includes cylinder base gasket
• Includes intake gasket
• Includes exhaust pipe gasket
• Includes two exhaust pipe O-rings
• Includes cylinder cover gaskets
• Includes wrist pin bearing

Specifications

• VintCo Part Number: KTK14-2.0
• Product type: Top End Piston Kit
• Piston size: 68 mm
• Oversize: 2.0 mm over
• Piston measurement: 67.94 mm
• Clearance: 0.06 mm
• Piston construction: Forged
• Piston coating: MOS2
• Country of manufacture: Germany

Cross-Reference OEM Part Numbers

• Cylinder Head Gasket: 11004-1298
• Cylinder Base Gasket: 11060-1659
• Intake Gasket: 11009-1941
• Exhaust Pipe Gasket: 11009-1995
• Exhaust Pipe O-Ring (x2): 670E3039
• Cylinder Cover Gasket: 11060-1629
• Cylinder Cover Gasket: 11060-1628
• Cylinder Cover Gasket: 11009-1993
• Cylinder Cover Gasket: 11060-1627

Vehicle Fitments

• 1995 Kawasaki KDX200
• 1996 Kawasaki KDX200
• 1997 Kawasaki KDX200
• 1998 Kawasaki KDX200
• 1999 Kawasaki KDX200
• 2000 Kawasaki KDX200
• 2001 Kawasaki KDX200
• 2002 Kawasaki KDX200
• 2003 Kawasaki KDX200
• 2004 Kawasaki KDX200
• 2005 Kawasaki KDX200
• 2006 Kawasaki KDX200
