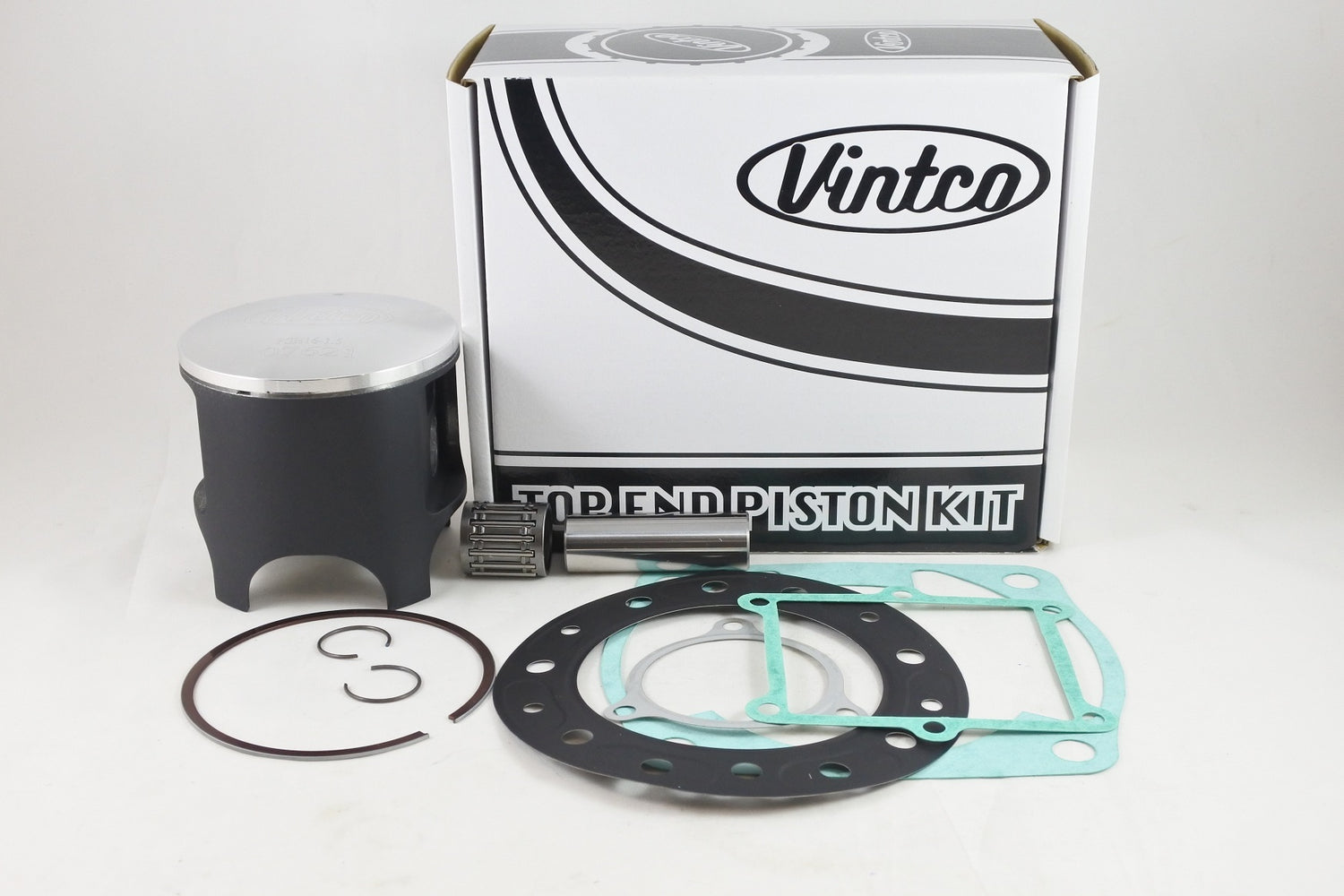

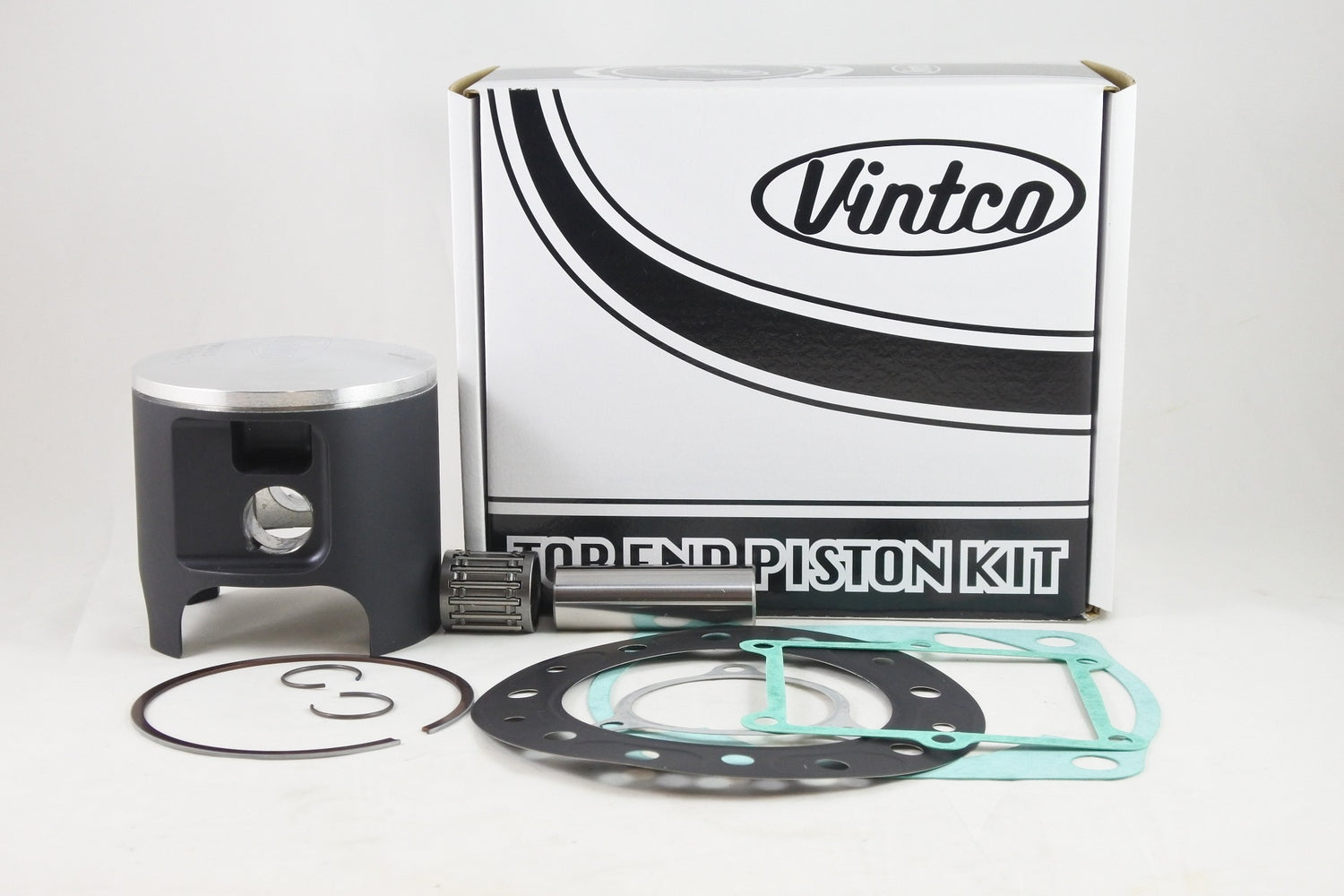

VintCo top end piston kit KTH33-1.5 is a complete rebuild kit for 1994-2001 Honda CR500 models. It includes a piston, rings, pin, clips, wrist pin bearing and a full top-end gasket set with head, base, intake and exhaust gaskets. The components are produced using modern materials and manufacturing methods for OEM-equivalent or better fit and performance, and this kit is supplied in a 90.5 mm nominal size with a 1.5 mm oversize.

Features

• Complete top-end rebuild kit
• Includes piston, rings, pin and clips
• Includes wrist pin bearing
• Includes head gasket
• Includes base gasket
• Includes intake gasket
• Includes exhaust pipe gasket
• Designed for 1994-2001 Honda CR500 applications
• Components manufactured for OEM-equivalent or better fit and performance
• Kit price represents a 10% saving compared with purchasing the items individually
• Additional size options are available

Specifications

• VintCo Part Number: KTH33-1.5
• Product Type: Top End Piston Kit
• Piston construction: Forged
• Piston coating: MOS2
• Country of manufacture: Germany
• Nominal size: 90.5 mm
• Piston diameter: 90.42 mm
• Oversize: +1.5 mm
• Piston clearance: 0.06 mm

Cross-Reference OEM Part Numbers

• Head gasket: 12254-ML3-680
• Base gasket: 12191-MAC-680
• Intake gasket: 14132-MAC-680
• Exhaust pipe gasket: 18291-ML3-791

Vehicle Fitments

• 1994 Honda CR500
• 1995 Honda CR500
• 1996 Honda CR500
• 1997 Honda CR500
• 1998 Honda CR500
• 1999 Honda CR500
• 2000 Honda CR500
• 2001 Honda CR500
