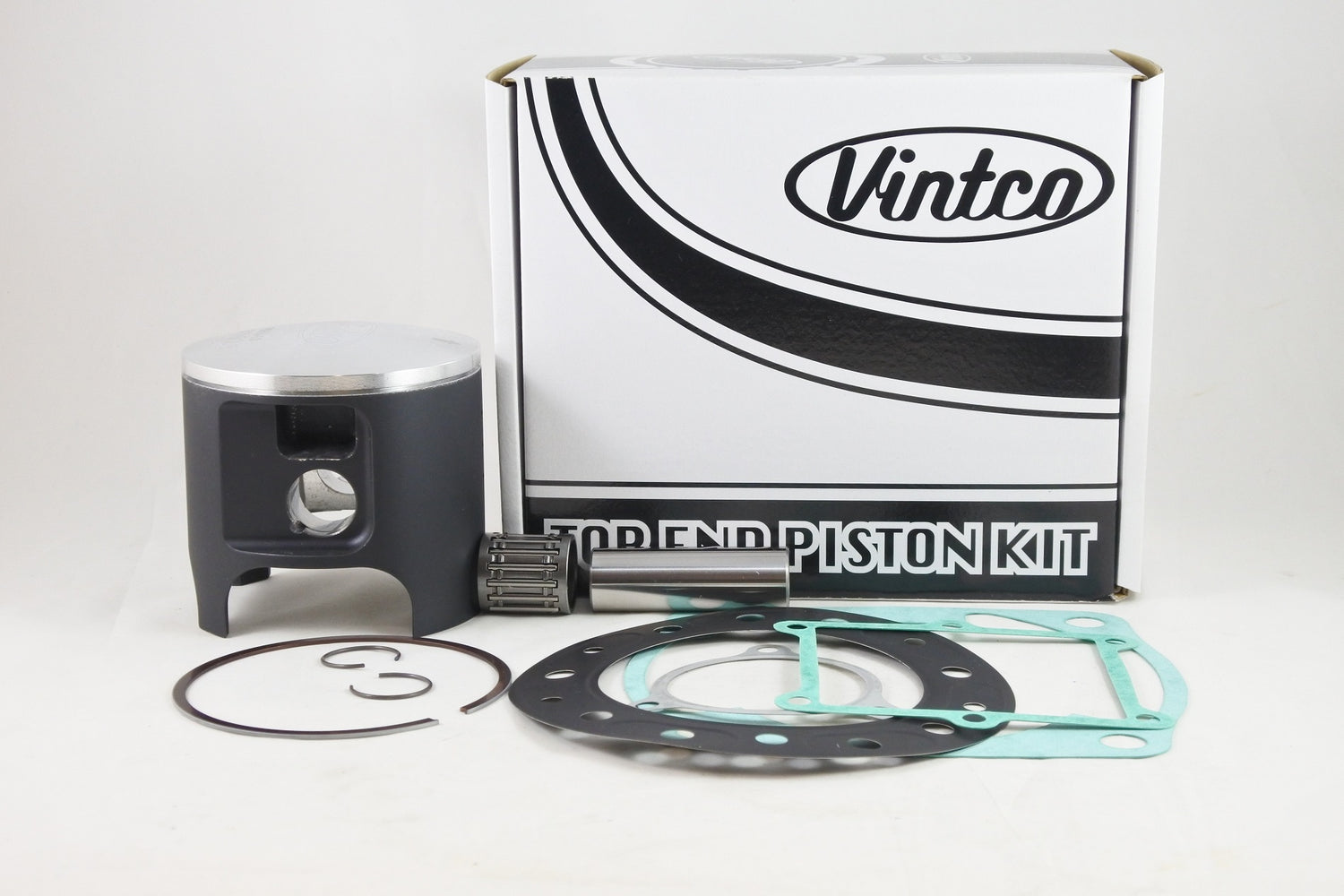

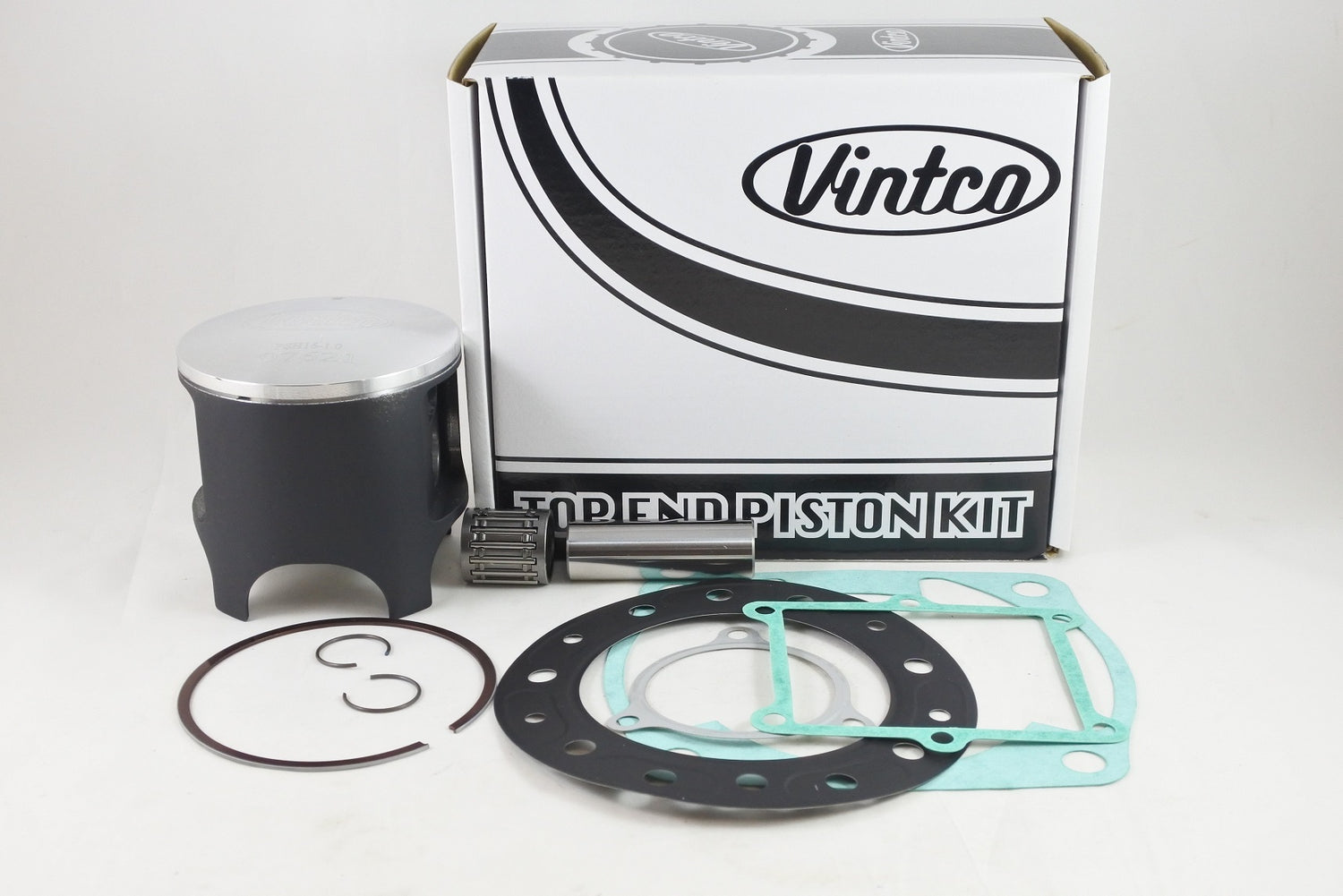

This VintCo top end piston kit is a complete rebuild set for 1994-2001 Honda CR500 models in the 90.0 mm (+1.0 mm over) size. It includes a piston kit with piston, rings, pin and clips, a wrist pin bearing, and a full top-end gasket set comprising the head, base, intake and exhaust gaskets. The components are produced using modern materials and manufacturing techniques and are designed to provide OEM-equivalent fit and performance.

Features

• Complete top-end rebuild kit
• Includes piston, rings, pin and clips
• Includes wrist pin bearing
• Includes head gasket, base gasket, intake gasket and exhaust pipe gasket
• OEM part numbers supplied for exact fit verification
• Kit pricing is 10% lower than purchasing the components individually
• Additional size options available

Specifications

• VintCo Part Number: KTH33-1.0
• Item category: Top End Piston Kits
• Piston construction: Forged
• Piston coating: MOS2
• Country of manufacture: Germany
• Nominal size: 90.0 mm
• Oversize: +1.0 mm
• Piston diameter: 89.92 mm
• Piston clearance: 0.06 mm

Cross-Reference OEM Part Numbers

• Head gasket: 12254-ML3-680
• Base gasket: 12191-MAC-680
• Intake gasket: 14132-MAC-680
• Exhaust pipe gasket: 18291-ML3-791

Vehicle Fitments

• 1994 Honda CR500
• 1995 Honda CR500
• 1996 Honda CR500
• 1997 Honda CR500
• 1998 Honda CR500
• 1999 Honda CR500
• 2000 Honda CR500
• 2001 Honda CR500
