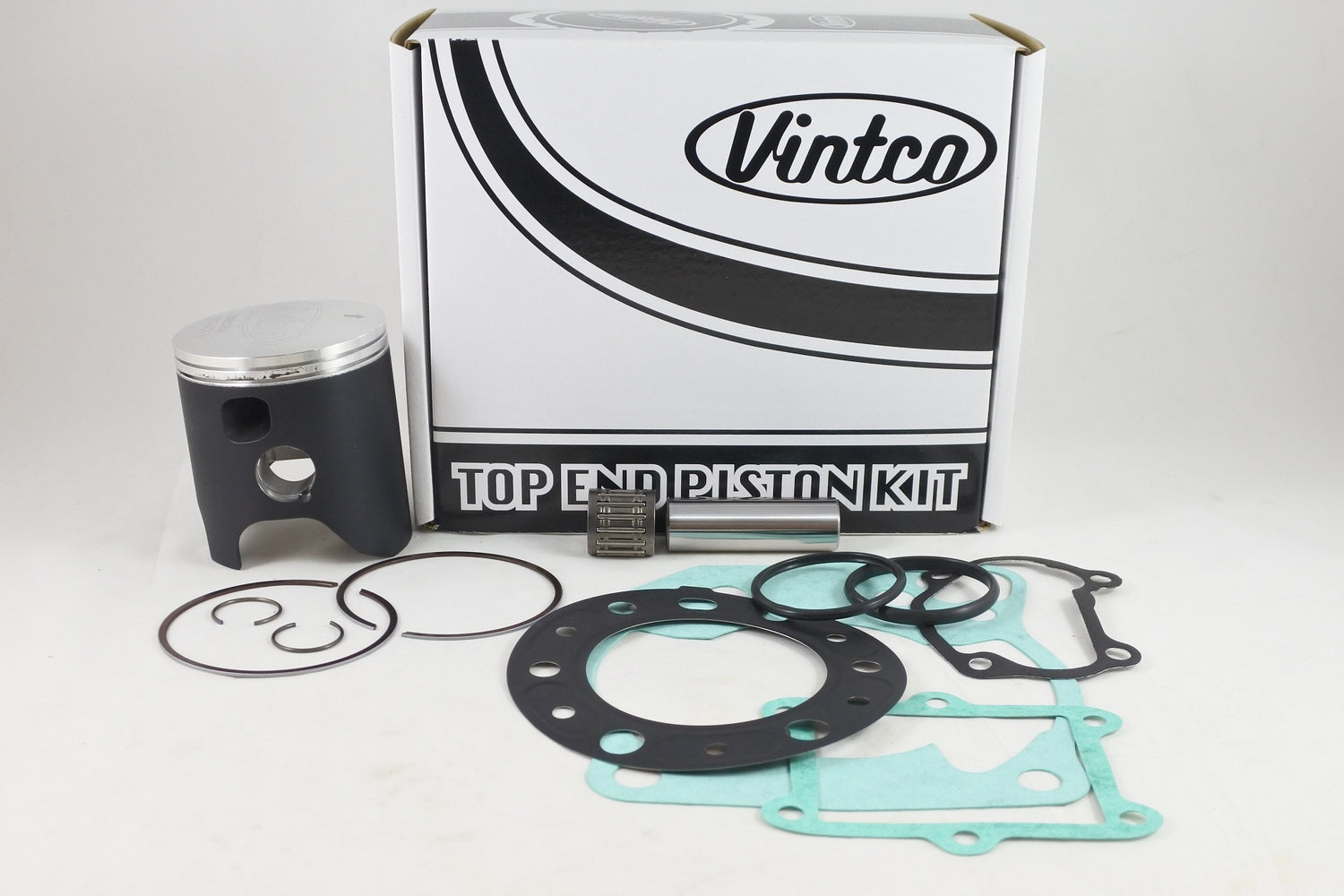

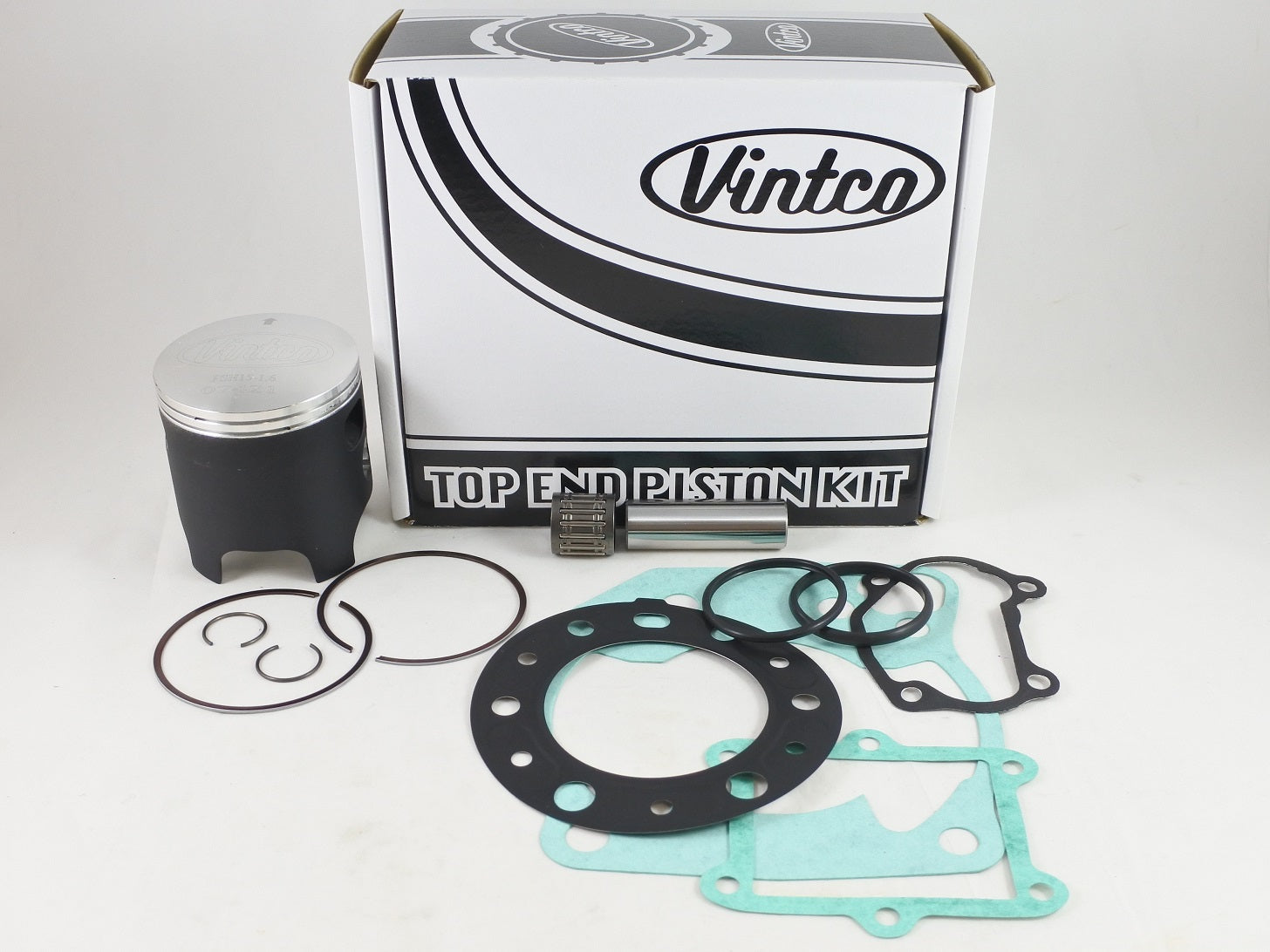

VintCo top end piston kit KTH27-1.6 is a complete rebuild kit for Honda CR250 models from 1992 to 1996, supplied with a forged 68mm nominal piston in +1.6mm oversize, rings, wrist pin, clips, wrist pin bearing and a full top-end gasket set. It is intended for top-end rebuild work and is manufactured using modern materials and production methods for OEM-equivalent fitment and performance. Kit pricing includes a 10% saving compared with purchasing the components individually, and additional size options are available.

Features

• Complete top end rebuild kit
• Includes piston, rings, wrist pin and clips
• Includes wrist pin bearing
• Includes top-end gasket set
• Gasket set includes head gasket, base gasket, intake gasket, power valve gasket and exhaust gasket
• Intended for top-end rebuilds
• Designed for OEM-equivalent fitment and performance
• Kit pricing includes a 10% saving compared with purchasing parts individually
• Additional size options available

Specifications

• VintCo Part Number: KTH27-1.6
• Product type: Top end piston kit
• Piston construction: Forged
• Piston origin: Made in Germany
• Piston coating: MOS2 break-in coating
• Nominal piston size: 68mm
• Piston diameter: 67.94mm
• Oversize: +1.6mm
• Clearance: 0.06mm

Cross-Reference OEM Part Numbers

• Head gasket: 12254-KZ3-860
• Base gasket: 12191-KZ3-880
• Intake gasket: 14132-KAE-000
• Exhaust pipe gasket: 91304-KZ3-890
• Right power valve gasket: 12108-KZ3-880

Vehicle Fitments

• 1992 Honda CR250
• 1993 Honda CR250
• 1994 Honda CR250
• 1995 Honda CR250
• 1996 Honda CR250
