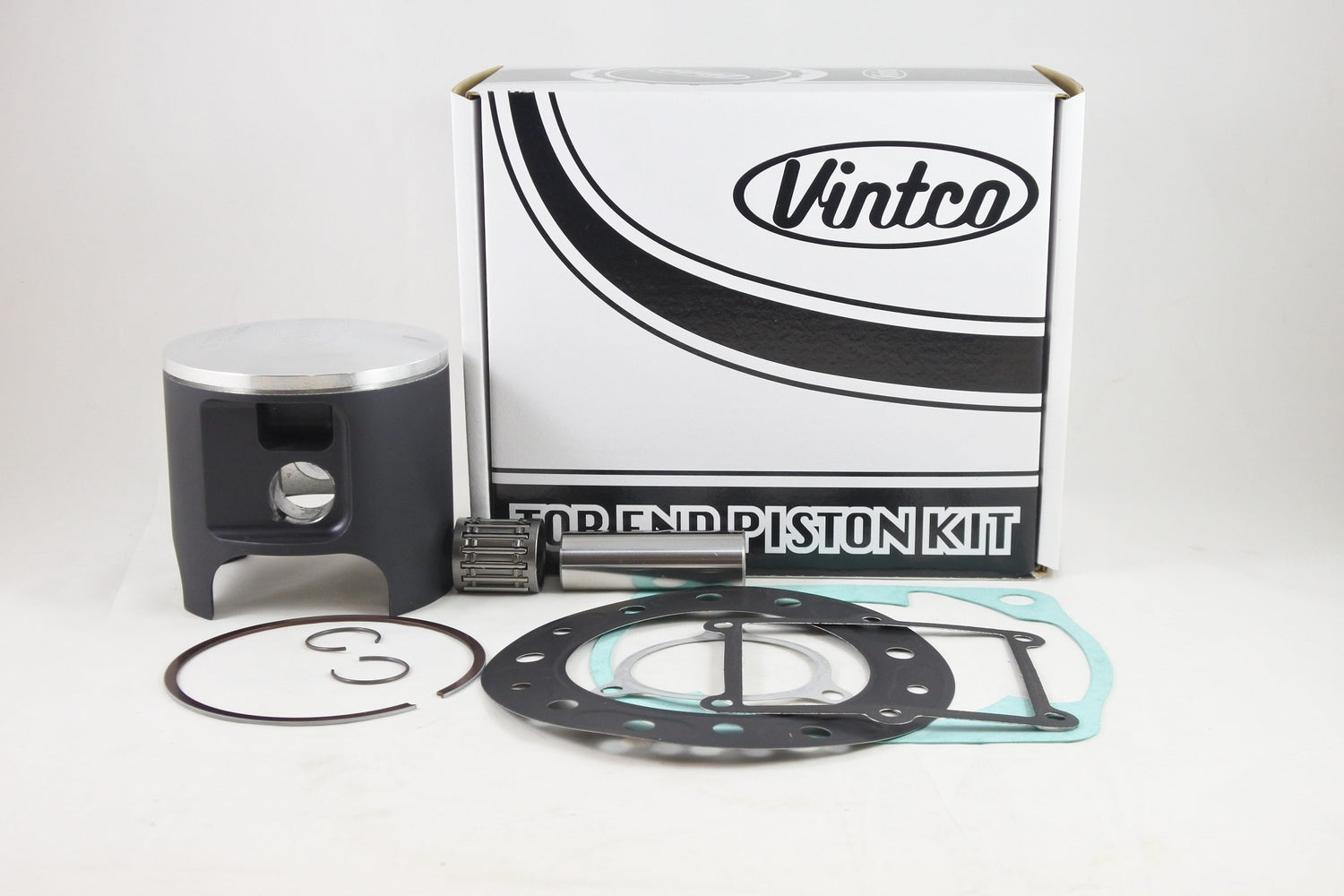

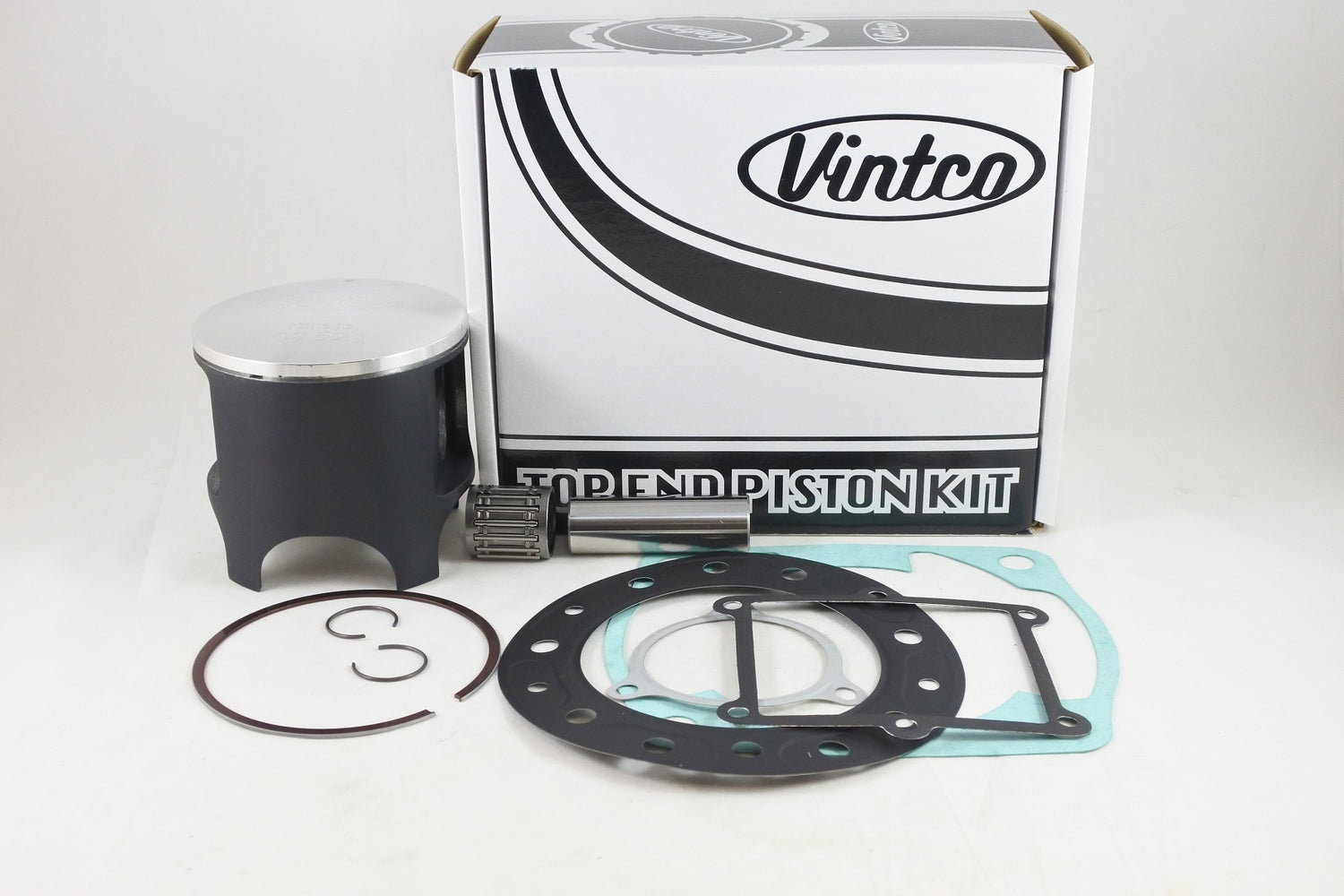

Complete top-end piston kit for 1992-1993 Honda CR500 models, supplied with the components required for a top-end rebuild. The kit includes a VintCo piston kit with piston, rings, pin and clips, a top-end bearing, and a full top-end gasket set comprising head, base, intake and exhaust gaskets. Components are produced using modern materials and manufacturing methods for OEM-level or better fitment and performance. This kit is for the 90.5 mm (+1.5 mm oversize) application, and additional size options are also available.

Features

• Complete top-end rebuild kit
• Includes piston, rings, pin and clips
• Includes top-end bearing
• Includes full top-end gasket kit
• Head gasket included
• Base gasket included
• Intake gasket included
• Exhaust gasket included
• Intended for 1992-1993 Honda CR500 models
• Kit price includes a 10% saving compared with purchasing the components individually

Specifications

• VintCo Part Number: KTH32-1.5
• Piston diameter: 90.42 mm
• Oversize: +1.5 mm
• Clearance: 0.06 mm
• Forged piston
• Made in Germany
• MOS2-coated for break-in

Cross-Reference OEM Part Numbers

• Head gasket: 12254-ML3-680
• Base gasket: 12191-MAC-680
• Intake gasket: 14132-ML3-790
• Exhaust pipe gasket: 18291-ML3-791

Vehicle Fitments

• 1992 Honda CR500
• 1993 Honda CR500
