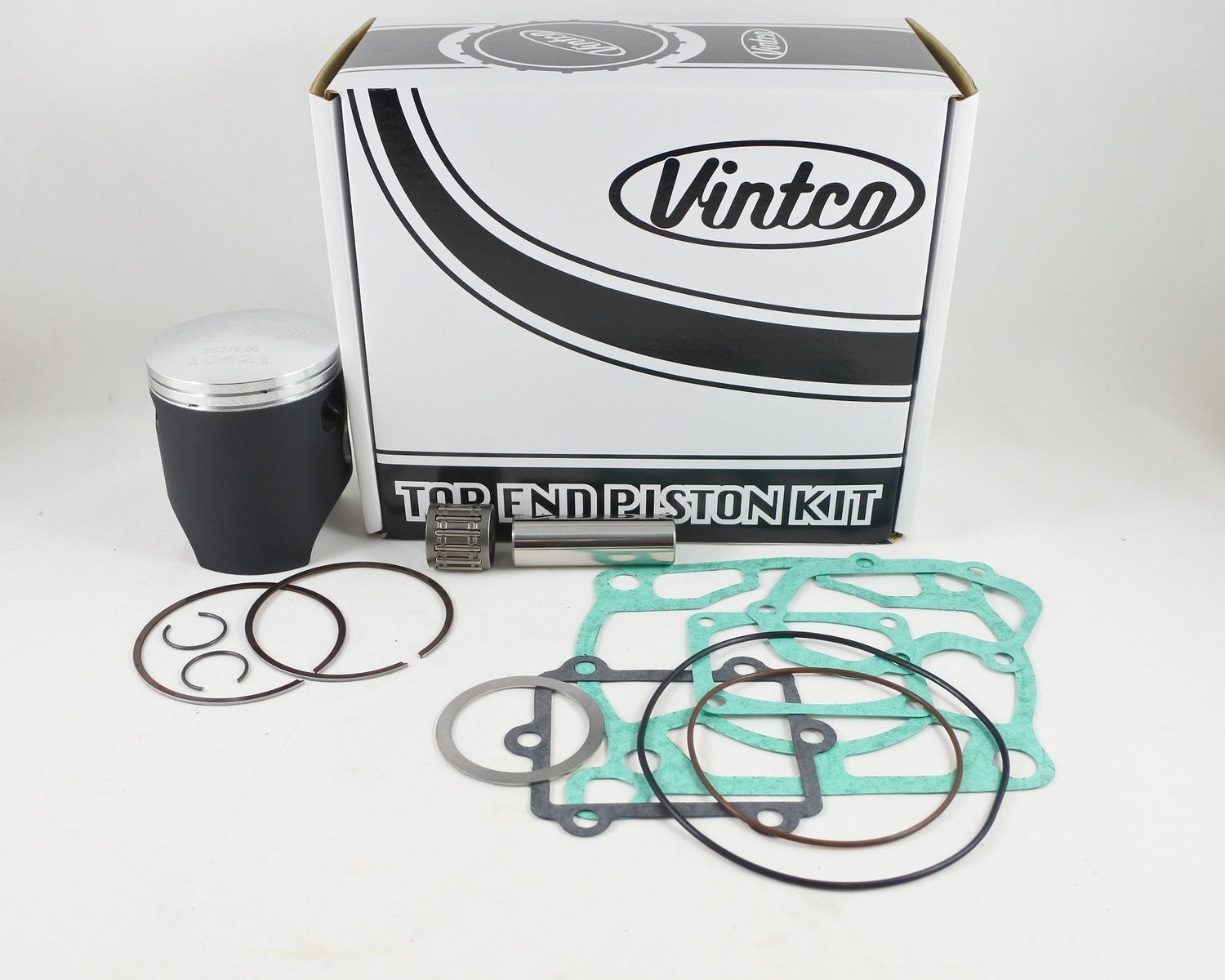

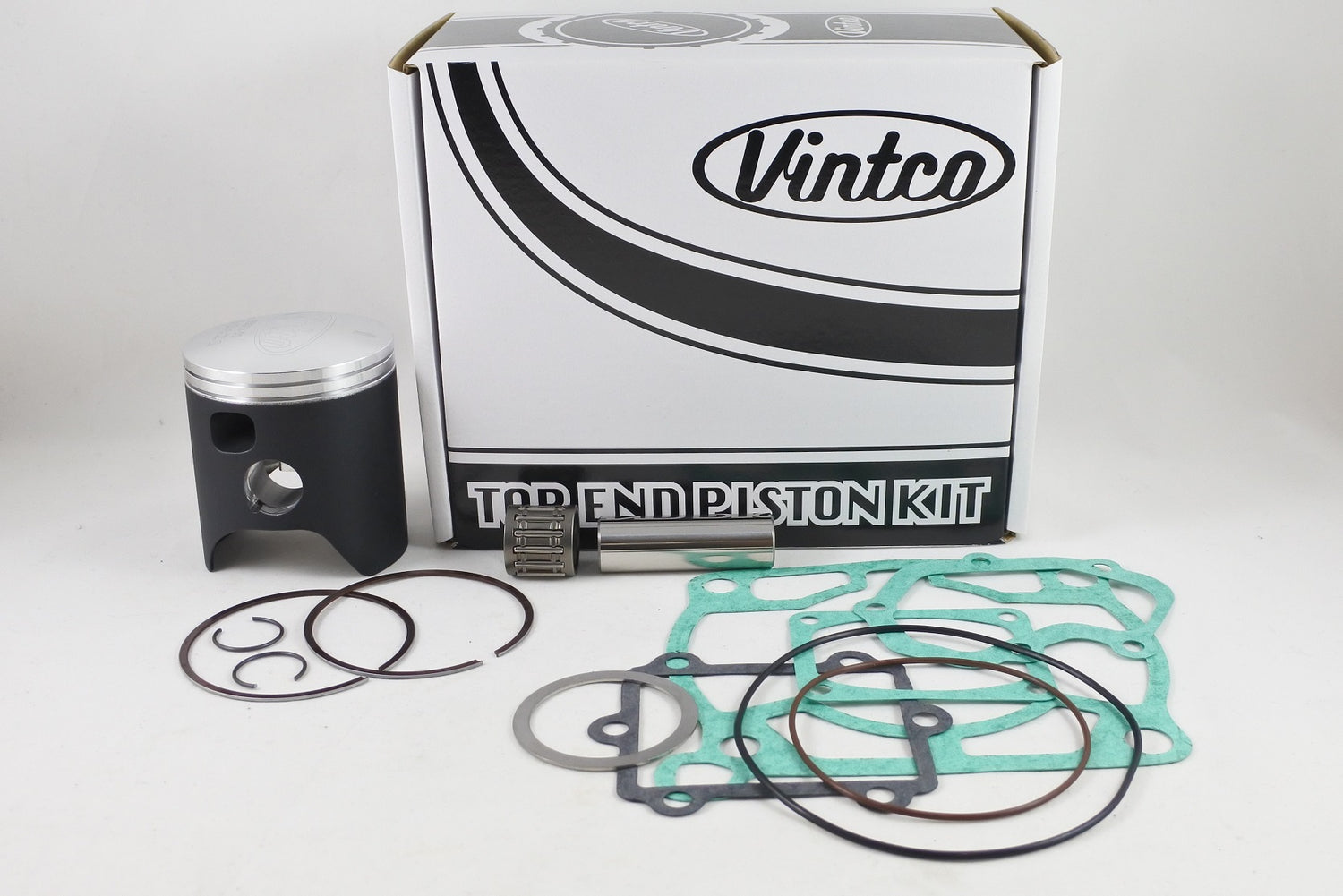

VintCo KTS23-00 is a top end piston kit for 1991-1995 Suzuki RM250 models. This standard-bore kit is intended for complete top end rebuild work and includes a VintCo piston kit with piston, rings, pin and clips, a wrist pin bearing, and a full top end gasket kit. The components are manufactured using modern materials and processes for OEM-equivalent or better fitment and performance. OEM part numbers are included for reference, the kit price is 10% lower than purchasing the components individually, and other size options are available.

Features

• Complete top end rebuild kit
• Fits 1991-1995 Suzuki RM250 models
• Includes piston, rings, pin and clips
• Includes wrist pin bearing
• Includes full top end gasket kit
• Includes cylinder base, intake, cylinder cover and exhaust pipe gaskets
• Forged piston
• MoS2-coated piston for running-in
• OEM part numbers supplied for exact fitment reference
• Kit pricing is 10% lower than buying the components individually
• Other size options available

Specifications

• VintCo Part Number: KTS23-00
• Standard bore: 67.02 mm
• Piston size listed: 71.44 mm
• Piston clearance: 0.06 mm
• Piston manufacture: Germany

Cross-Reference OEM Part Numbers

• Cylinder Base Gasket: 11147-28C20
• Cylinder Base Gasket: 11148-28C20
• Cylinder Base Gasket: 11241-28C11
• Intake Gasket: 13156-01C10
• Cylinder Cover Gasket: 11233-28C21
• Cylinder Cover Gasket: 11238-05D01
• Exhaust Pipe Gasket: 14172-28C30

Vehicle Fitments

• 1991 Suzuki RM250
• 1992 Suzuki RM250
• 1993 Suzuki RM250
• 1994 Suzuki RM250
• 1995 Suzuki RM250
