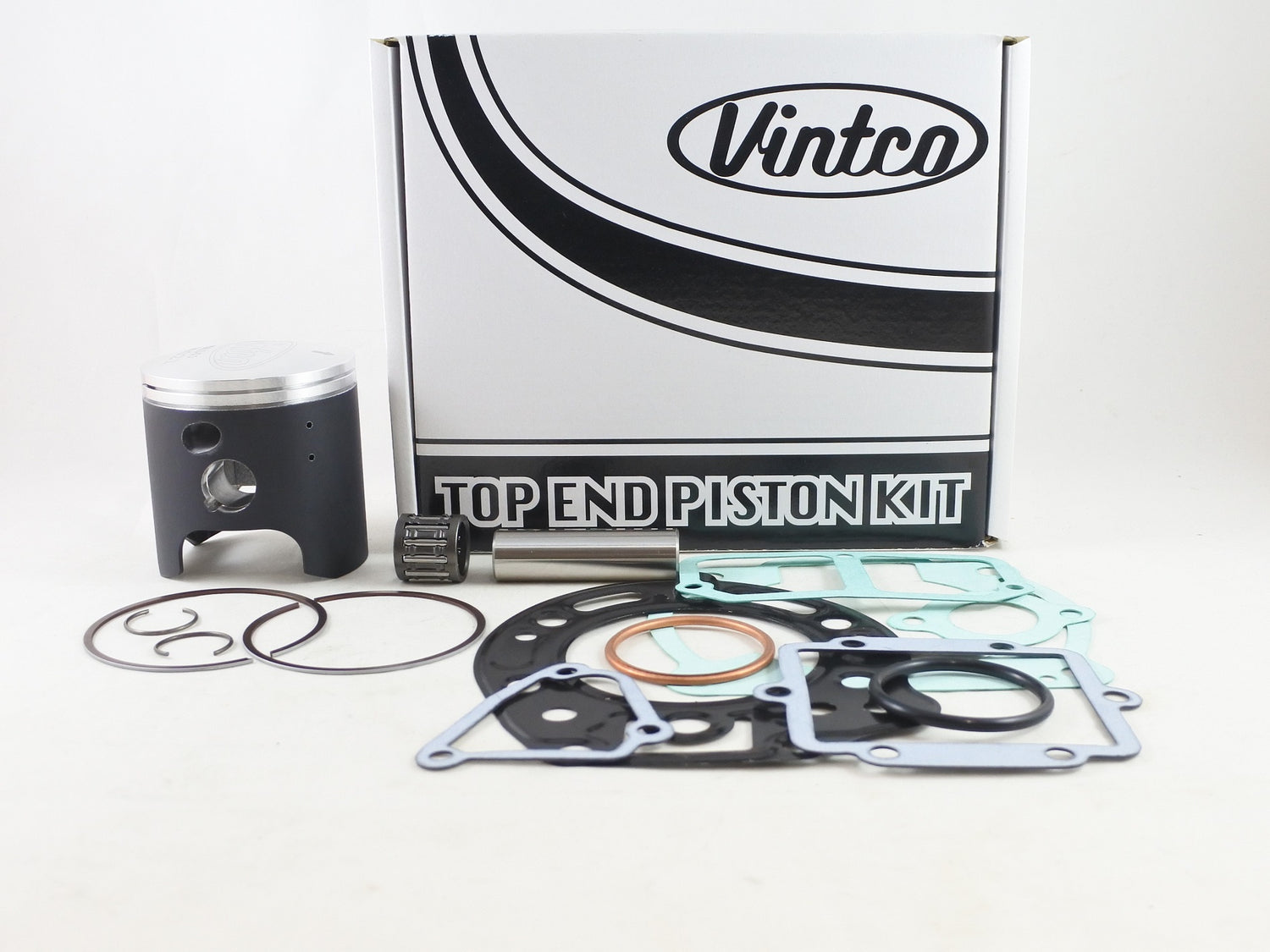

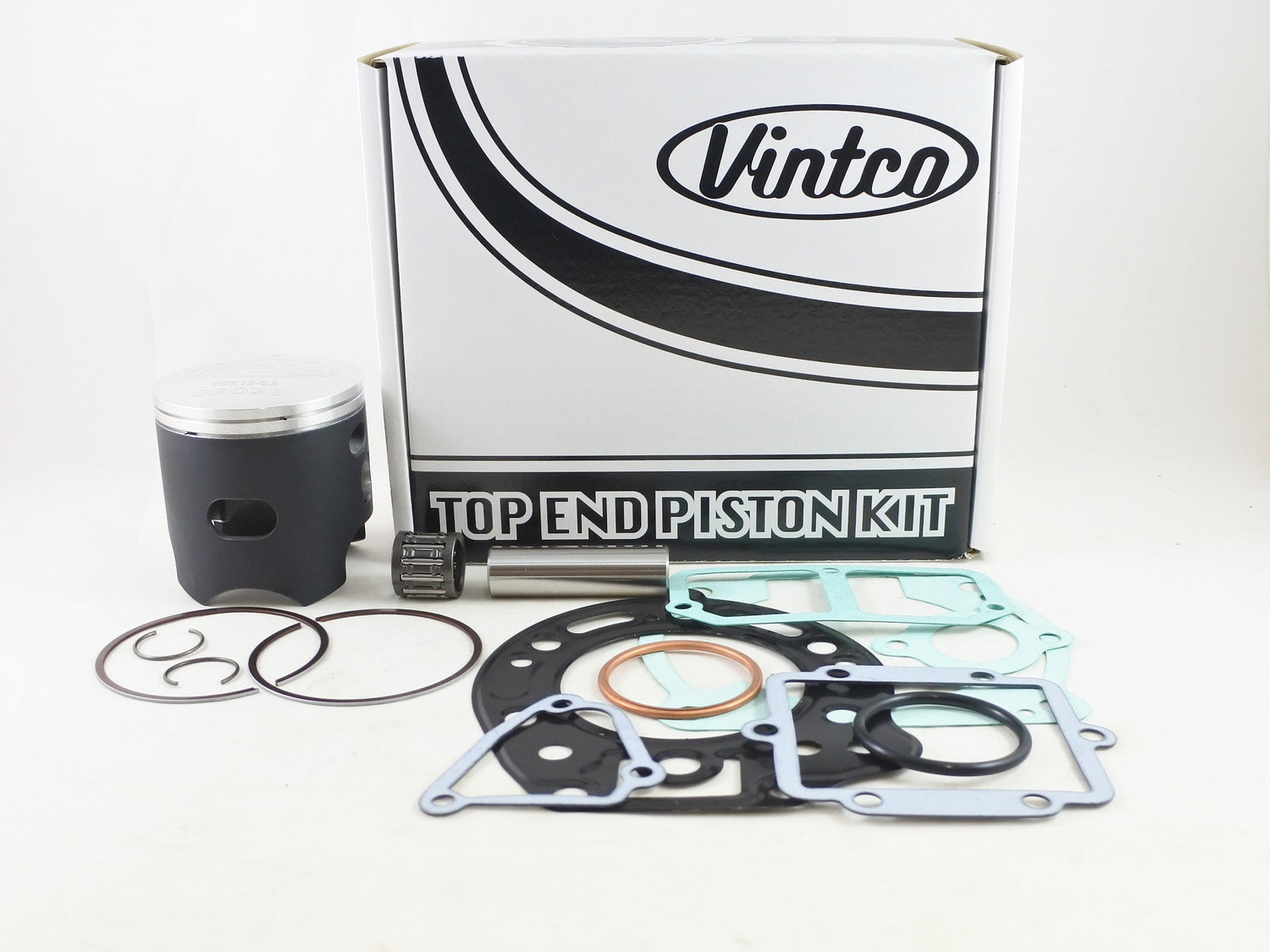

This top end piston kit is designed for 1989 to 1994 Kawasaki KDX200 models and includes a 66.5 mm, 0.5 mm oversize piston together with the associated top end gaskets, exhaust pipe O-rings and a wrist pin bearing. The kit pricing reflects a 10% reduction compared with purchasing the included items individually.

Features

• Complete top end piston kit for Kawasaki KDX200 models
• Suitable for top end rebuild work
• Includes piston, gasket set, exhaust pipe O-rings and wrist pin bearing
• MOS2-coated piston surface supports initial running-in

Specifications

• VintCo Part Number: KTK13-0.5
• Item Category: Top End Piston Kits
• Piston size: 66.5 mm
• Oversize: 0.5 mm over
• Piston measurement: 66.44 mm
• Clearance: 0.06 mm
• Piston construction: Forged
• Country of manufacture: Germany

Cross-Reference OEM Part Numbers

• Cylinder head gasket: OE# 11004-1189
• Cylinder base gasket: OE# 11060-1659
• Intake gasket: OE# 11009-1941
• Exhaust pipe gasket: OE# 11009-1995
• Exhaust pipe O-ring (x2): OE# 670E3039
• Cylinder cover gasket: OE# 11009-1934
• Cylinder cover gasket: OE# 11009-1938
• Cylinder cover gasket: OE# 11009-1993

Vehicle Fitments

• 1989 Kawasaki KDX200
• 1990 Kawasaki KDX200
• 1991 Kawasaki KDX200
• 1992 Kawasaki KDX200
• 1993 Kawasaki KDX200
• 1994 Kawasaki KDX200
