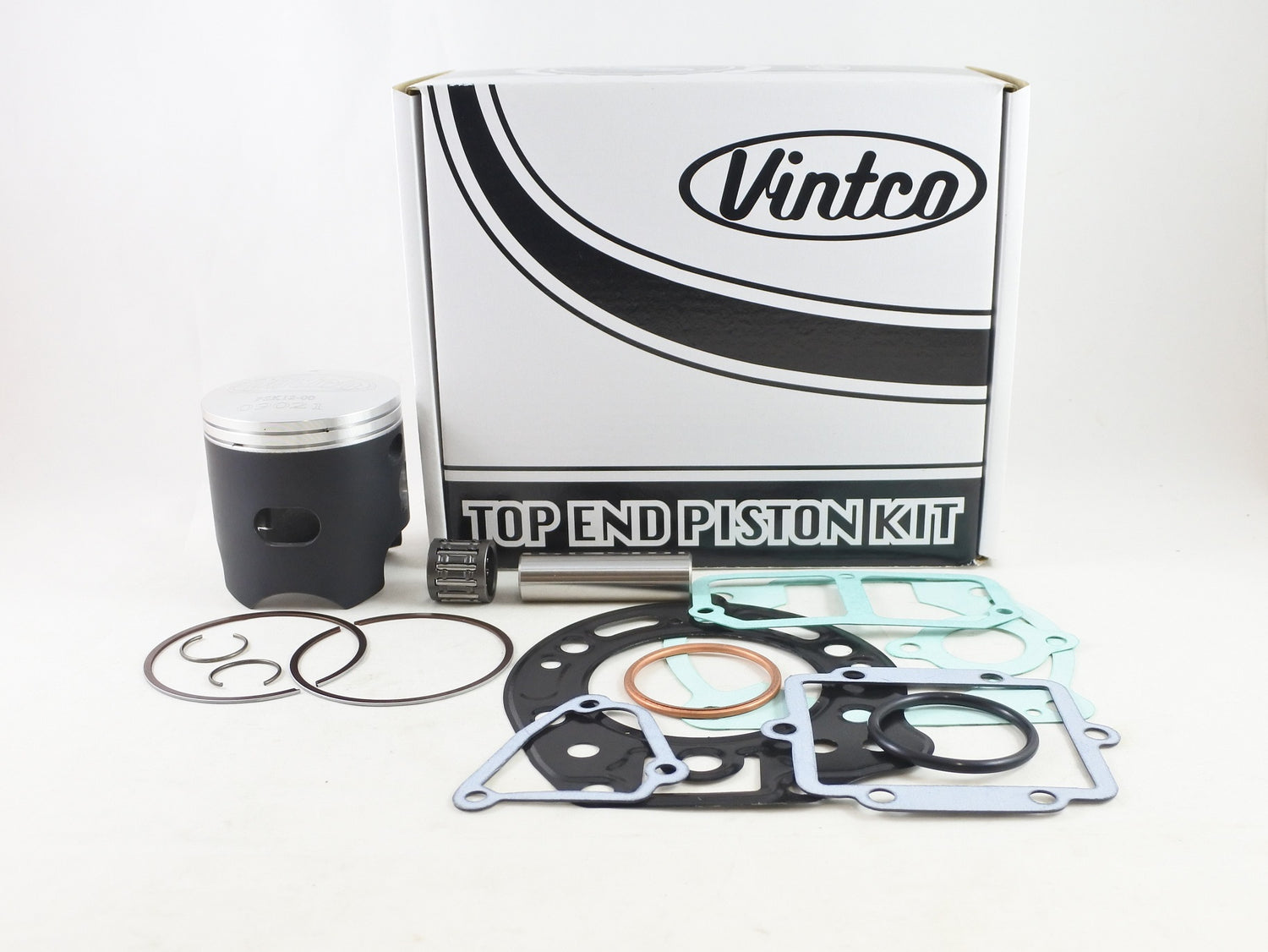

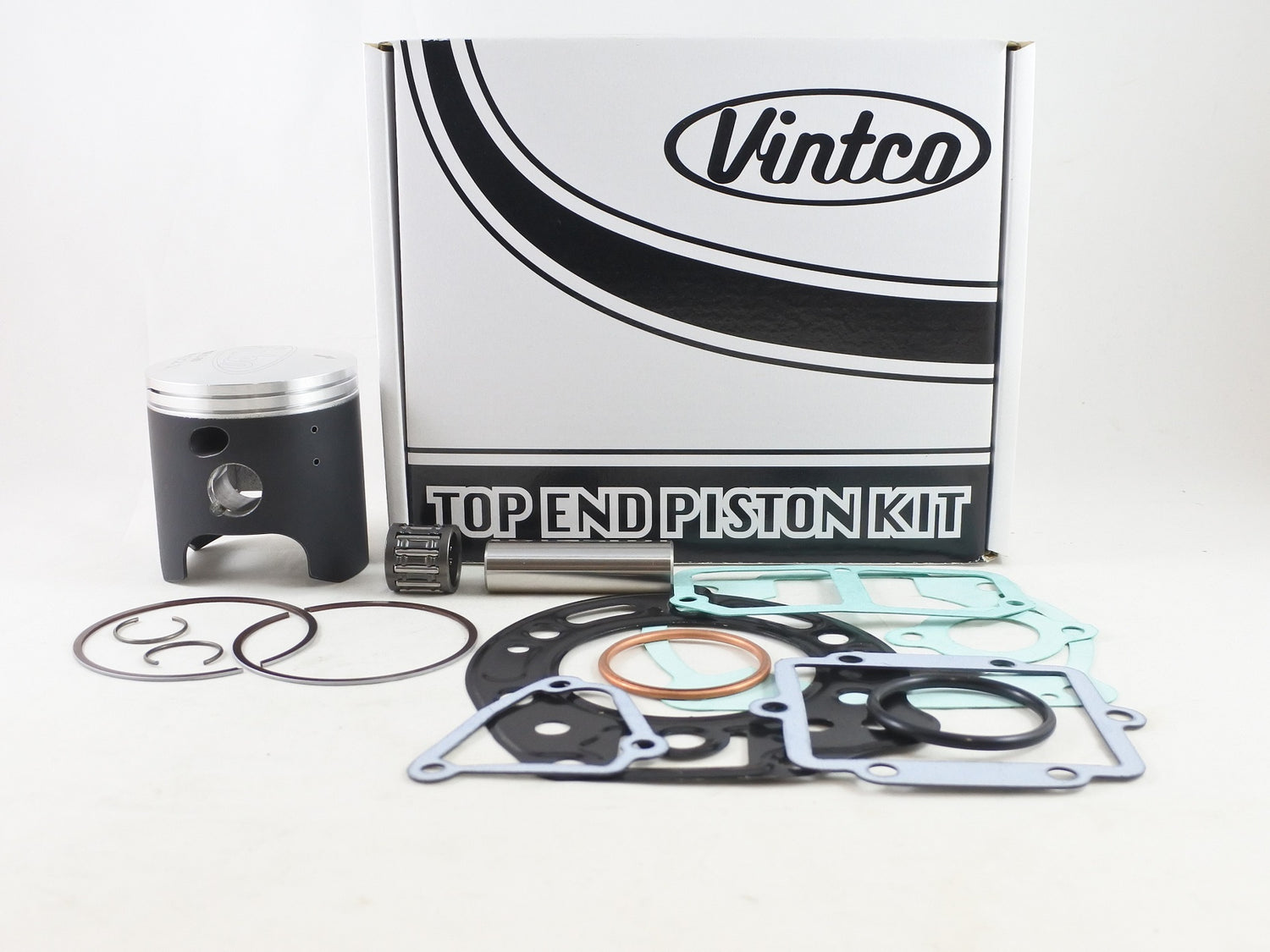

This top end piston kit is a standard-size service kit for 1989-1994 Kawasaki KDX200 models, supplying the main components required for top end reassembly in one package. It includes a forged piston, the associated gasket set, exhaust sealing components and a wrist pin bearing, with kit pricing set at 10% less than purchasing the items individually.

Features

• Complete top end kit for standard-size engine service
• Includes piston for top end rebuild work
• Includes cylinder head, cylinder base, intake, exhaust pipe and cylinder cover gaskets
• Includes exhaust pipe O-rings
• Includes wrist pin bearing

Specifications

• VintCo Part Number: KTK13-00
• Product type: Top end piston kit
• Standard piston size: 66.02 mm
• Piston measurement: 65.96 mm
• Piston clearance: 0.06 mm
• Piston construction: Forged
• Piston coating: MOS2, for break-in
• Country of manufacture: Germany
• Exhaust pipe O-ring quantity: 2

Cross-Reference OEM Part Numbers

• Cylinder head gasket: 11004-1189
• Cylinder base gasket: 11060-1659
• Intake gasket: 11009-1941
• Exhaust pipe gasket: 11009-1995
• Exhaust pipe O-ring: 670E3039
• Cylinder cover gasket: 11009-1934
• Cylinder cover gasket: 11009-1938
• Cylinder cover gasket: 11009-1993

Vehicle Fitments

• 1989 Kawasaki KDX200
• 1990 Kawasaki KDX200
• 1991 Kawasaki KDX200
• 1992 Kawasaki KDX200
• 1993 Kawasaki KDX200
• 1994 Kawasaki KDX200
