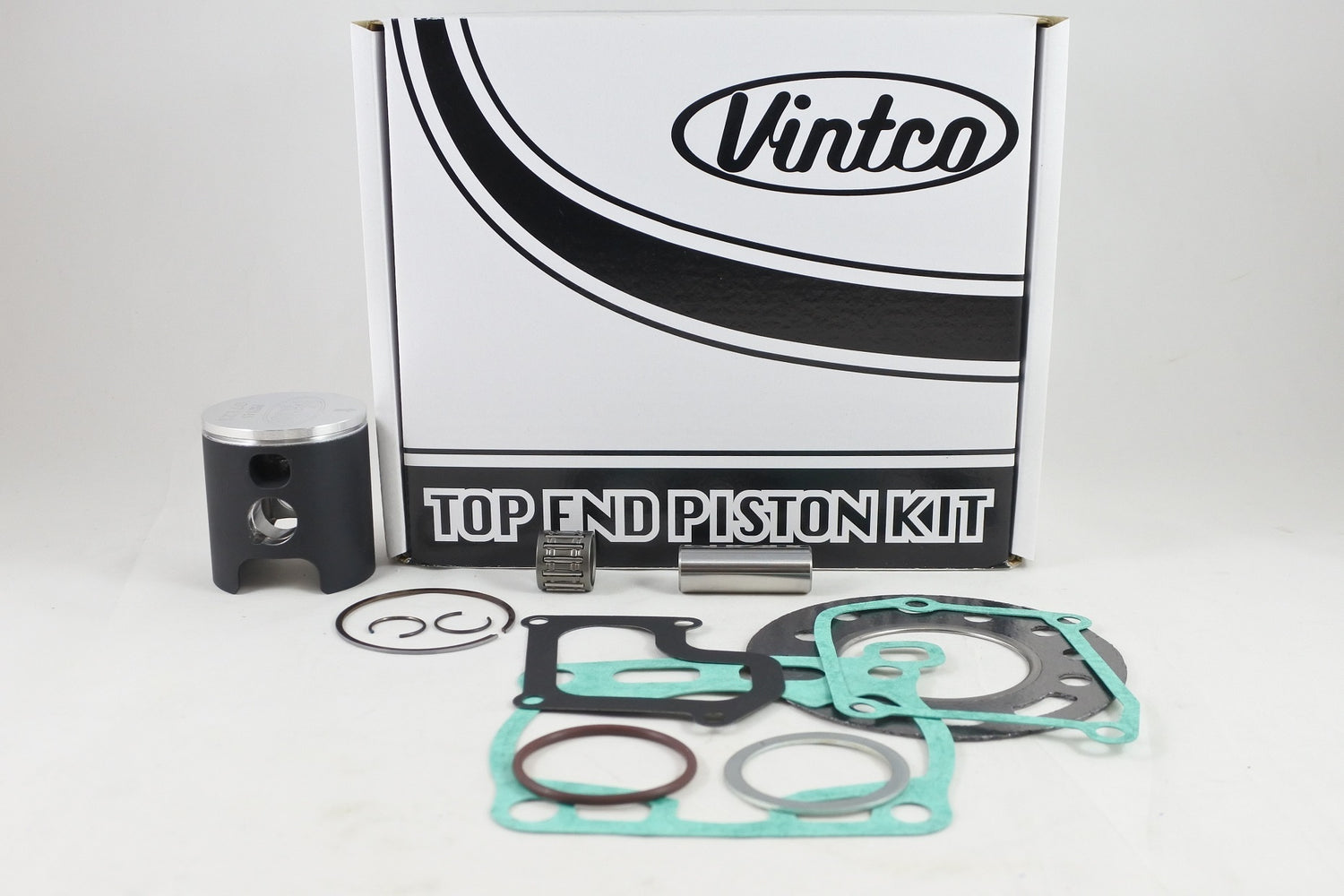

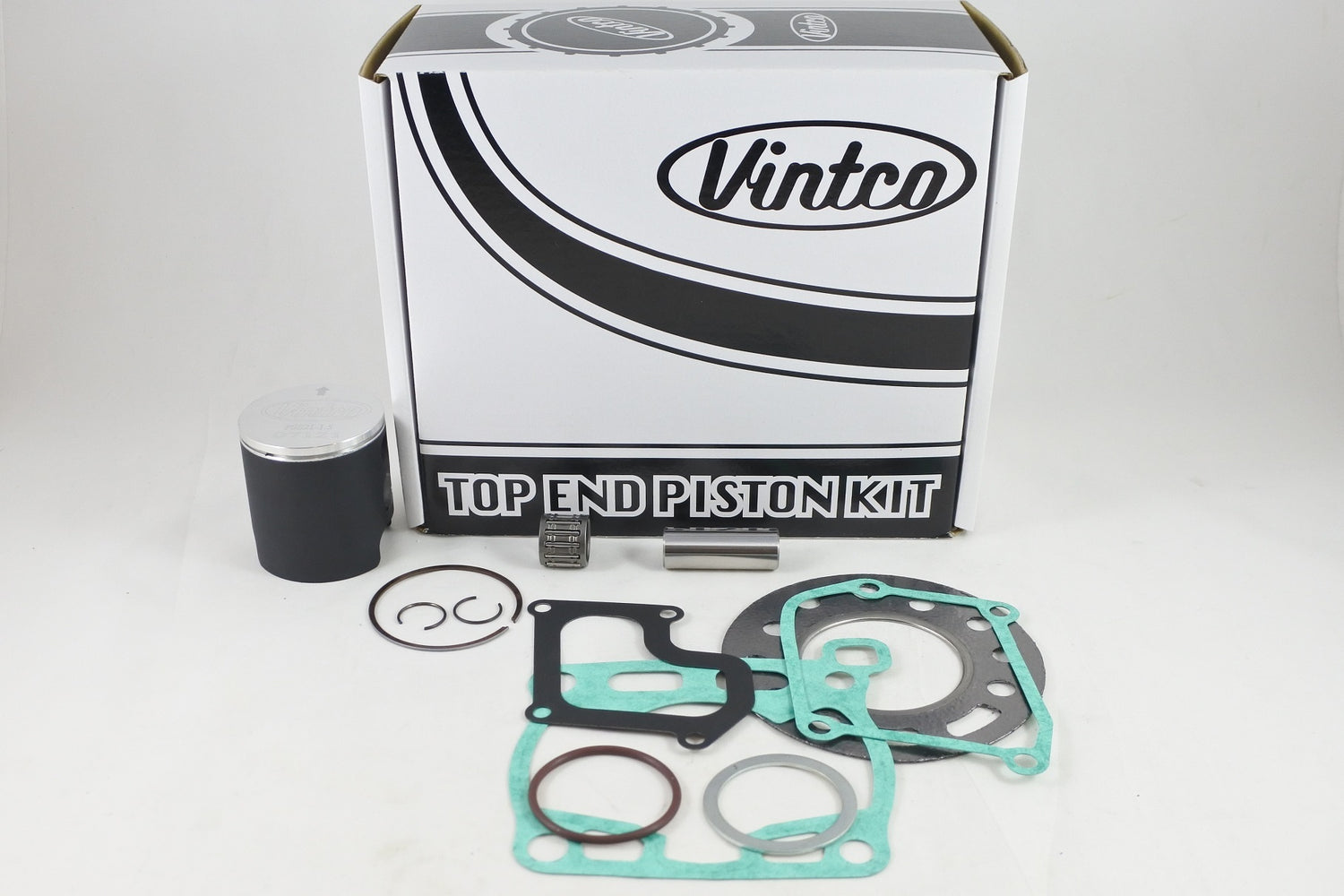

Top end piston kit for 1989-1990 Suzuki RM80 models, supplied as a complete top end service set with piston, gaskets and wrist pin bearing. The kit price includes a 10% reduction compared with purchasing the items individually, and it is intended for +1.5 mm over applications.

Features

• Complete top end kit
• Includes piston
• Includes cylinder head gasket
• Includes cylinder base gasket
• Includes two cylinder cover gaskets
• Includes two exhaust pipe gaskets
• Includes wrist pin bearing
• Piston coating supports running-in

Specifications

• VintCo Part Number: KTS14-1.5
• Piston diameter: 49.00 mm
• Oversize: +1.5 mm
• Piston clearance: 0.05 mm
• Piston construction: Forged
• Piston coating: MOS2
• Country of manufacture: Germany

Cross-Reference OEM Part Numbers

• Cylinder Head Gasket: 11141-02B60
• Cylinder Base Gasket: 11241-03B01
• Cylinder Cover Gasket: 11233-02B42
• Cylinder Cover Gasket: 11238-01B30-H17
• Exhaust Pipe Gasket: 14171-02B40
• Exhaust Pipe Gasket: 14172-02B40

Vehicle Fitments

• 1989 Suzuki RM80
• 1990 Suzuki RM80
