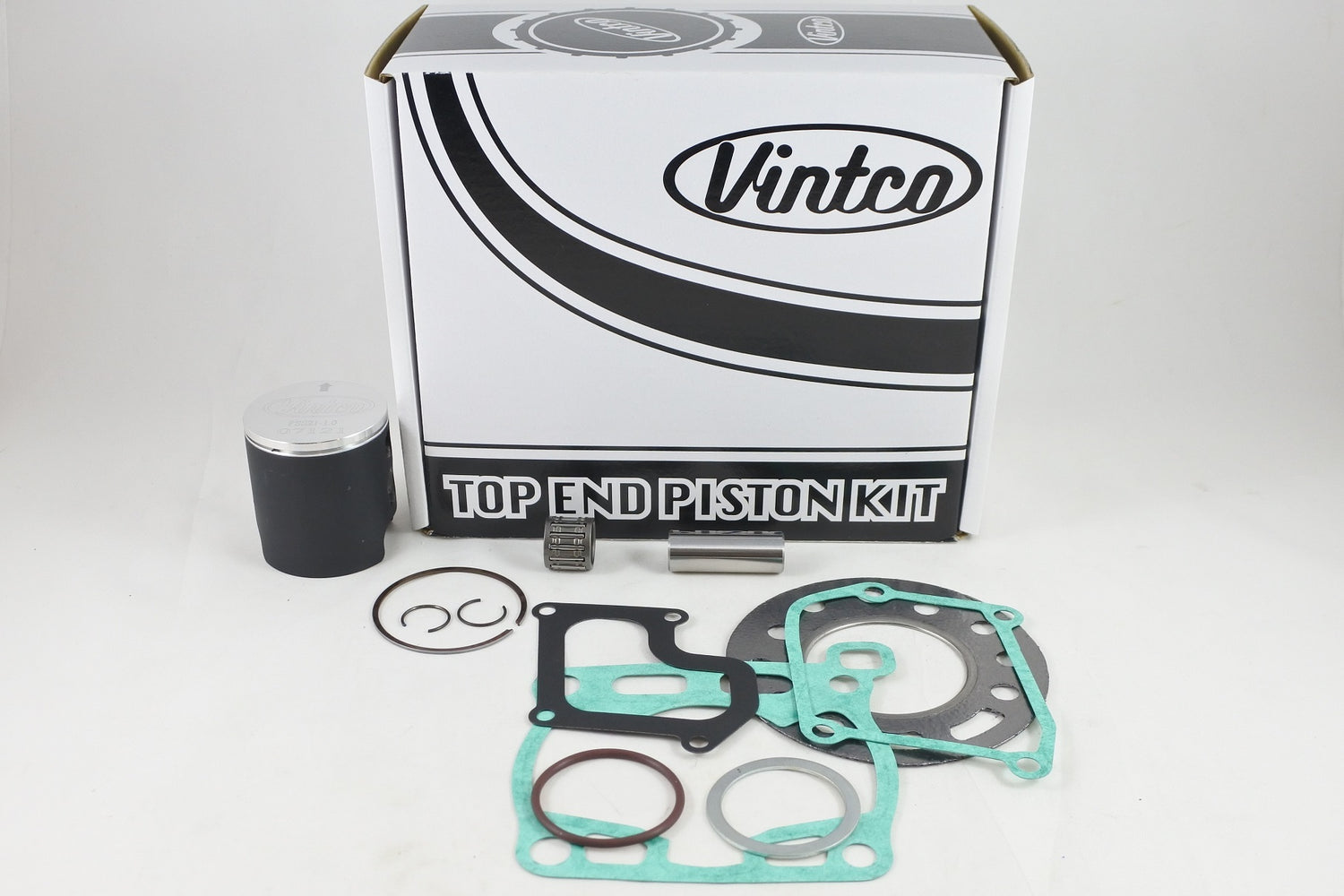

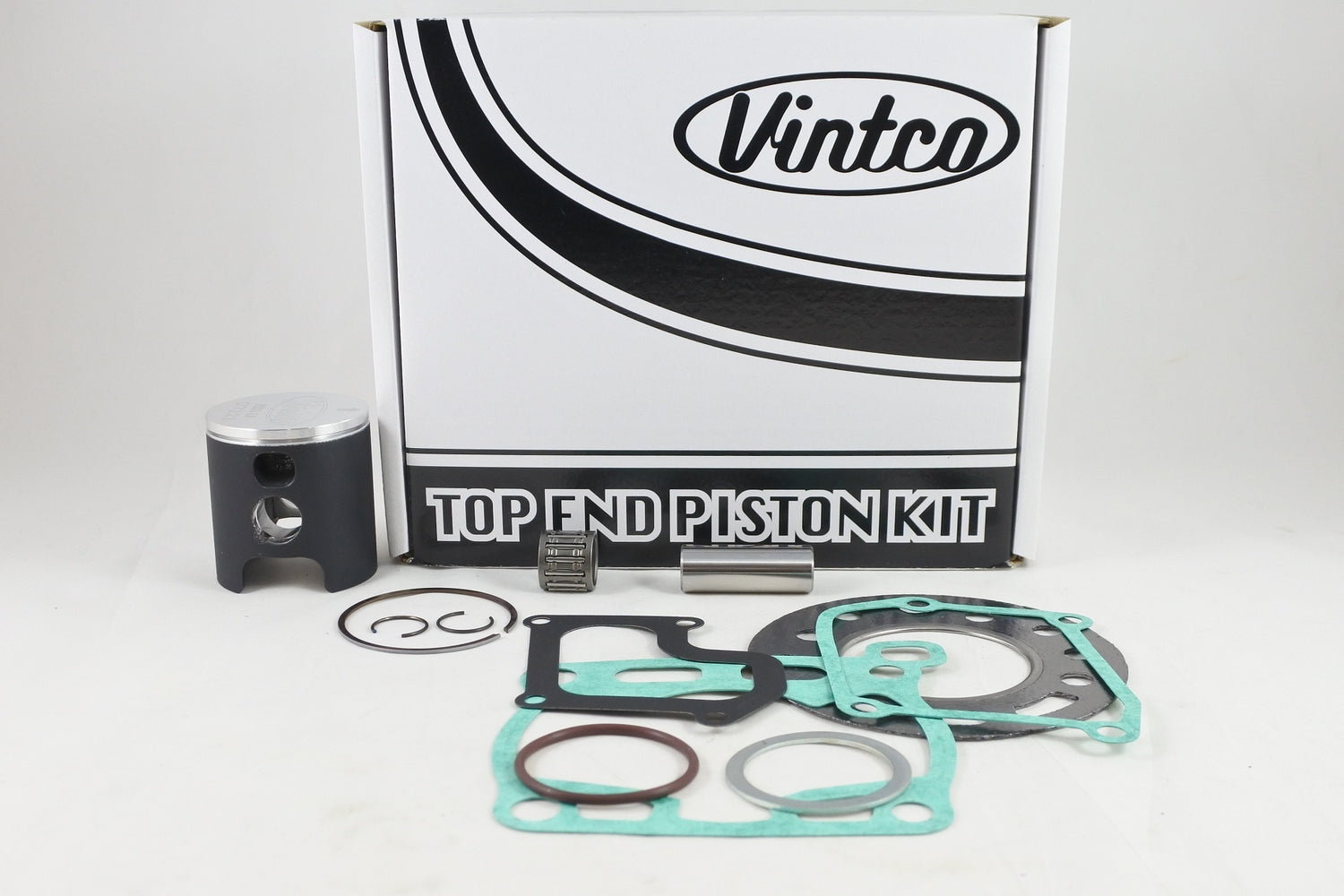

VintCo KTS14-1.0 is a top end piston kit for 1989-1990 Suzuki RM80 models, supplied as a package including a forged piston, cylinder and exhaust gaskets, and a wrist pin bearing. The kit is listed as 48.00 mm +1.0 mm over, with the piston specified at 48.5 mm and 0.05 mm clearance.

Features

• Complete top end piston kit for Suzuki RM80 applications
• Kit price includes a 10% discount compared with purchasing the items individually
• Forged piston
• Piston manufactured in Germany
• MOS2-coated piston for running-in
• Includes cylinder head gasket
• Includes cylinder base gasket
• Includes two cylinder cover gaskets
• Includes two exhaust pipe gaskets
• Includes wrist pin bearing

Specifications

• VintCo Part Number: KTS14-1.0
• Size designation: 48.00 mm +1.0 mm over
• Piston diameter: 48.5 mm
• Piston clearance: 0.05 mm

Cross-Reference OEM Part Numbers

• Cylinder head gasket: OE 11141-02B60
• Cylinder base gasket: OE 11241-03B01
• Cylinder cover gasket: OE 11233-02B42
• Cylinder cover gasket: OE 11238-01B30-H17
• Exhaust pipe gasket: OE 14171-02B40
• Exhaust pipe gasket: OE 14172-02B40

Vehicle Fitments

• 1989 Suzuki RM80
• 1990 Suzuki RM80
