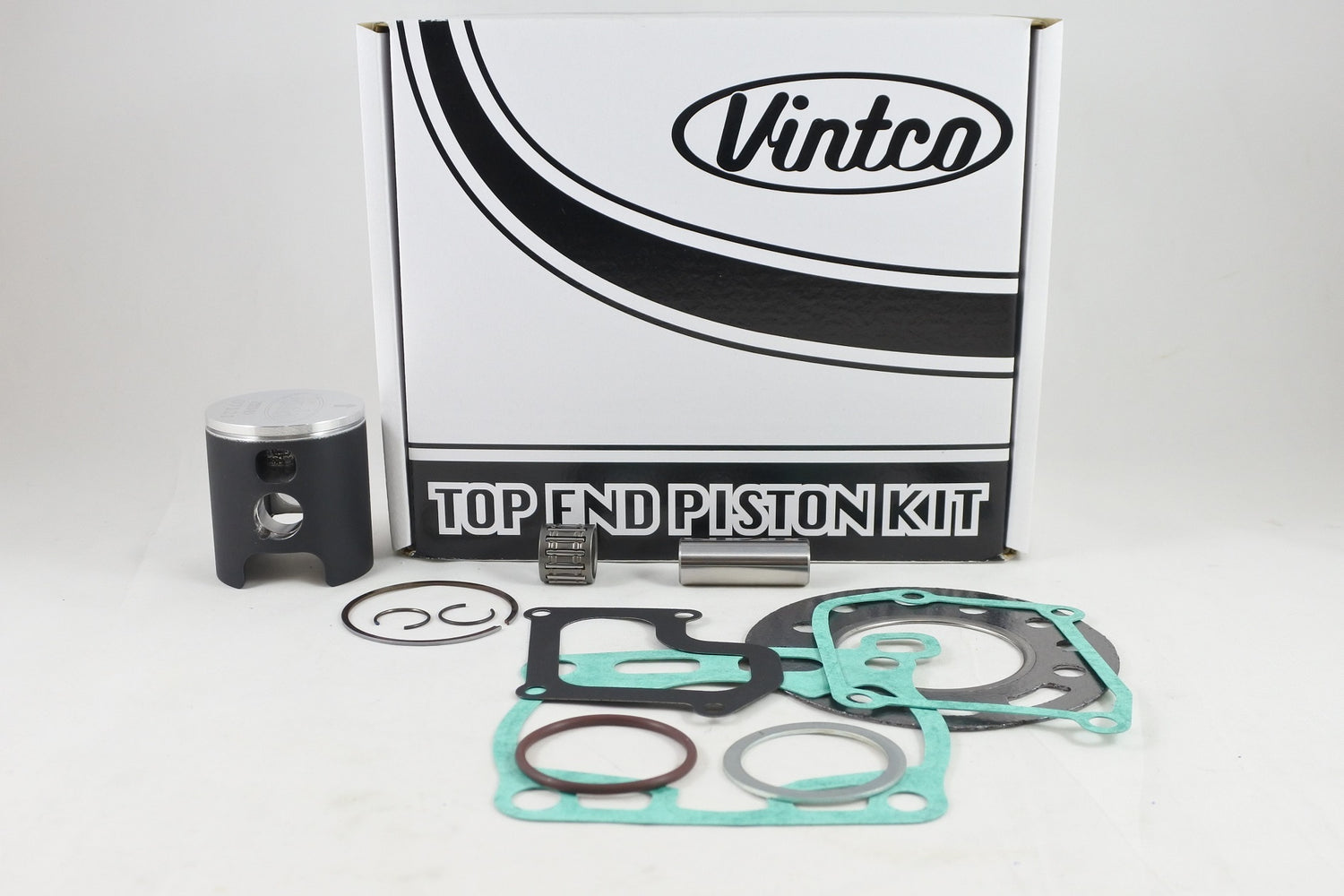

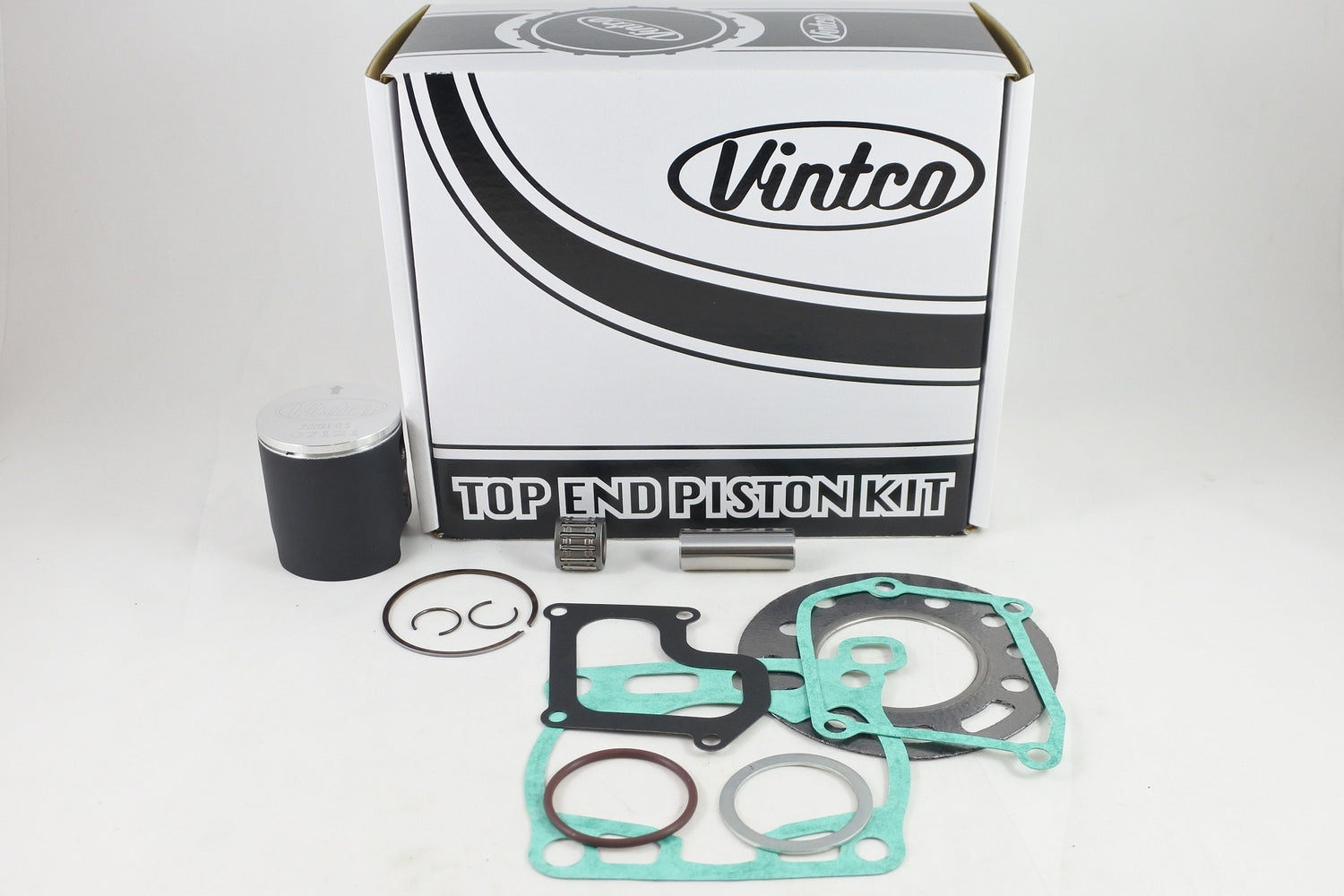

Top end piston kit for 1989-1990 Suzuki RM80 models, supplied as a matched rebuild set with a forged piston made in Germany, cylinder and exhaust gaskets, and a wrist pin bearing. The piston is MOS2 coated for running-in, and the kit price is 10% lower than purchasing the included items individually.

Features

• Complete top end rebuild kit
• Includes forged piston, gasket set and wrist pin bearing
• MOS2-coated piston for running-in

Specifications

• VintCo Part Number: KTS14-0.5
• Piston size: +0.5 mm oversize
• Piston diameter: 48.00 mm
• Piston clearance: 0.05 mm

Cross-Reference OEM Part Numbers

• Cylinder head gasket: 11141-02B60
• Cylinder base gasket: 11241-03B01
• Cylinder cover gasket: 11233-02B42
• Cylinder cover gasket: 11238-01B30-H17
• Exhaust pipe gasket: 14171-02B40
• Exhaust pipe gasket: 14172-02B40

Vehicle Fitments

• 1989 Suzuki RM80
• 1990 Suzuki RM80
