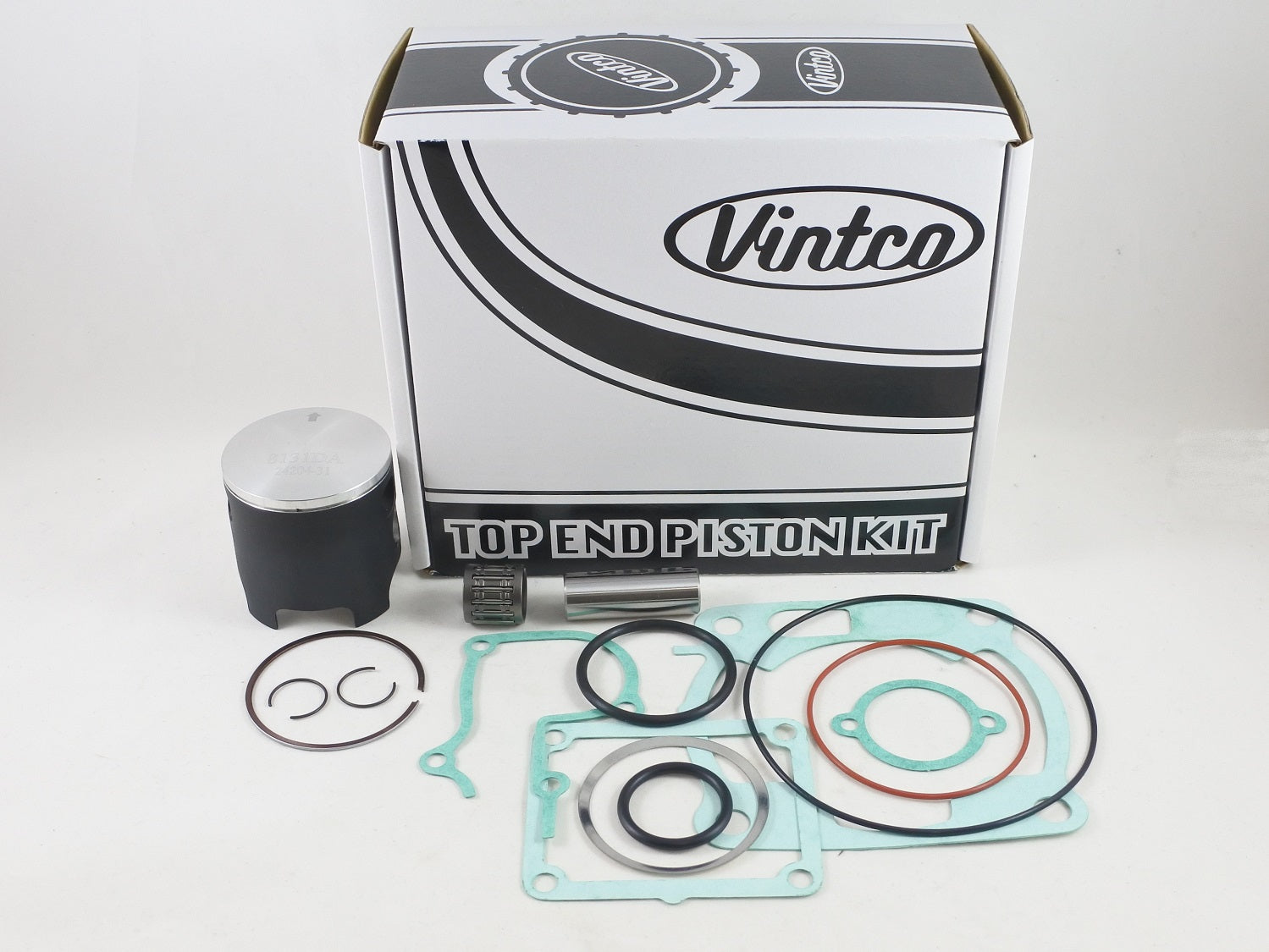

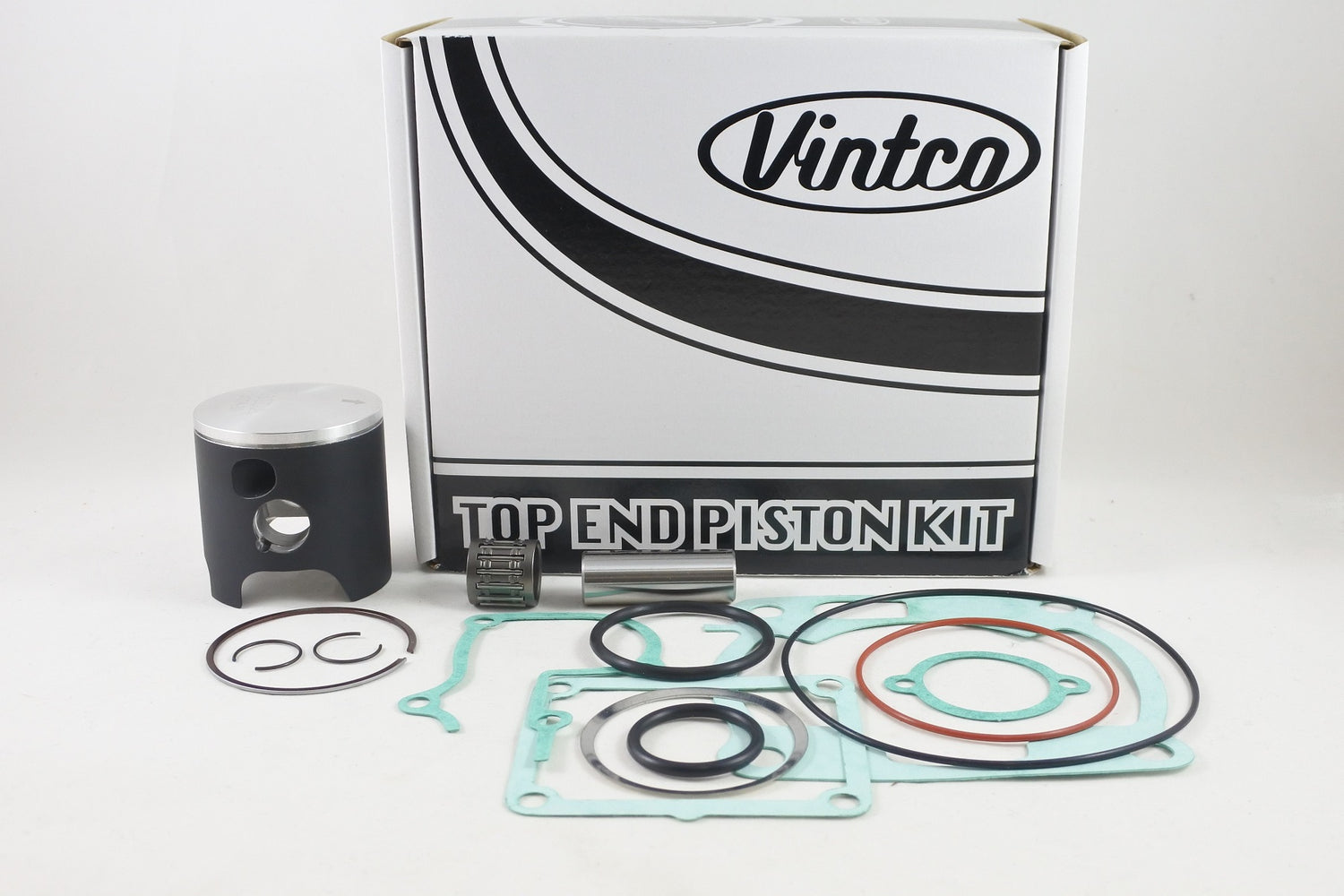

VintCo top end piston kit KTY29-00 is a complete rebuild kit for the 1989 Yamaha YZ125. It includes a piston kit with piston, rings, pin and clips, a wrist pin bearing, and a full top-end gasket set covering the head, base, intake, exhaust, holder and power valve. The components are produced using modern materials and manufacturing techniques to provide OEM-equivalent fit and performance.

Features

• Complete top end rebuild kit for the 1989 Yamaha YZ125
• Includes piston, rings, pin and clips
• Includes wrist pin bearing
• Includes head gasket
• Includes base gasket
• Includes intake gasket
• Includes exhaust pipe gasket
• Includes O-ring
• Includes holder gasket
• Includes power valve gasket
• Piston manufactured in Germany
• Kit price includes a 10% saving compared with purchasing the pieces individually

Specifications

• VintCo Part Number: KTY29-00
• Piston size: 56.01 mm standard
• Standard: 55.94
• Clearance: 0.07 mm
• Piston construction: forged
• Coating: MOS2

Cross-Reference OEM Part Numbers

• Head Gasket: 93211-07720-00
• Head Gasket: 93210-657-21-00
• Base Gasket: 93210-657-21-00
• Intake Gasket: 80L-13621-01-00
• Exhaust Pipe Gasket: 3R3-14613-00-00
• Exhaust Pipe Gasket: 93210-45742-00
• O-Ring: 93210-270A8-00
• Holder Gasket: 5X4-1131N-10-00
• Power Valve Gasket: 3JD-1199310-00

Vehicle Fitments

• 1989 Yamaha YZ125
