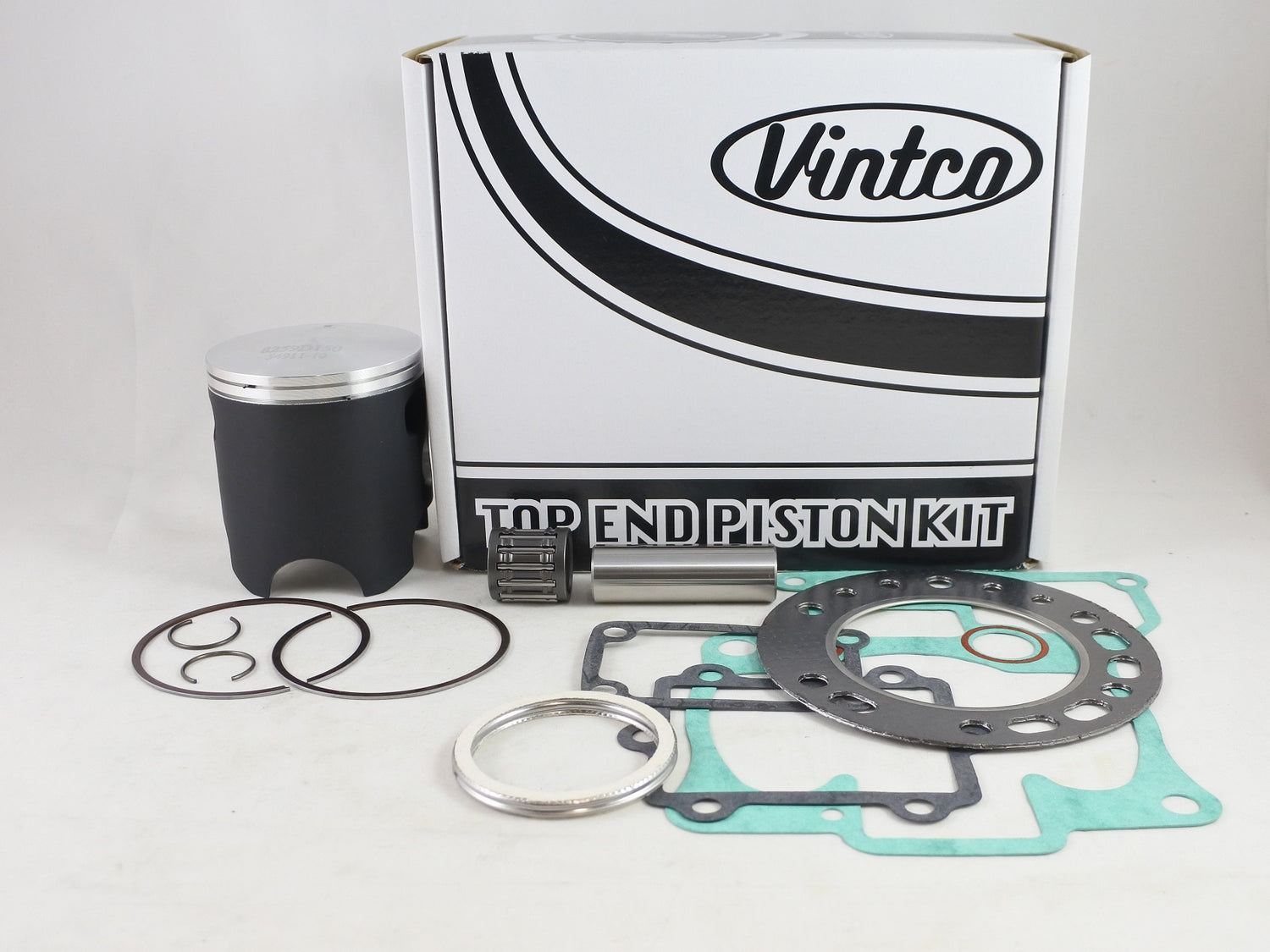

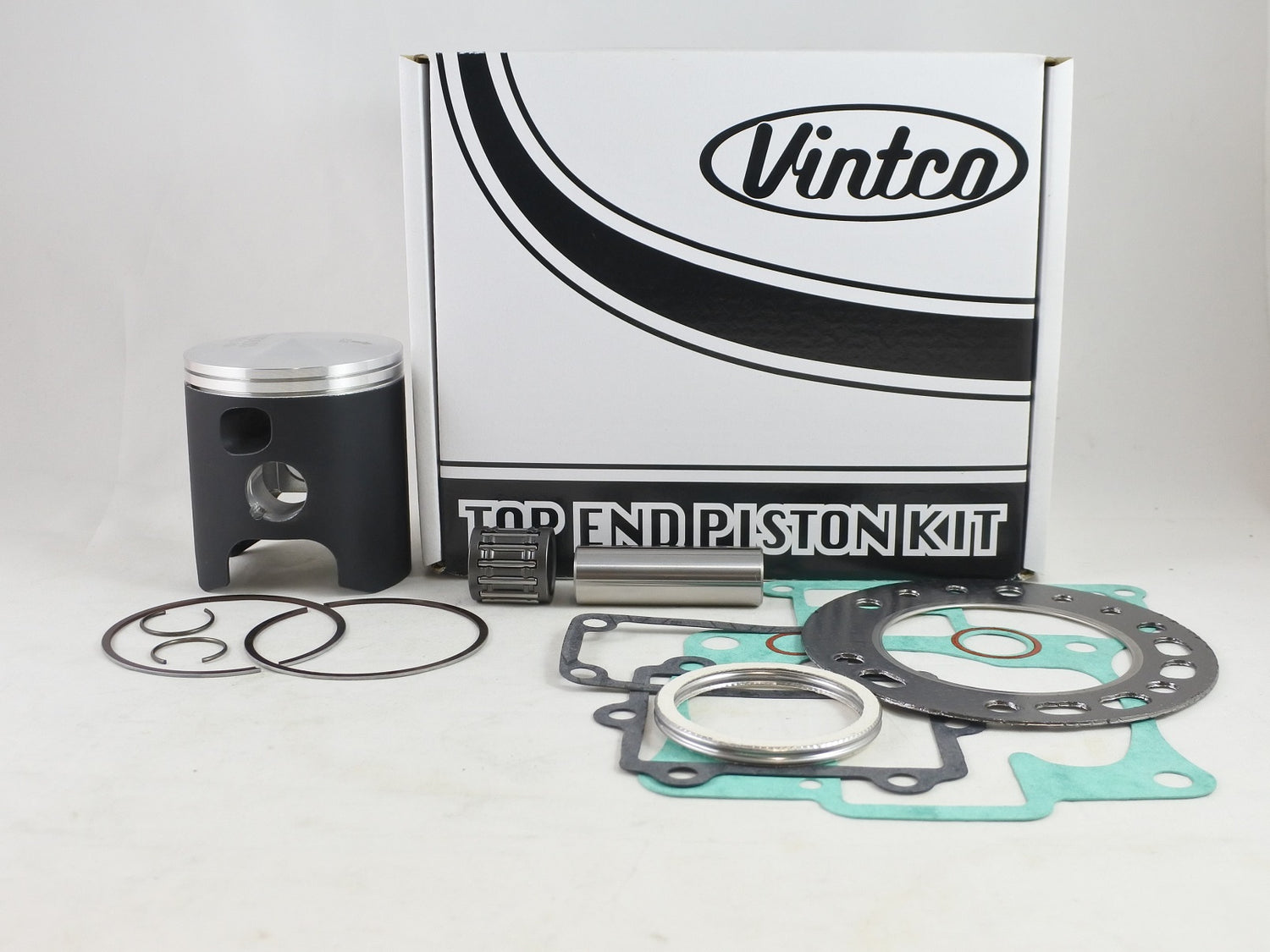

VintCo KTS28-1.5 is a top end piston kit for 1988-1992 Suzuki LT250R models, supplied with a forged piston, wrist pin bearing, and the required top-end gaskets. The piston is made in Germany and features an MOS2 coating for break-in. Kit pricing includes a 10% reduction compared with purchasing the included items individually.

Features

• Complete top end kit
• Forged piston
• MOS2-coated piston for break-in
• Made in Germany
• Includes cylinder head gasket
• Includes cylinder base gasket
• Includes intake gasket
• Includes exhaust pipe gasket
• Includes cylinder cover gasket
• Includes wrist pin bearing

Specifications

• VintCo Part Number: KTS28-1.5
• Nominal piston size: 68.5 mm
• Oversize: +1.5 mm
• Piston diameter: 68.44 mm
• Clearance: 0.06 mm

Cross-Reference OEM Part Numbers

• Cylinder Head Gasket: 11141-01C01-H17
• Cylinder Base Gasket: 11241-01C10
• Intake Gasket: 13156-01C10
• Exhaust Pipe Gasket: 14181-13A01
• Cylinder Cover Gasket: 11233-01C00

Vehicle Fitments

• 1988 Suzuki LT250R
• 1989 Suzuki LT250R
• 1990 Suzuki LT250R
• 1991 Suzuki LT250R
• 1992 Suzuki LT250R
