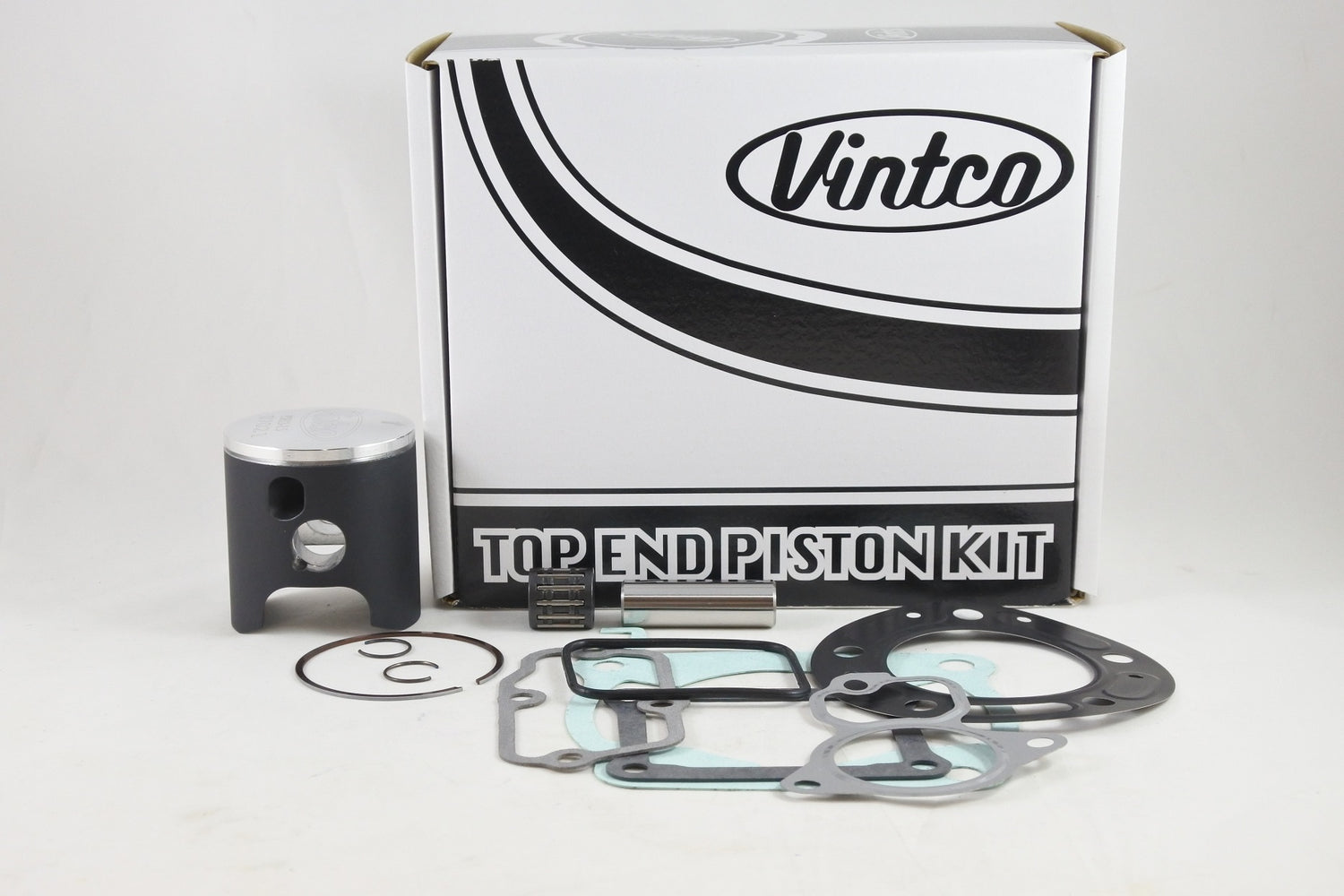

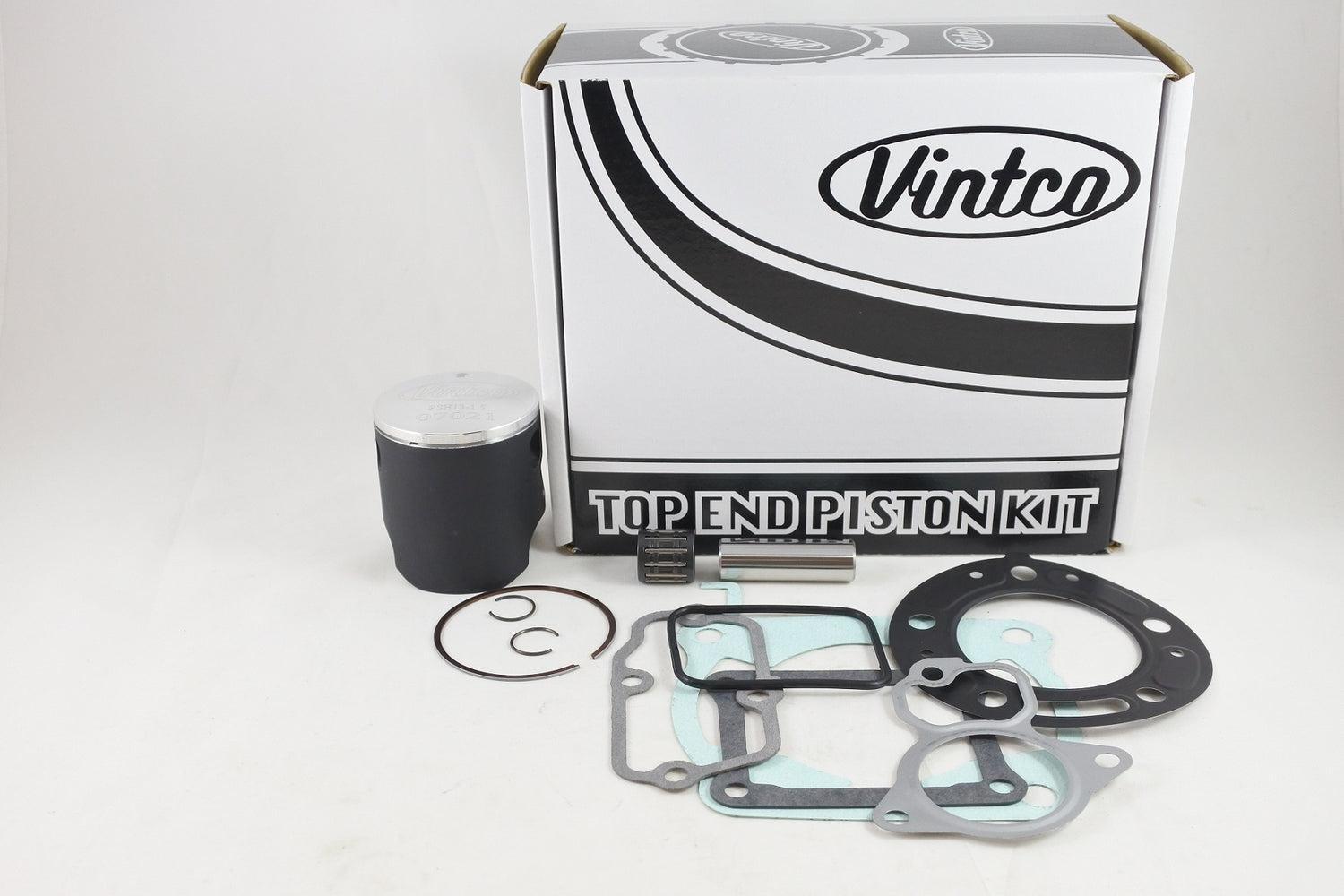

This VintCo top end piston kit is designed for 1988-1989 Honda CR125 models and provides the main components required for a top-end rebuild, including the piston assembly, wrist pin bearing and full gasket set. The kit is manufactured using modern materials and production methods for OEM-comparable fitment and performance, is supplied at 10% less than the equivalent individual components, and is also available in other size options.

Features

• Complete top-end rebuild kit for 1988-1989 Honda CR125
• Includes piston, rings, pin and clips
• Includes wrist pin bearing
• Includes head gasket
• Includes base gasket
• Includes intake O-ring
• Includes exhaust pipe gasket
• Includes sub-chamber gasket
• OEM part numbers provided for fitment verification

Specifications

• VintCo Part Number: KTH19-1.5
• Product Type: Top End Piston Kit
• Nominal piston size: 55.5 mm
• Piston diameter: 55.44 mm
• Oversize: +1.5 mm
• Piston clearance: 0.06 mm
• Piston construction: Forged
• Piston coating: MOS2
• Country of manufacture: Germany

Cross-Reference OEM Part Numbers

• Head gasket: 12251-KZ4-701
• Base gasket: 12191-KS6-P00
• Intake O-ring: 91301-KS6-003
• Exhaust pipe gasket: 18314-KZ4-000
• Sub-chamber gasket: 18339-KS6-701

Vehicle Fitments

• 1988 Honda CR125
• 1989 Honda CR125
