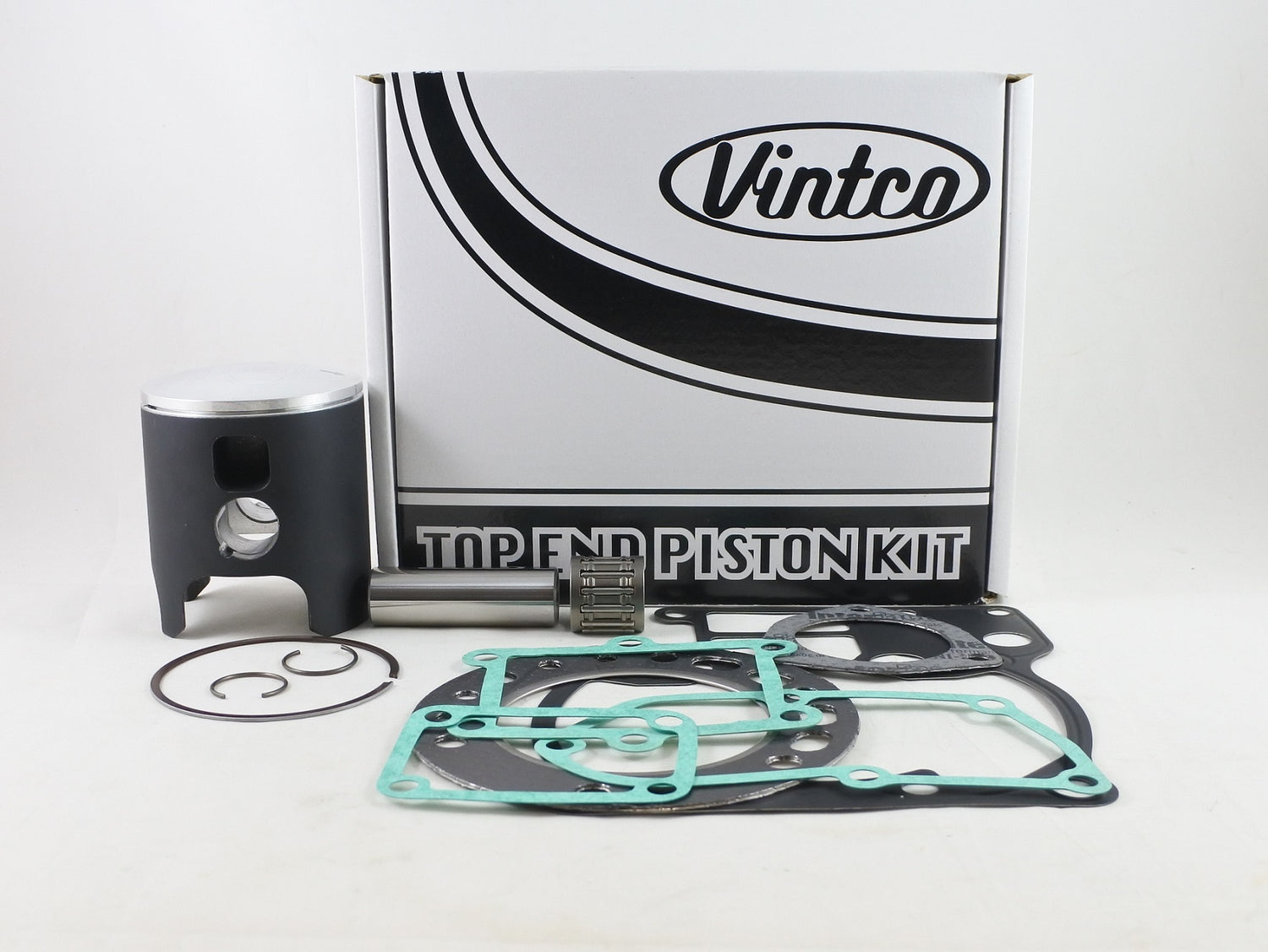

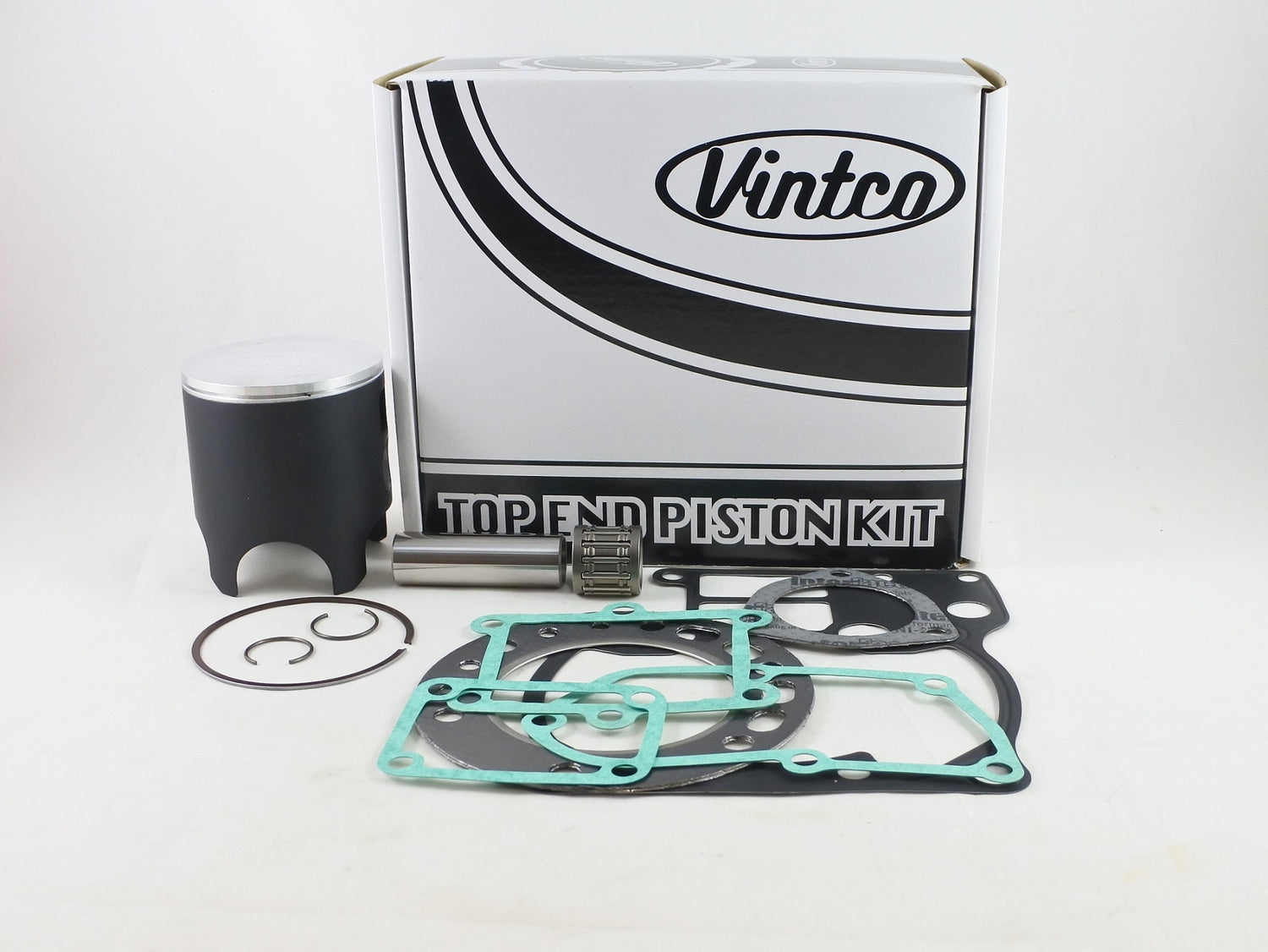

VintCo KTS22-00 is a standard-size 67 mm top end piston kit for 1987-1988 Suzuki RM250 models, supplied as a complete set for top-end service with the piston, required gaskets and wrist pin bearing. The kit price includes a 10% reduction compared with purchasing the individual items separately.

Features

• Complete top end piston kit for 1987-1988 Suzuki RM250 models
• Includes piston
• Includes cylinder head gasket
• Includes cylinder base gasket
• Includes intake gasket
• Includes two cylinder cover gaskets
• Includes exhaust pipe gasket
• Includes wrist pin bearing
• Supplied as a kit at a 10% lower price than the individual items

Specifications

• VintCo Part Number: KTS22-00
• Piston size: 67 mm standard
• Piston measurement: 66.94 mm
• Clearance: 0.06 mm
• Piston construction: Forged
• Piston coating: MOS2
• Country of manufacture: Germany

Cross-Reference OEM Part Numbers

• Cylinder Head Gasket: 11141-01C01-H17
• Cylinder Base Gasket: 11241-00B20-H17
• Intake Gasket: 13156-00B20-H178
• Cylinder Cover Gasket: 11233-00B20-H17
• Cylinder Cover Gasket: 11238-00B20-H17
• Exhaust Pipe Gasket: 14181-16300-H17

Vehicle Fitments

• 1987 Suzuki RM250
• 1988 Suzuki RM250
