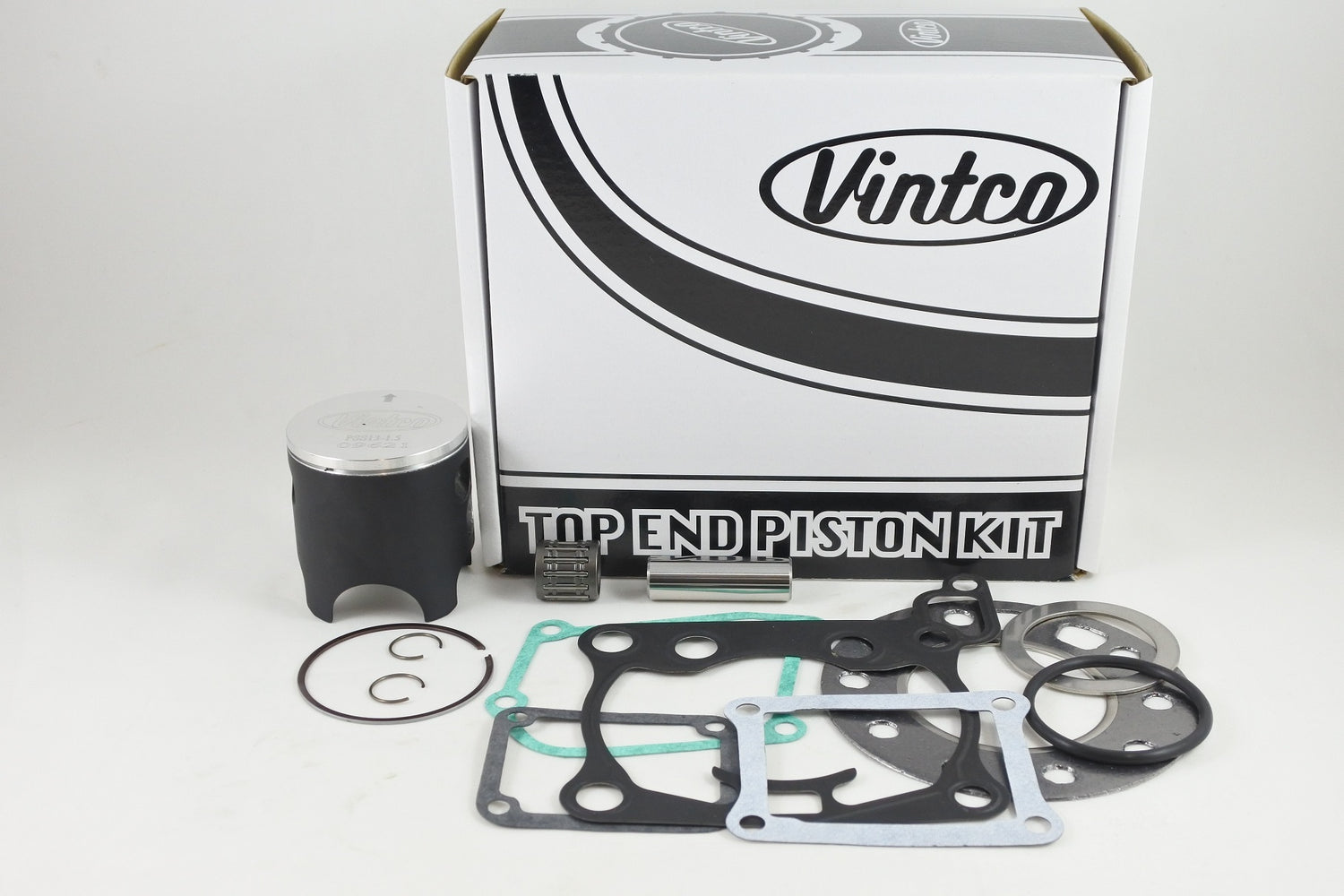

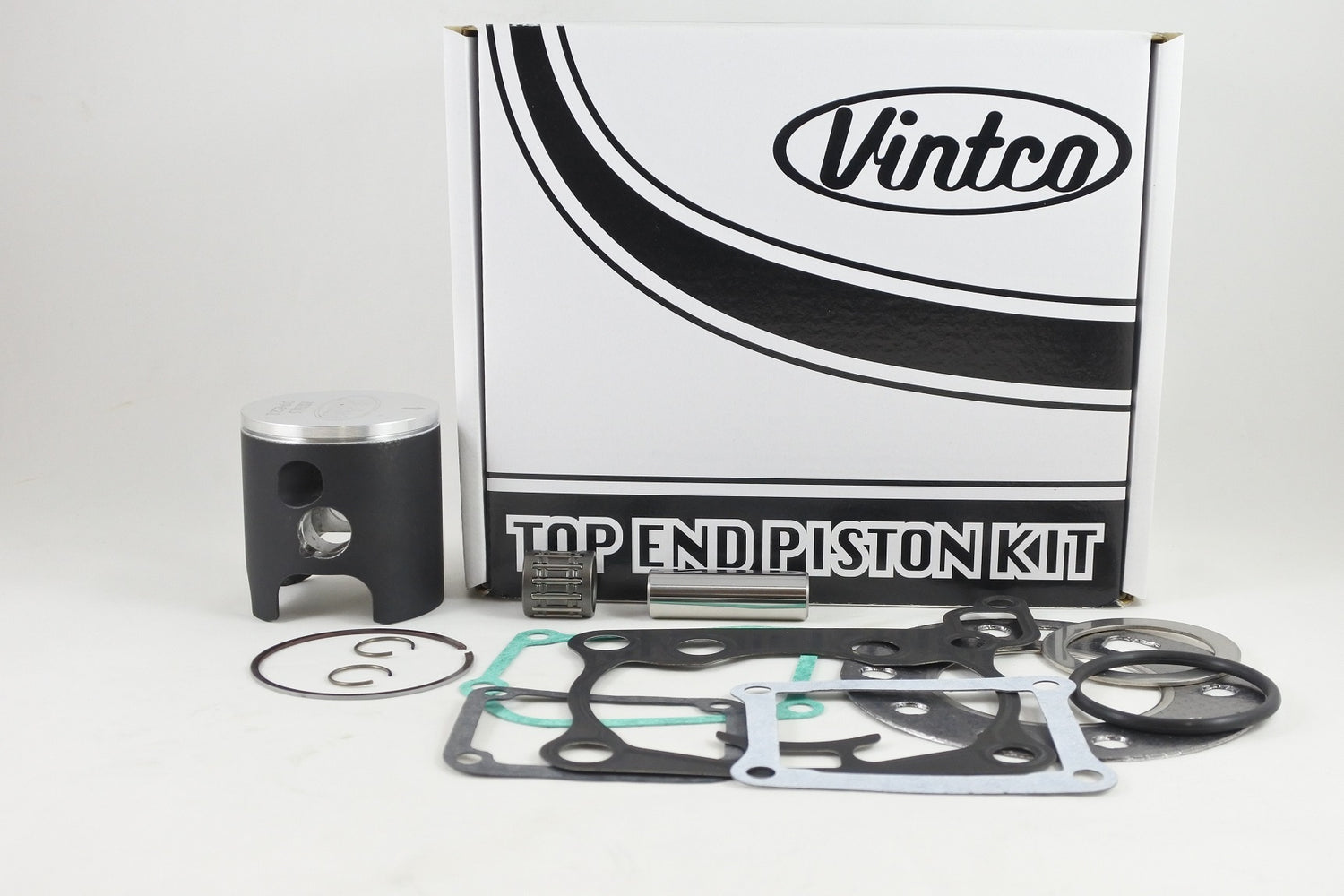

This top end piston kit is designed for the 1987 Suzuki RM125 and includes a forged piston made in Germany with an MOS2 coating for break-in, along with the associated top end gaskets and a wrist pin bearing. The kit is supplied in +1.5 mm oversize and is priced at 10% less than the equivalent individual items.

Features

• Complete top end kit
• Forged piston
• Made in Germany
• MOS2-coated piston for break-in
• Includes cylinder head gasket
• Includes cylinder base gasket
• Includes reed valve gasket
• Includes two cylinder cover gaskets
• Includes two exhaust pipe gaskets
• Includes wrist pin bearing

Specifications

• VintCo Part Number: KTS19-1.5
• Item category: Top End Piston Kits
• Nominal piston size: 55.5 mm
• Piston oversize: +1.5 mm
• Piston size listed in kit contents: 55.45 mm
• Piston clearance: 0.06 mm

Cross-Reference OEM Part Numbers

• Cylinder Head Gasket: 11141-01B32
• Cylinder Base Gasket: 11241-01B20-H17
• Reed Valve Gasket: 13156-03D10
• Cylinder Cover Gasket: 11233-01B30-H17
• Cylinder Cover Gasket: 11238-01B30-H17
• Exhaust Pipe Gasket: 14171-01B21
• Exhaust Pipe Gasket: 14172-01B21
• Wrist Pin Bearing: 09263-14024

Vehicle Fitments

• 1987 Suzuki RM125
