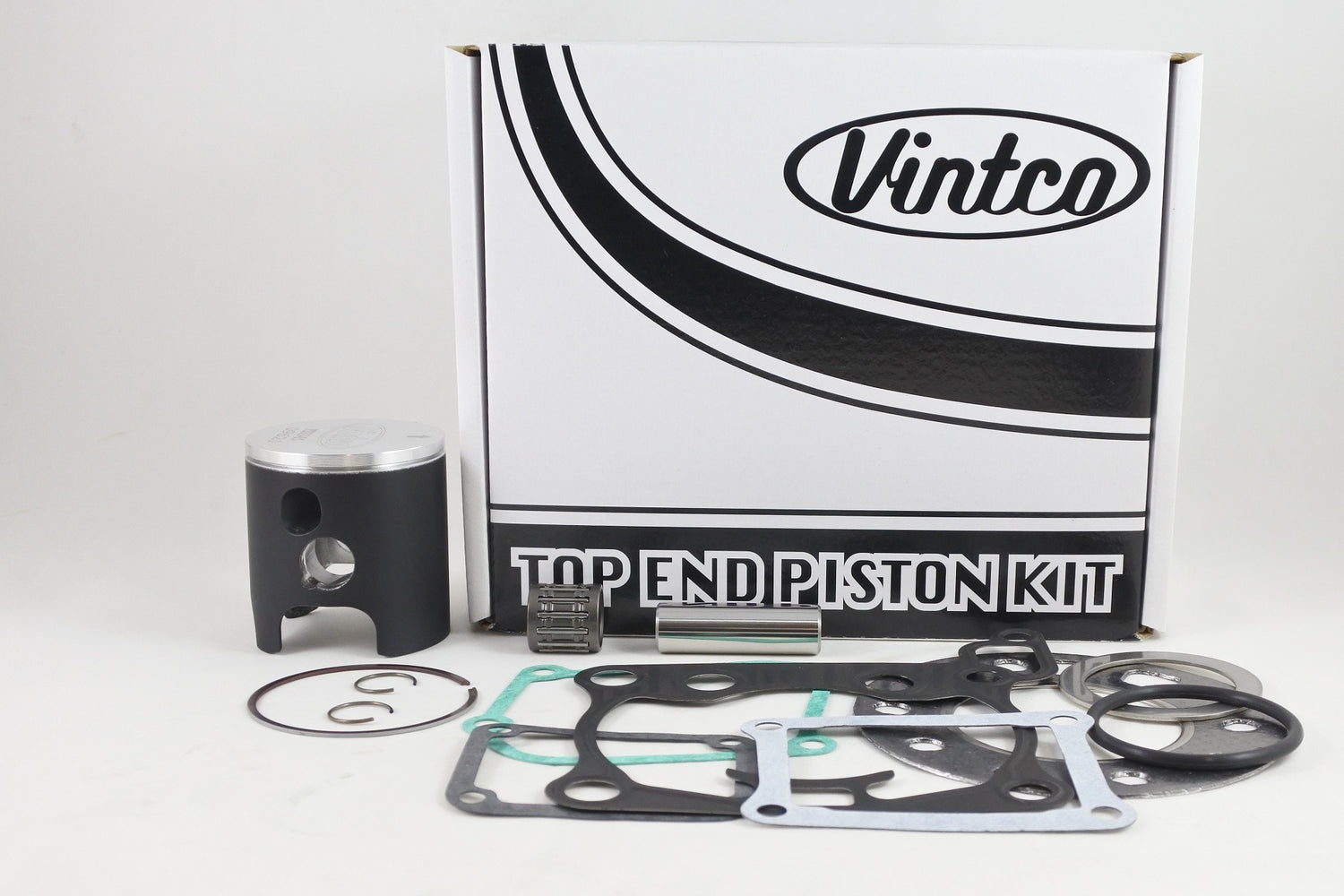

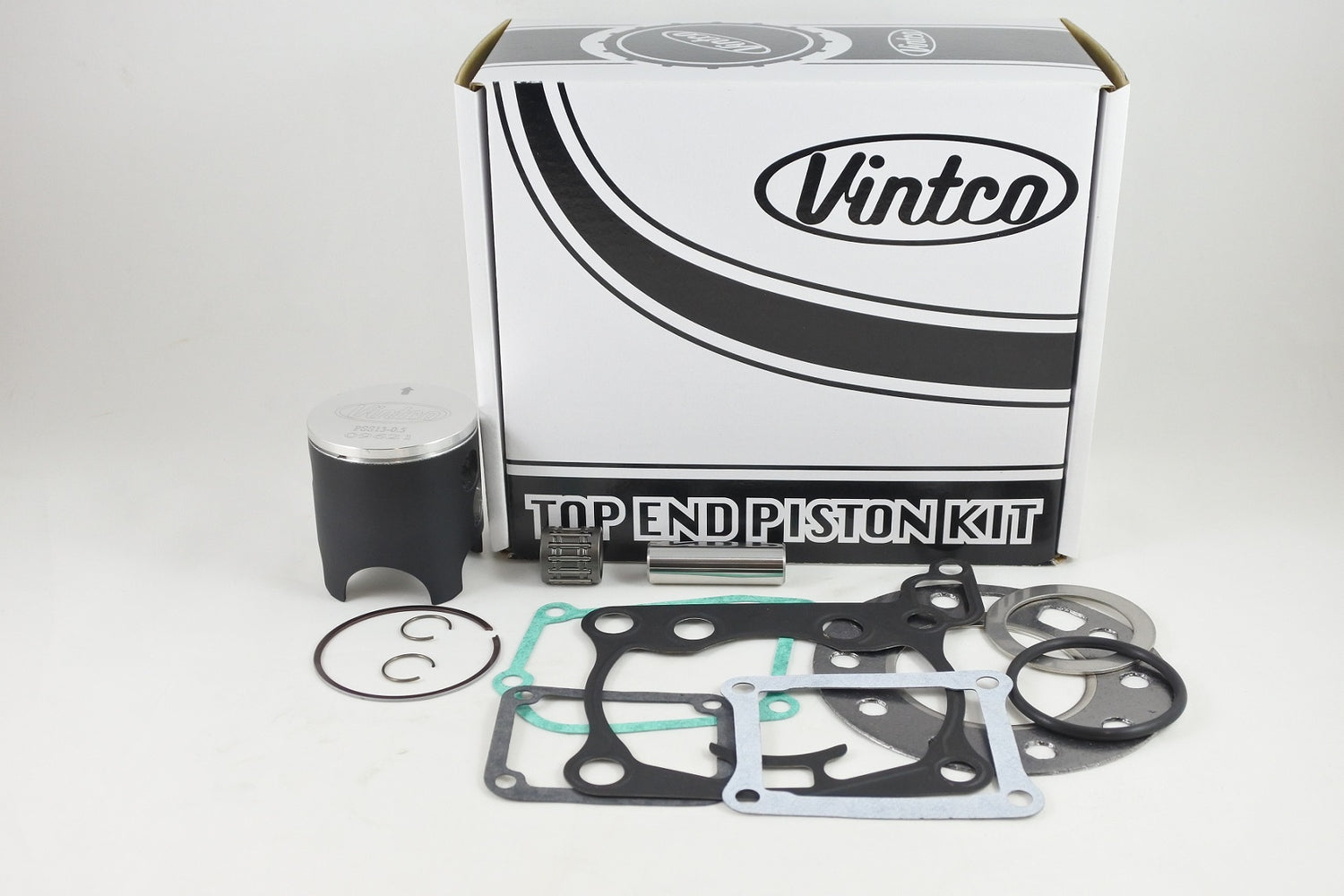

This top end piston kit is designed for the 1987 Suzuki RM125 and includes a forged piston, associated top end gaskets and a wrist pin bearing for top end service work. The piston is made in Germany and finished with an MOS2 coating for break-in. The kit price is stated as including a 10% discount compared with the individual items.

Features

• Top end piston kit for top end rebuild work
• Forged piston included
• MOS2 coating for break-in
• Made in Germany
• Includes cylinder head gasket
• Includes cylinder base gasket
• Includes reed valve gasket
• Includes two cylinder cover gaskets
• Includes two exhaust pipe gaskets
• Includes wrist pin bearing
• Kit price includes 10% discount over individual items

Specifications

• VintCo Part Number: KTS19-0.5
• Kit designation: 54.5 mm
• Piston oversize: +0.5 mm
• Piston diameter: 54.44 mm
• Piston clearance: 0.06 mm

Cross-Reference OEM Part Numbers

• Cylinder Head Gasket: 11141-01B32
• Cylinder Base Gasket: 11241-01B20-H17
• Reed Valve Gasket: 13156-03D10
• Cylinder Cover Gasket: 11233-01B30-H17
• Cylinder Cover Gasket: 11238-01B30-H17
• Exhaust Pipe Gasket: 14171-01B21
• Exhaust Pipe Gasket: 14172-01B21
• Wrist Pin Bearing: 09263-14024

Vehicle Fitments

• 1987 Suzuki RM125
