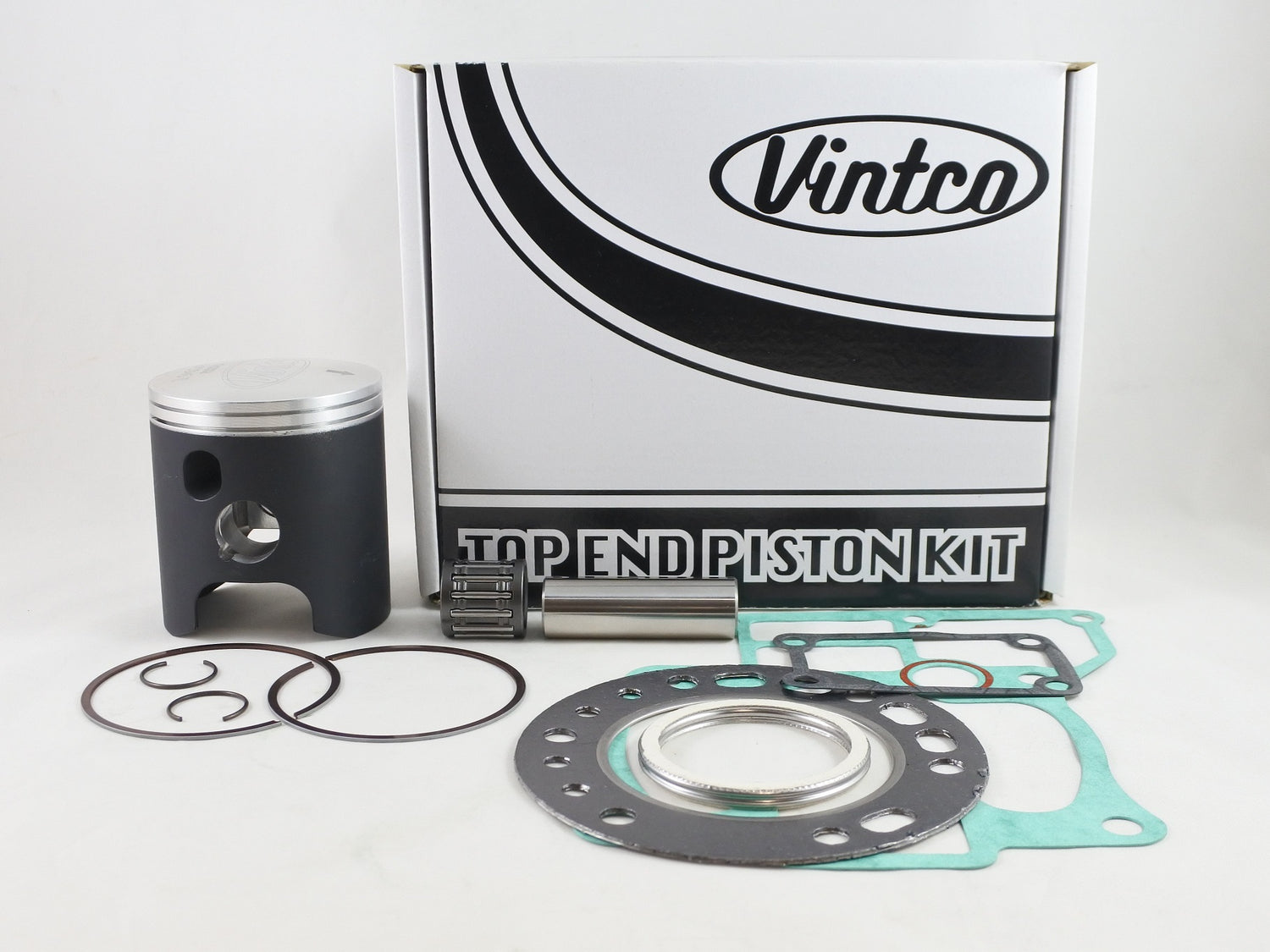

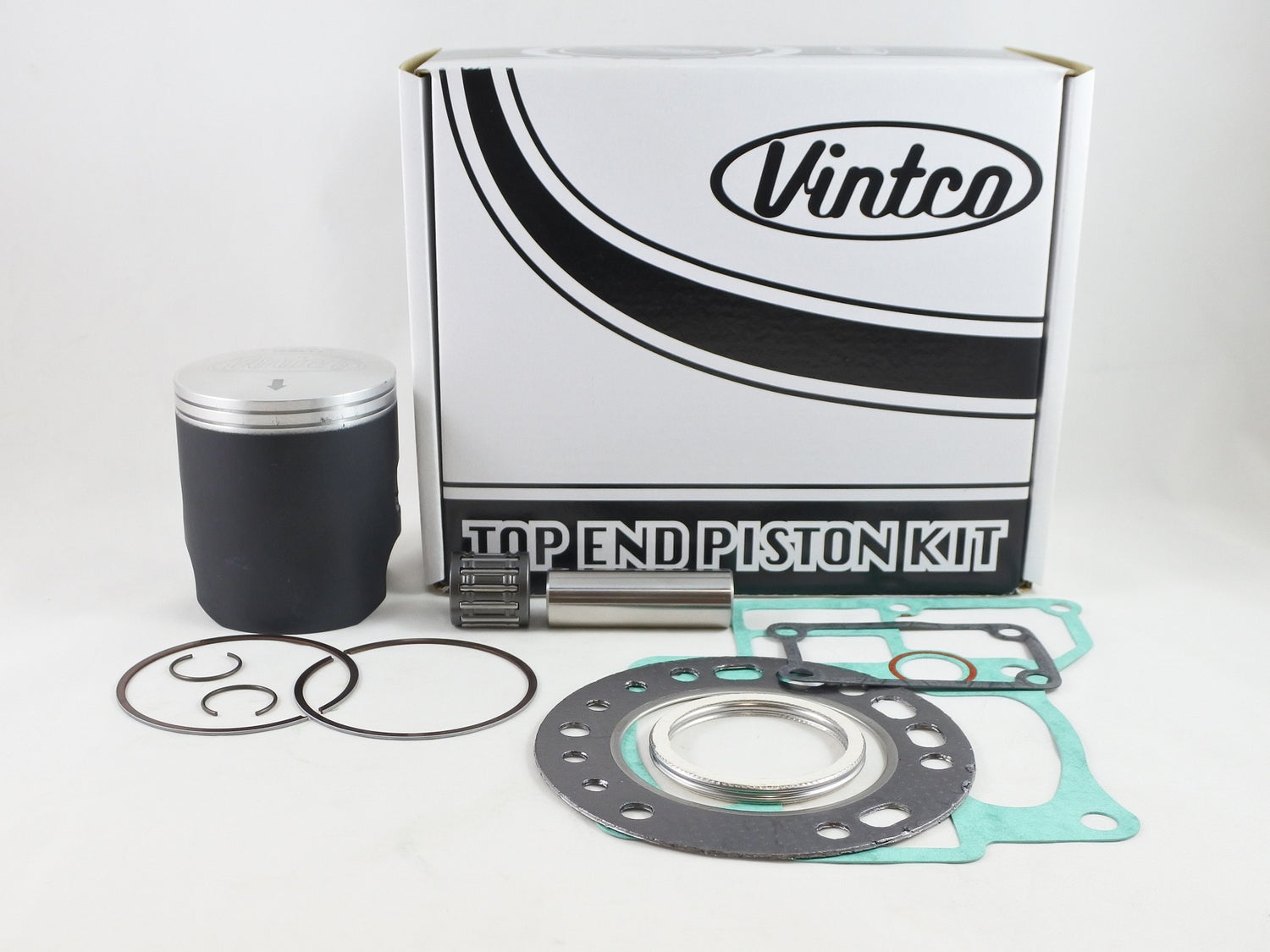

This VintCo top end piston kit provides the main components required for a top end rebuild on the 1987 Suzuki LT250R. The kit includes a forged oversize piston made in Germany, a running-in coating, cylinder head, base, exhaust pipe and cylinder cover gaskets, plus a wrist pin bearing. Kit pricing includes a 10% discount compared with the equivalent individual items.

Features

• Complete top end piston kit
• Forged piston included
• Piston made in Germany
• Running-in coating on piston
• Cylinder head gasket included
• Cylinder base gasket included
• Exhaust pipe gasket included
• Cylinder cover gasket included
• Wrist pin bearing included
• Kit pricing includes a 10% discount over individual items

Specifications

• VintCo Part Number: KTS27-1.5
• Oversize: 1.5 mm
• Piston size: 68.44 mm
• Nominal kit size: 68.5 mm
• Piston-to-cylinder clearance: 0.06 mm
• Piston coating: MOS2

Cross-Reference OEM Part Numbers

• Cylinder head gasket: 11141-01C01-H17
• Cylinder base gasket: 11241-01C10
• Exhaust pipe gasket: 14181-13A01
• Cylinder cover gasket: 11233-01C00

Vehicle Fitments

• 1987 Suzuki LT250R
