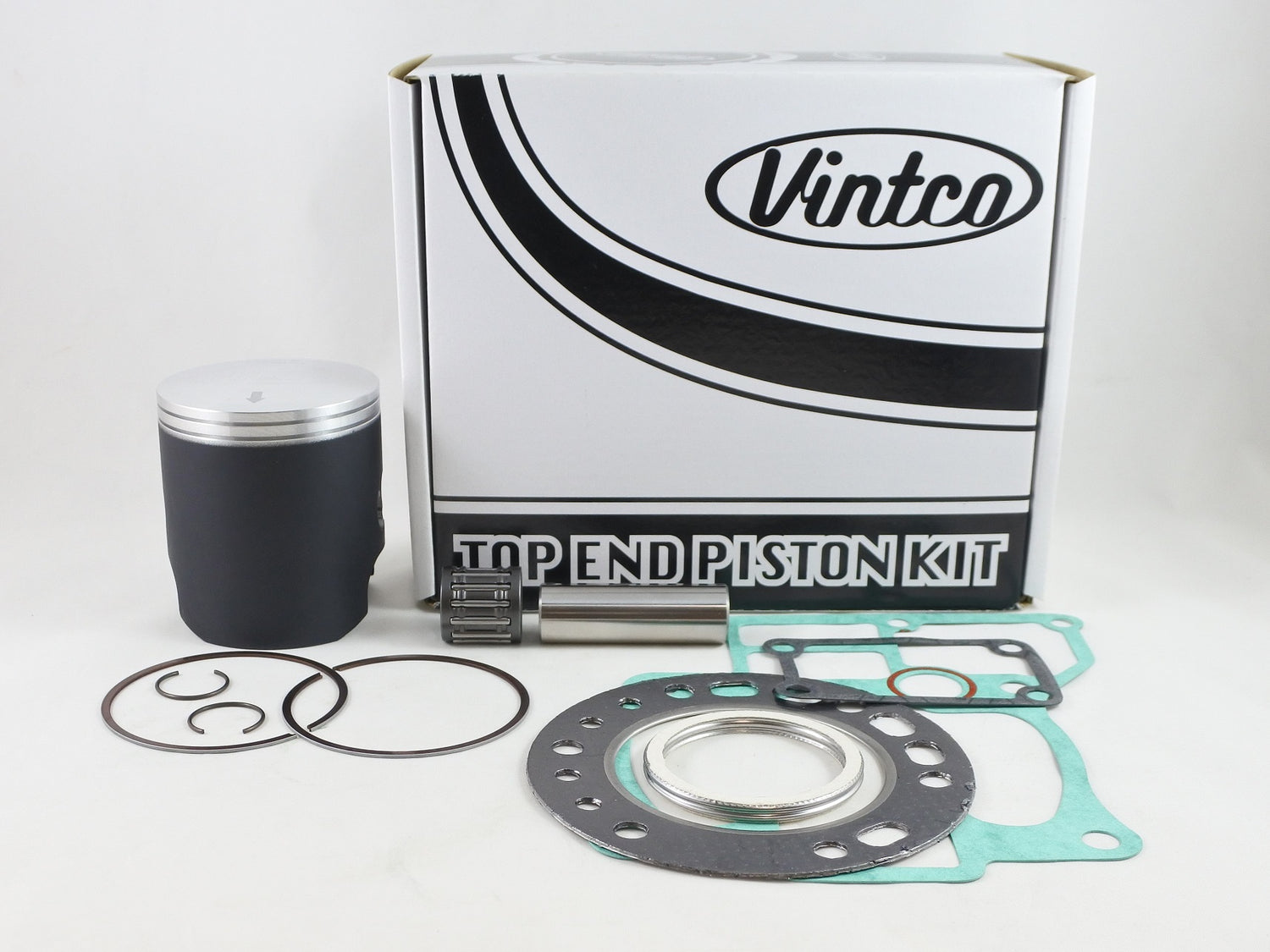

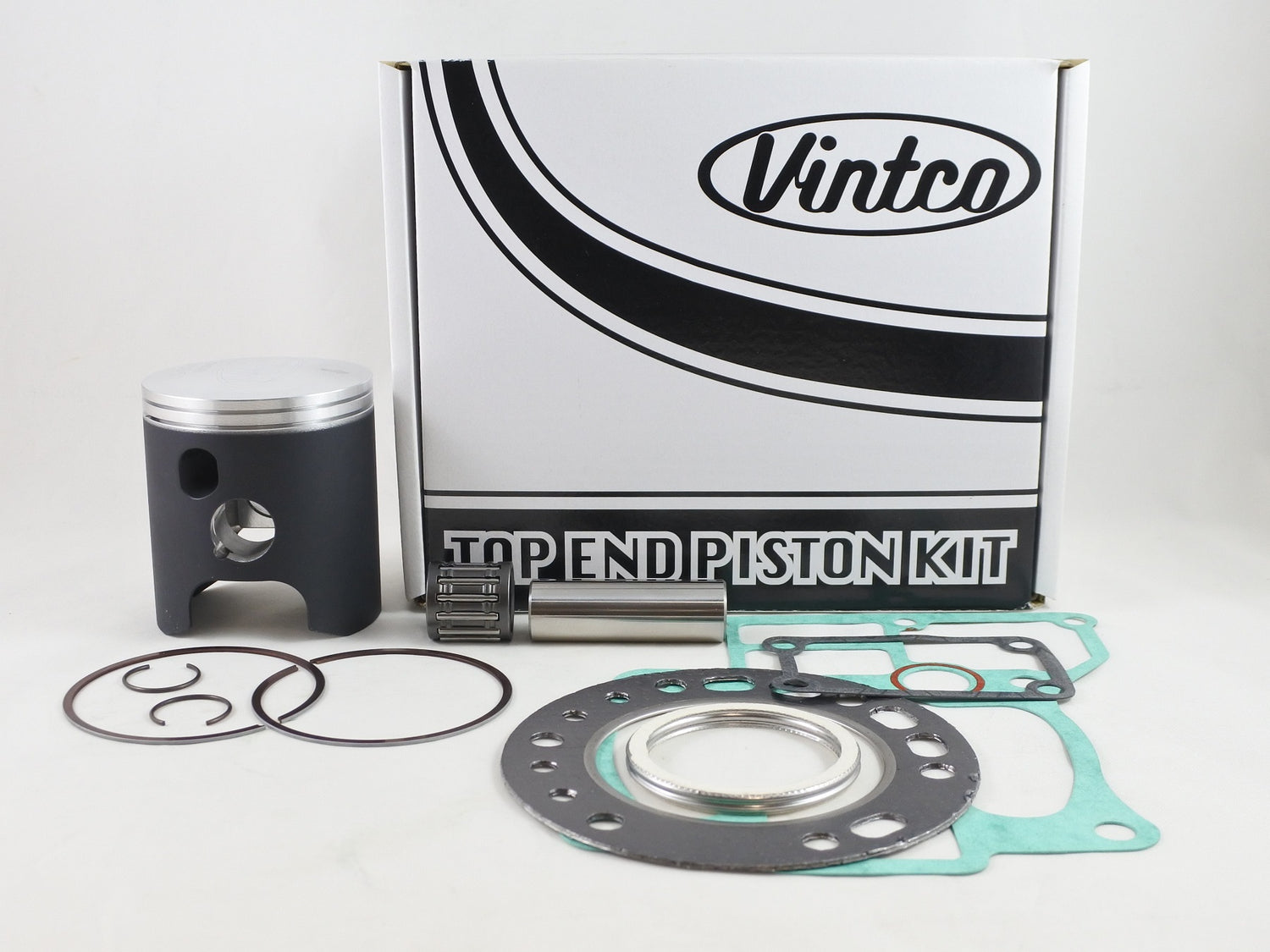

This top end piston kit is designed for the 1987 Suzuki LT250R and is supplied as a complete package for top-end service work. The kit includes a forged piston made in Germany with an MOS2 coating for running-in, a cylinder head gasket, cylinder base gasket, exhaust pipe gasket, cylinder cover gasket and a wrist pin bearing. Kit pricing includes a 10% discount compared with purchasing the components individually.

Features

• Complete top-end piston kit for top-end service work
• Includes piston, gaskets and wrist pin bearing
• MOS2-coated piston for running-in
• Supplied as a matched kit package

Specifications

• VintCo Part Number: KTS27-0.5
• Piston size: 67.5 mm
• Oversize: 0.5 mm
• Piston measurement: 67.44 mm
• Clearance: 0.06 mm
• Piston construction: Forged
• Country of manufacture: Germany
• Coating: MOS2

Cross-Reference OEM Part Numbers

• Cylinder Head Gasket: 11141-01C01-H17
• Cylinder Base Gasket: 11241-01C10
• Exhaust Pipe Gasket: 14181-13A01
• Cylinder Cover Gasket: 11233-01C00

Vehicle Fitments

• 1987 Suzuki LT250R
