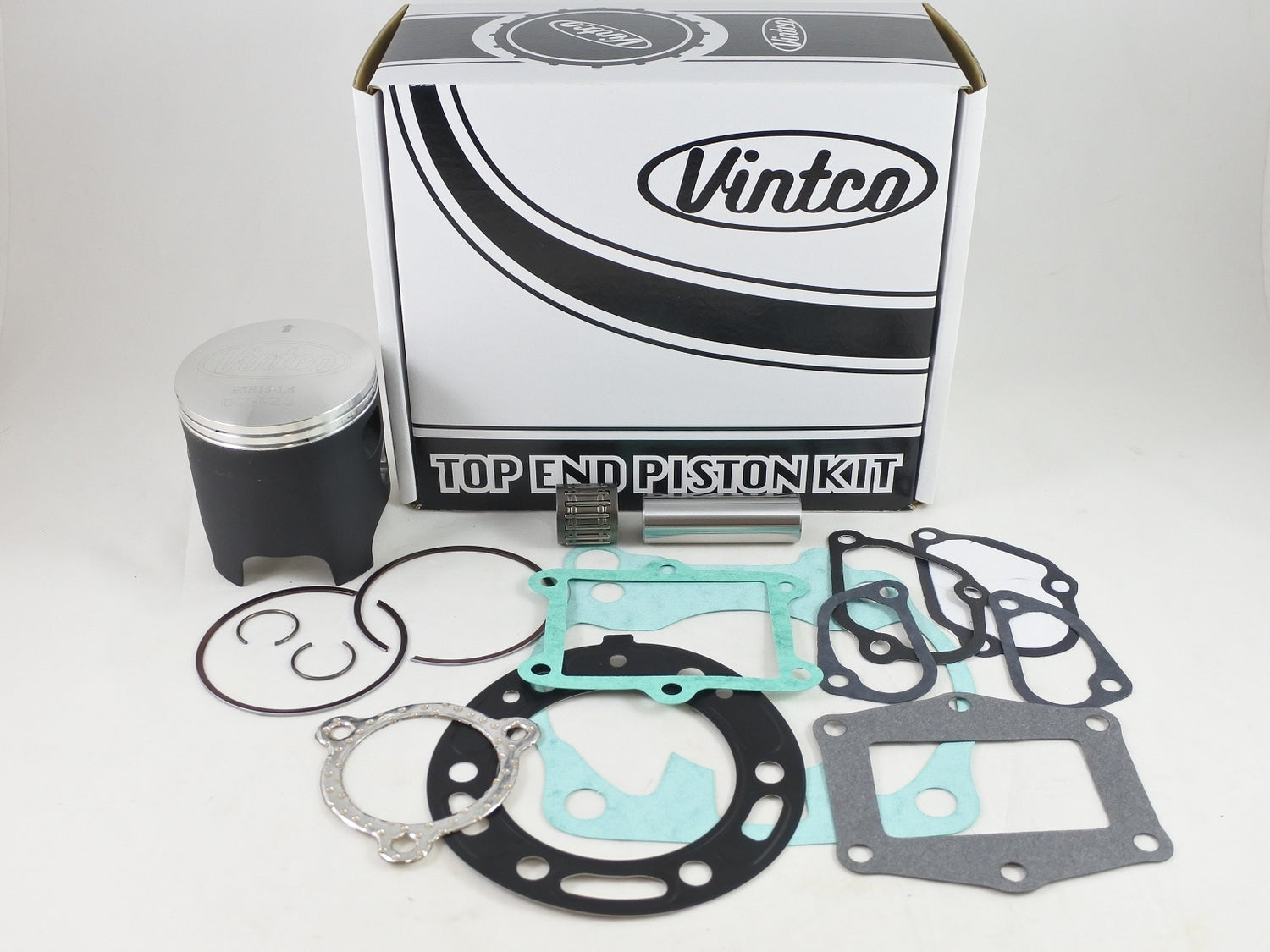

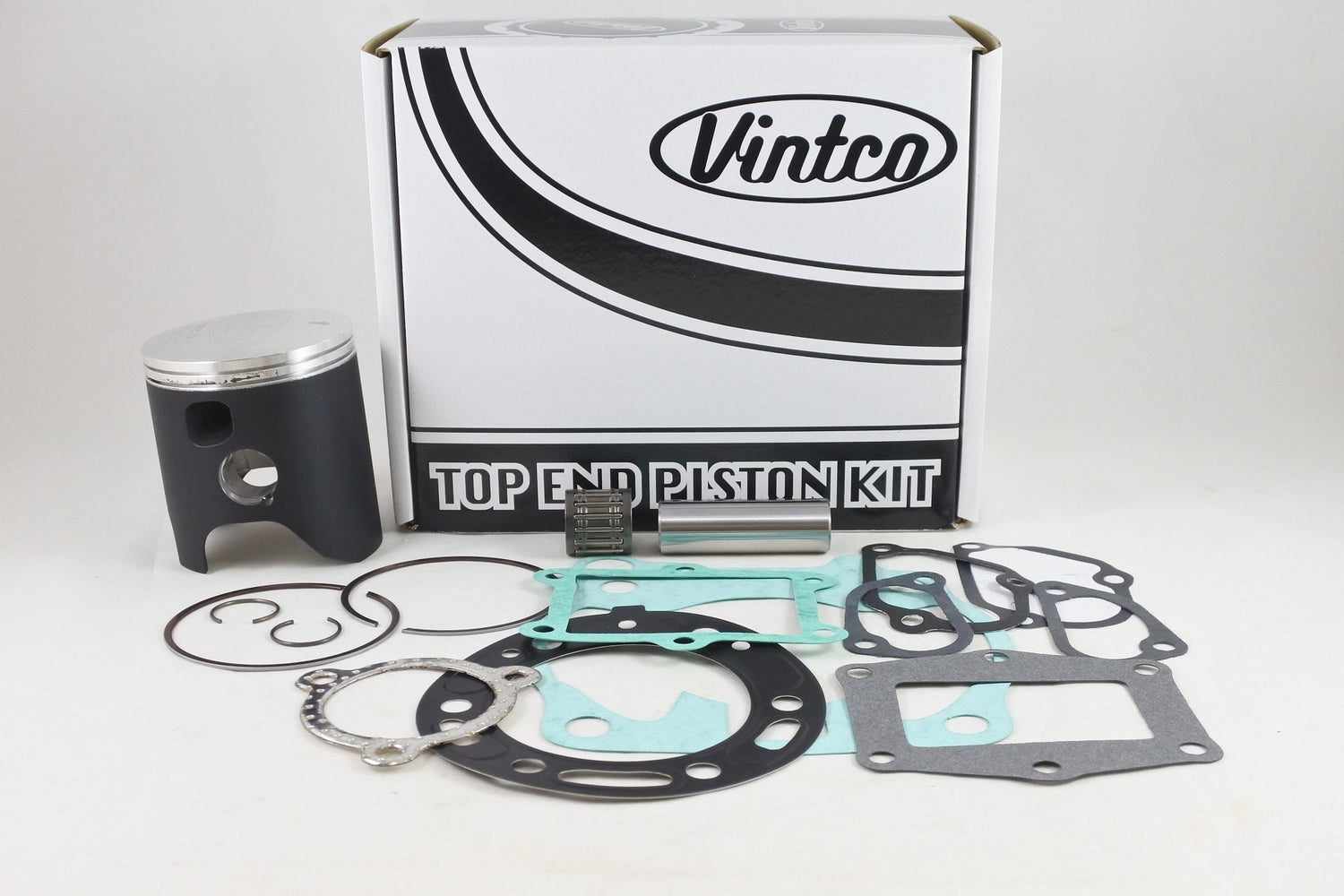

This top end piston kit is for Honda CR250 models from 1986 to 1988 and is supplied as a complete rebuild set. It includes a VintCo piston kit with piston, rings, pin and clips, a top end bearing, and a full top-end gasket kit covering the head gasket, base gasket, intake gaskets, power valve gaskets and exhaust gasket. The components are manufactured using modern materials and processes for OEM-equivalent fit and performance. This is the 68 mm nominal size kit at +1.6 mm over, and it is priced at 10% less than purchasing the included items individually. Additional size options are available.

Features

• Complete top end rebuild kit
• Includes piston, rings, pin and clips
• Includes top end bearing
• Includes full top-end gasket set
• Forged piston
• MOS2-coated piston for running-in
• OEM-equivalent fit and performance
• Supplied for 1986-1988 Honda CR250 applications
• Additional size options available

Specifications

• VintCo Part Number: KTH26-1.6
• Product type: Top End Piston Kit
• Piston size: 67.94 mm
• Nominal size: 68 mm
• Oversize: +1.6 mm
• Clearance: 0.06 mm
• Piston manufacture origin: Germany

Cross-Reference OEM Part Numbers

• Head gasket: 12254-KS7-881
• Base gasket: 12191-KS7-880
• Intake gasket: 14132-KAE-000
• Intake gasket: 14133-KS7-306
• Exhaust pipe gasket: 18291-KS7-880
• Side power valve gasket: 12108-KS7-000
• Upper left power valve cover gasket: 12113-KS7-000
• Upper right power valve cover gasket: 12114-KS7-000

Vehicle Fitments

• 1986 Honda CR250
• 1987 Honda CR250
• 1988 Honda CR250
