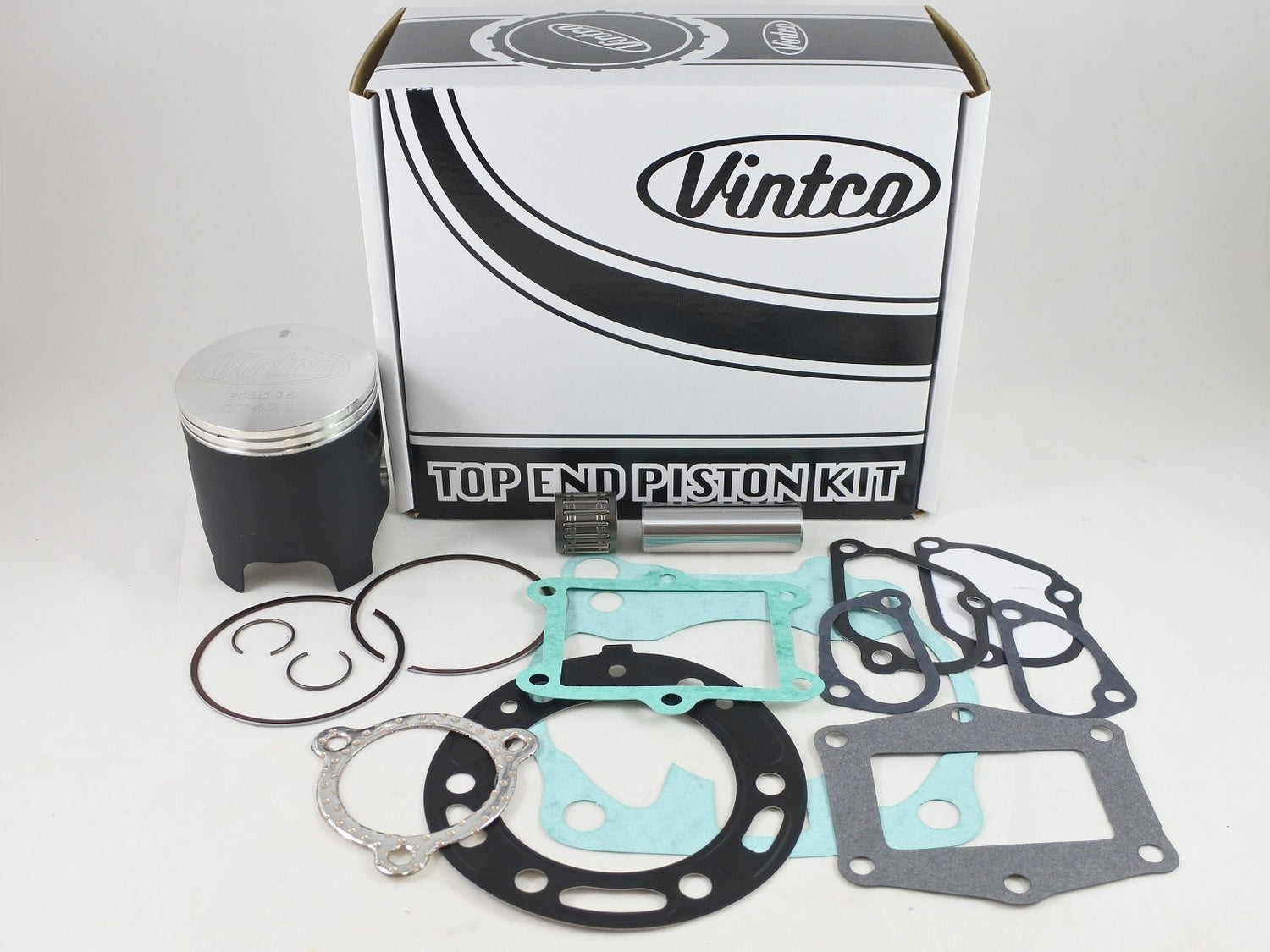

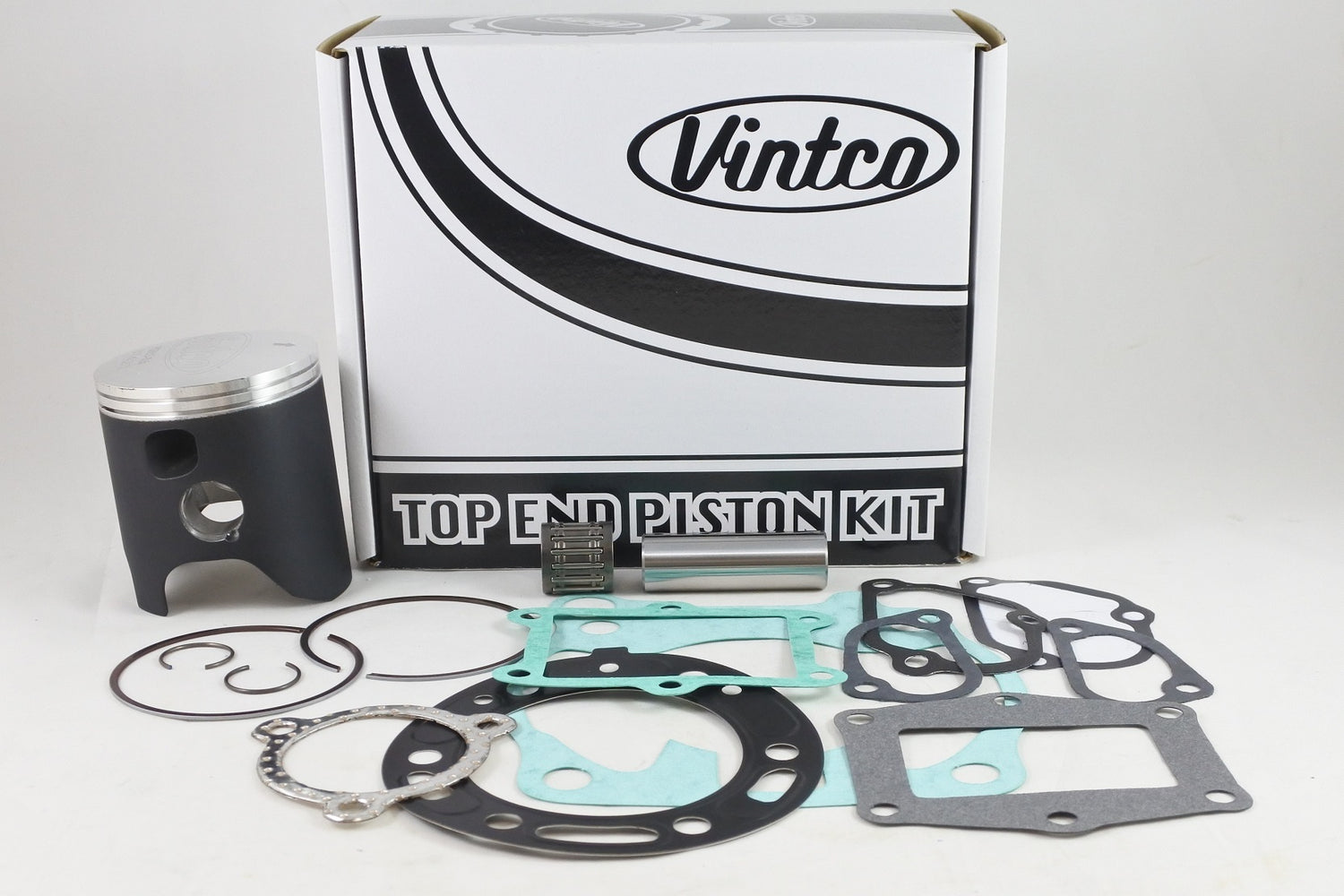

Complete top-end piston kit for Honda CR250 models from 1986 to 1988, supplied for a nominal 67 mm bore at +0.60 mm oversize. The kit is intended for top-end rebuilds and includes a VintCo piston kit with piston, rings, pin and clips, a wrist pin bearing, and a full gasket set for the head, base, intake, power valve and exhaust. The forged piston is made in Germany and features an MOS2 coating for running-in. Components are produced with modern materials and manufacturing methods to provide OEM-level fit and performance. Kit pricing is 10% lower than purchasing the items separately, and other size options are available.

Features

• Complete top-end rebuild kit
• Includes piston, rings, pin and clips
• Includes wrist pin bearing
• Includes full top-end gasket set
• Includes head gasket
• Includes base gasket
• Includes intake gaskets
• Includes power valve gaskets
• Includes exhaust pipe gasket
• Suitable for Honda CR250 models from 1986 to 1988
• Other size options are available

Specifications

• VintCo Part Number: KTH26-0.6
• Product type: Top-end piston kit
• Nominal bore size: 67 mm
• Oversize: +0.60 mm
• Piston size: 66.94 mm
• Piston clearance: 0.06 mm
• Piston construction: Forged
• Piston coating: MOS2

Cross-Reference OEM Part Numbers

• Head gasket: 12254-KS7-881
• Base gasket: 12191-KS7-880
• Intake gasket: 14132-KAE-000
• Intake gasket: 14133-KS7-306
• Exhaust pipe gasket: 18291-KS7-880
• Side power valve gasket: 12108-KS7-000
• Upper left power valve cover gasket: 12113-KS7-000
• Upper right power valve cover gasket: 12114-KS7-000

Vehicle Fitments

• 1986 Honda CR250
• 1987 Honda CR250
• 1988 Honda CR250
