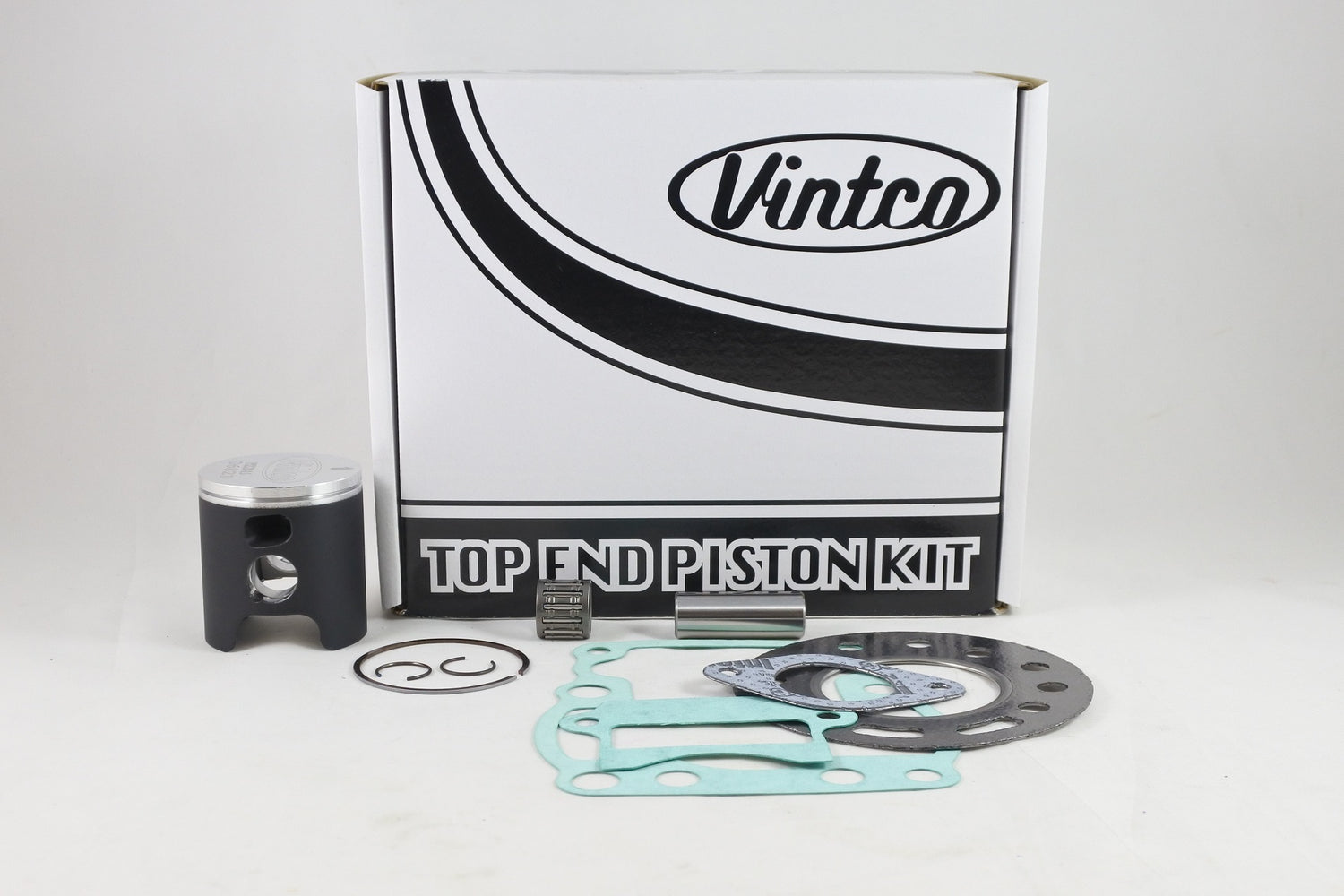

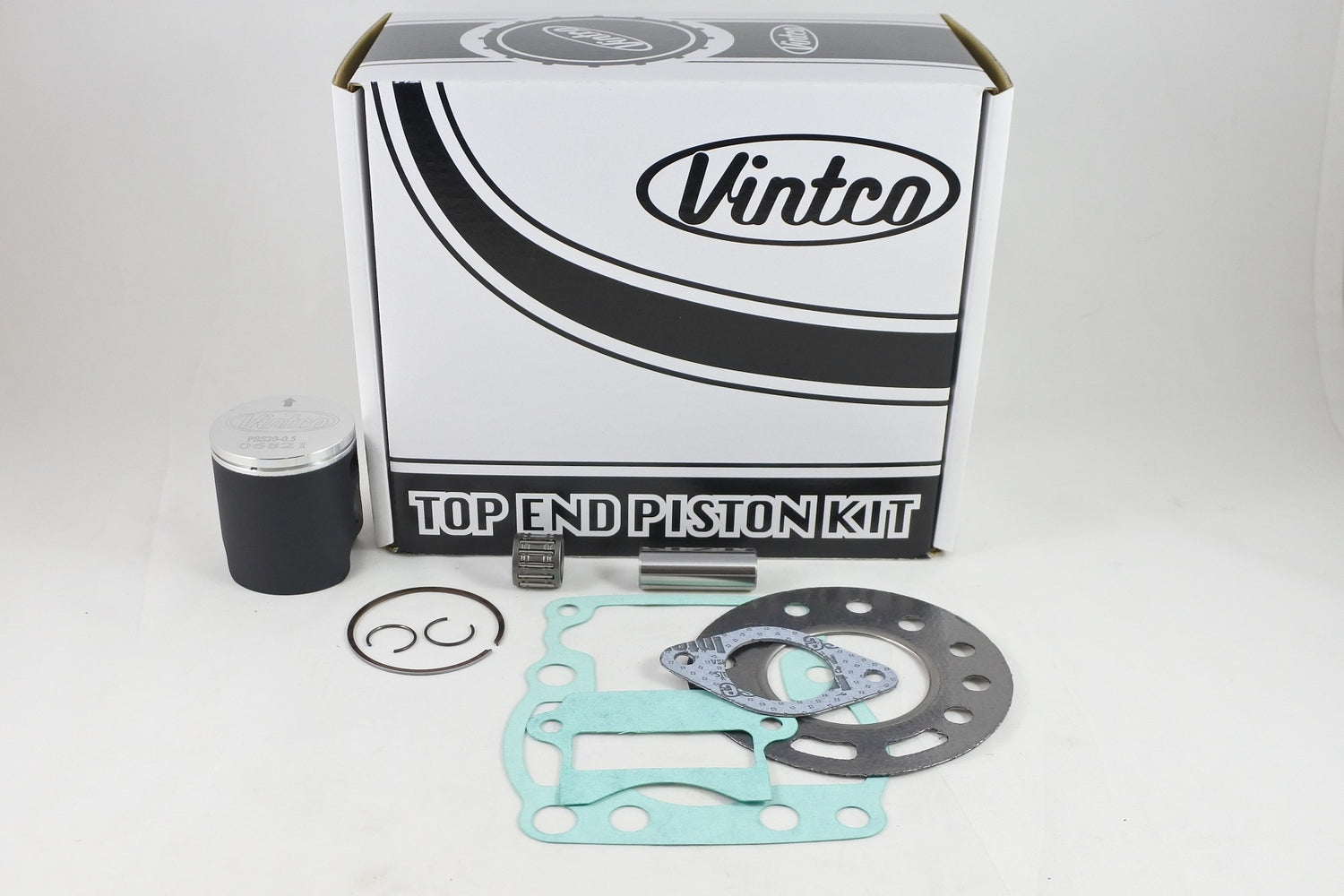

This VintCo top-end piston kit is a complete rebuild kit for 1986–1987 Suzuki RM80 models. It includes a piston kit with piston, rings, pin and clips, a wrist pin bearing, and a full top-end gasket set with cylinder head, cylinder base, intake and exhaust pipe gaskets. The kit is manufactured using modern materials and production methods for OEM-equivalent fitment and performance. This version is supplied with a 48 mm piston in +0.5 mm oversize, and other size options are also available.

Features

• Complete top-end rebuild kit
• Includes piston, rings, pin and clips
• Includes wrist pin bearing
• Includes cylinder head gasket
• Includes cylinder base gasket
• Includes intake gasket
• Includes exhaust pipe gasket
• Intended to simplify top-end rebuild work
• Designed for OEM-equivalent fitment and performance
• Kit price stated as 10% lower than purchasing the components individually
• Other size options available

Specifications

• VintCo Part Number: KTS13-0.5
• Product Type: Top End Piston Kit
• Piston diameter: 48 mm
• Oversize: +0.5 mm
• Stated clearance: 0.06 mm
• Listed piston clearance: 0.05 mm
• Piston construction: Forged
• Piston coating: MOS2
• Country of manufacture: Germany

Cross-Reference OEM Part Numbers

• Cylinder Head Gasket: 11141-02B60
• Cylinder Base Gasket: 11241-02B00-H17
• Intake Gasket: 13156-02B00-H17
• Exhaust Pipe Gasket: 14181-02B00-H17

Vehicle Fitments

• 1986 Suzuki RM80
• 1987 Suzuki RM80
