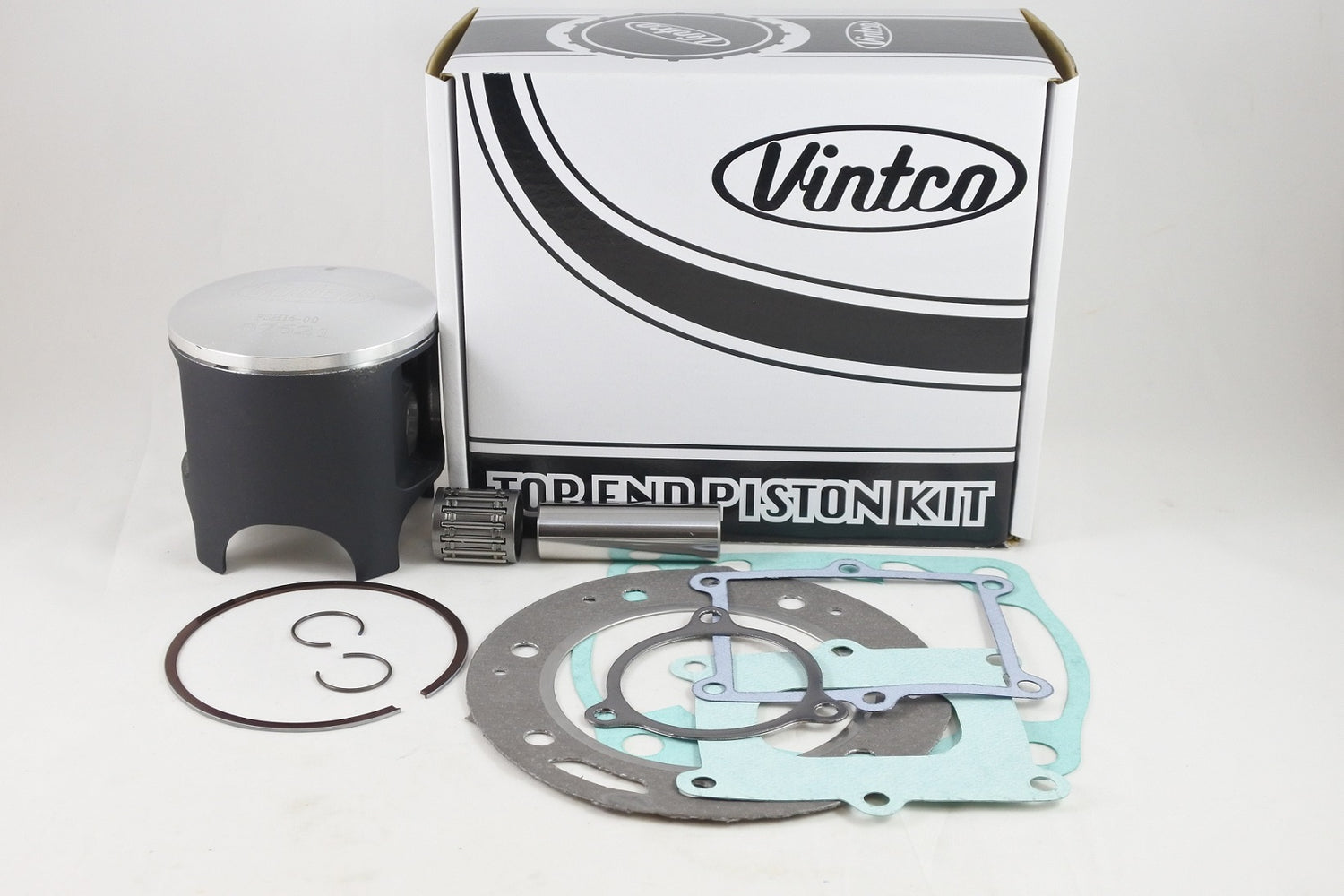

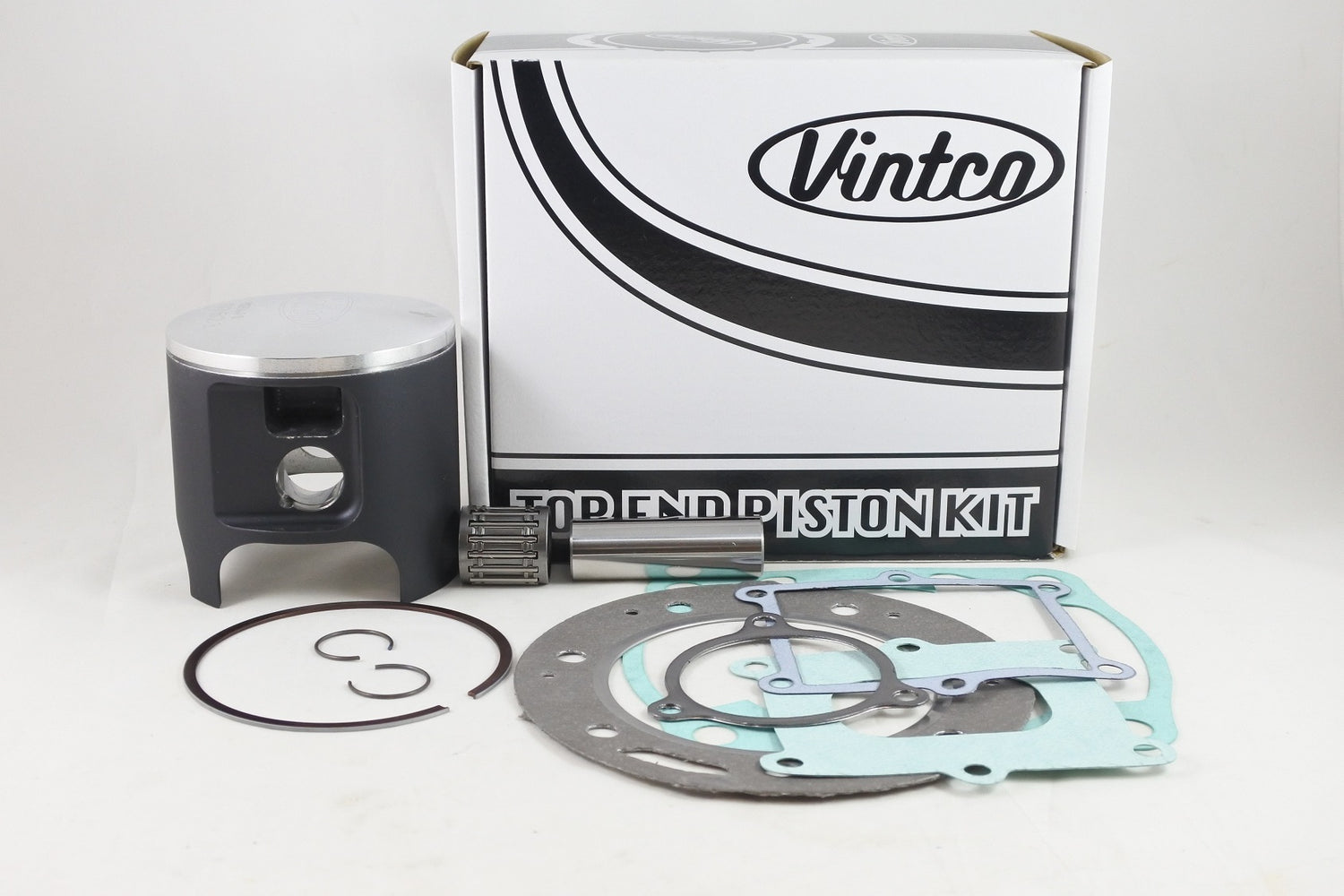

This VintCo top end piston kit is designed for 1985-1988 Honda CR500 models and provides the main components required for a top-end rebuild in a standard 88.92 mm size. The kit includes a piston, rings, pin, clips, wrist pin bearing, and a full top-end gasket set comprising the head gasket, base gasket, intake gasket and exhaust pipe gasket. Components are manufactured using modern materials and production methods for OEM-equivalent or better fit and performance.

Features

• Complete top-end rebuild kit
• Includes piston, rings, pin and clips
• Includes wrist pin bearing
• Includes head gasket
• Includes base gasket
• Includes intake gasket
• Includes exhaust pipe gasket
• Includes OEM part number references for exact fitment
• Kit price includes a 10% saving compared with purchasing the components individually
• Additional size options are available

Specifications

• VintCo Part Number: KTH30-00
• Piston size: 88.92 mm
• Size: Standard
• Piston clearance: 0.08 mm
• Piston construction: Forged
• Coating: MOS2
• Country of manufacture: Germany

Cross-Reference OEM Part Numbers

• Head gasket: 12254-ML3-881
• Base gasket: 12191-MAC-680
• Intake gasket: 14132-KA5-306
• Intake gasket: 14133-KA5-306 (not for 1988)
• Exhaust pipe gasket: 18291-KA5-306

Vehicle Fitments

• 1985 Honda CR500
• 1986 Honda CR500
• 1987 Honda CR500
• 1988 Honda CR500
