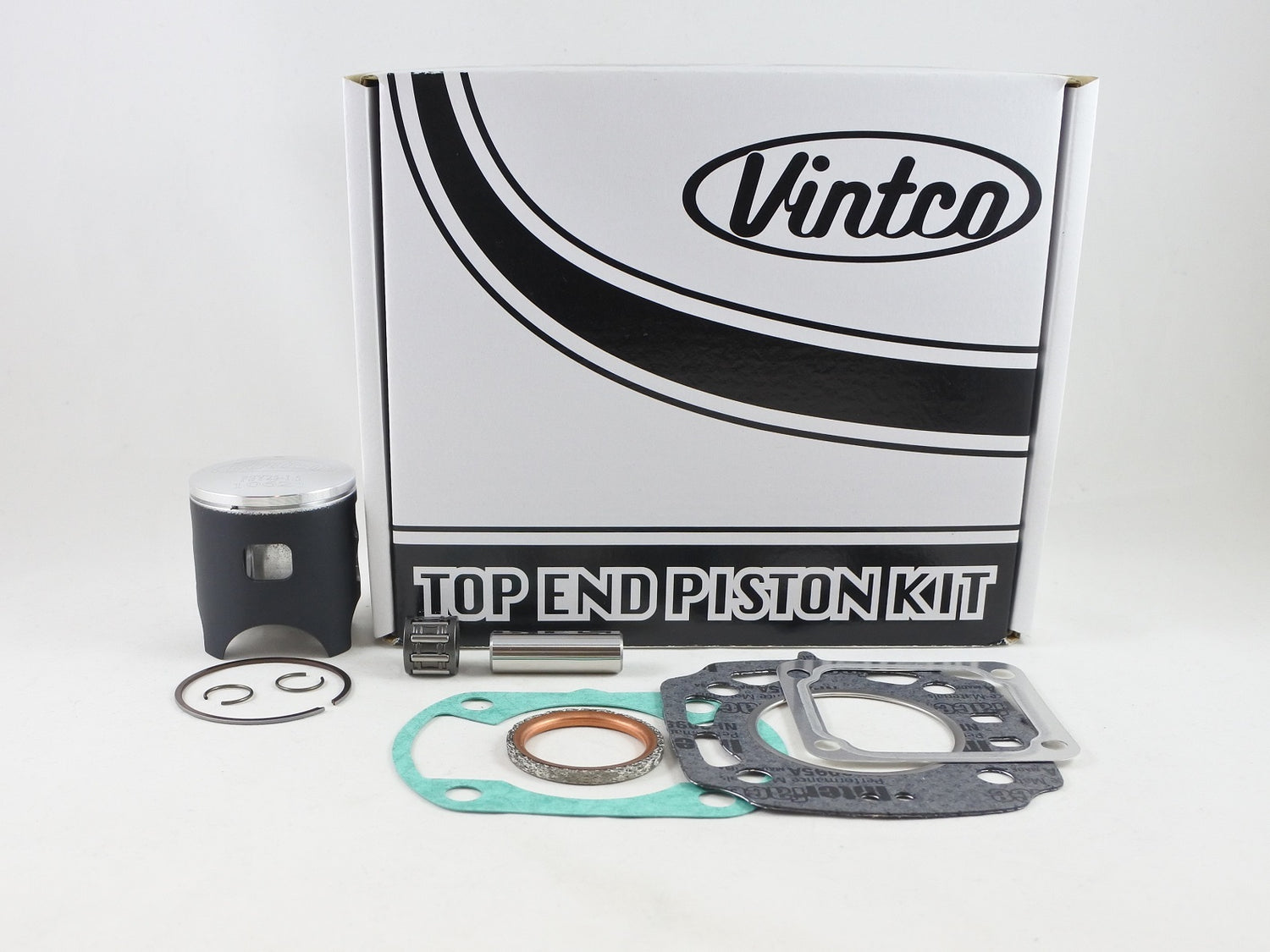

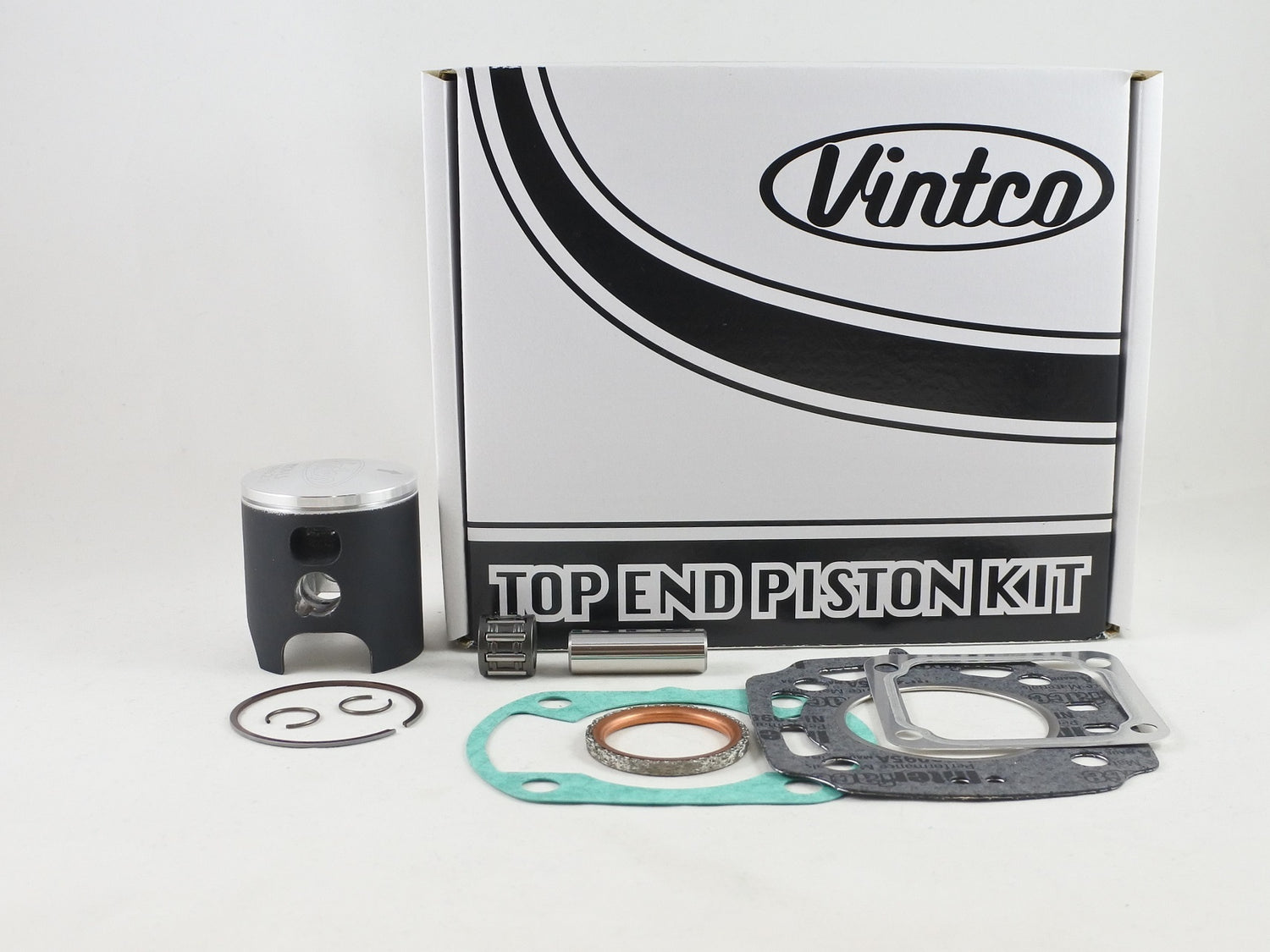

VintCo KTY60-1.5 is a top end piston kit for Yamaha YZ80 models, listed for 1985-1986 applications. The kit includes a forged piston, cylinder head gasket, cylinder base gasket, reed valve gasket, exhaust pipe gasket and wrist pin bearing, providing the main components required for a top end rebuild.

Features

• Complete top end kit for Yamaha YZ80 applications
• Supplied with piston, cylinder head gasket, cylinder base gasket, reed valve gasket, exhaust pipe gasket and wrist pin bearing
• Piston coating intended to assist initial running-in
• Kit pricing reflects a 10% reduction compared with purchasing the items individually

Specifications

• VintCo Part Number: KTY60-1.5
• Product type: Top End Piston Kit
• Piston size: 49.5 mm
• Oversize: 1.5 mm over
• Piston measurement: 49.45 mm
• Clearance: 0.05 mm
• Piston construction: Forged
• Country of manufacture: Germany
• Piston coating: MOS2

Cross-Reference OEM Part Numbers

• Cylinder Head Gasket: 58T-11181-01-00
• Cylinder Base Gasket: 4V0-11351-10-00
• Reed Valve Gasket: 39K-13621-01-00
• Exhaust Pipe Gasket: 4BR-14613-00-00

Vehicle Fitments

• 1985 Yamaha YZ80
