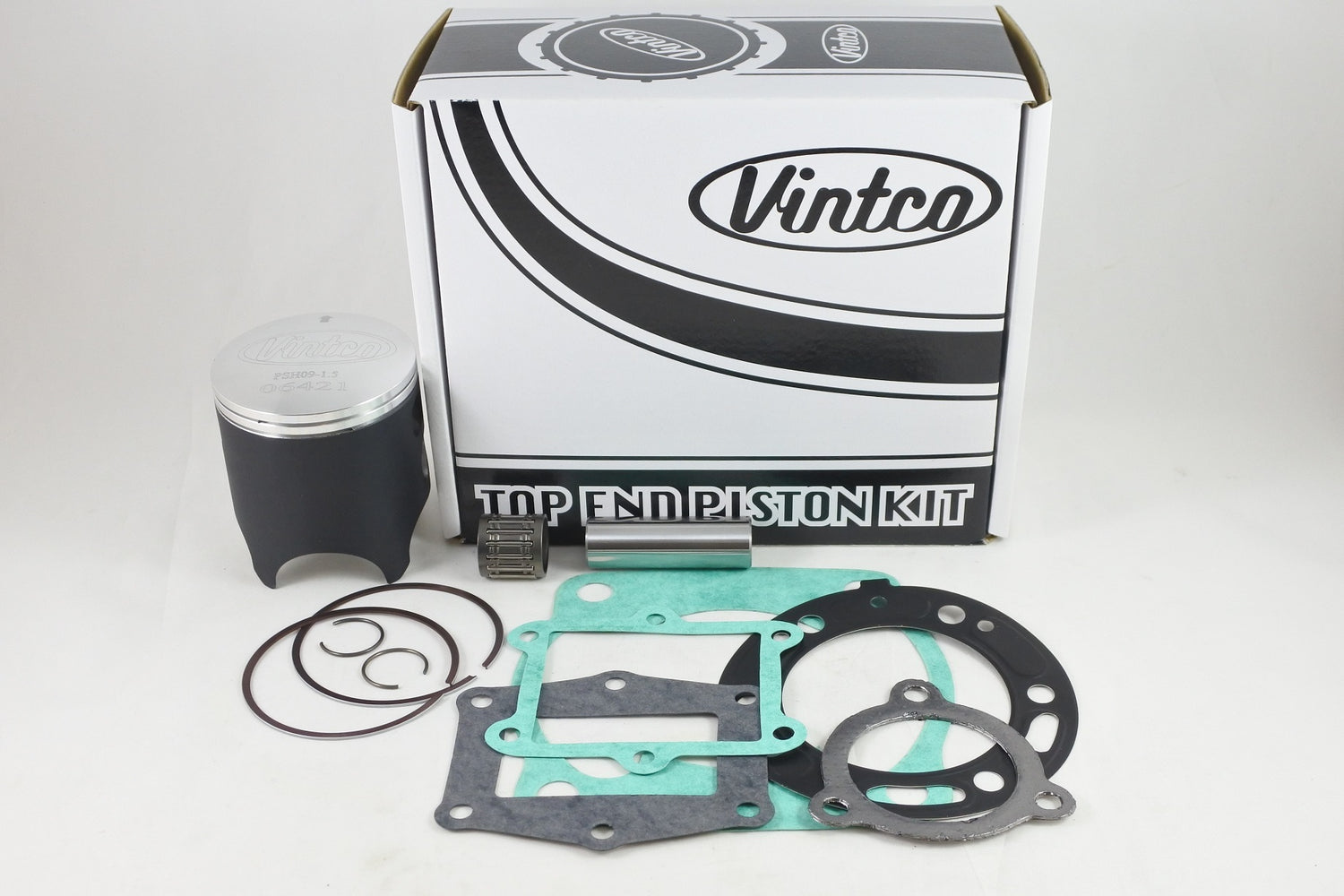

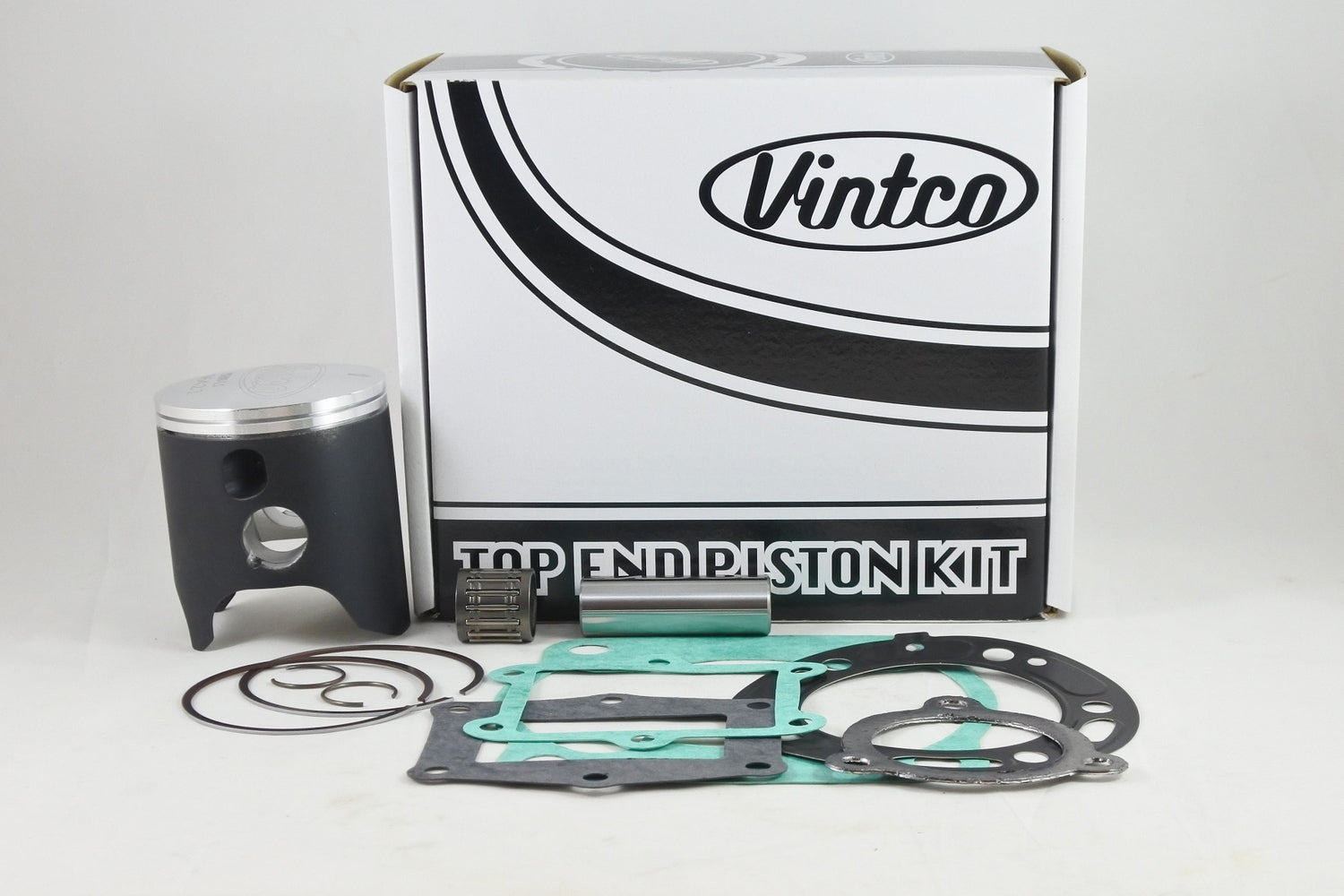

VintCo KTH22-1.5 is a complete top end piston kit for 1985-1986 Honda ATC250R models, supplied in 67.5 mm (+1.5 mm over) size for top-end rebuilds. The kit includes a forged piston with rings, pin and clips, a wrist pin bearing, and a full top-end gasket set comprising head, base, intake and exhaust gaskets. It is manufactured using modern materials and production methods for OEM-equivalent fit and performance, and the kit price is 10% lower than purchasing the components individually.

Features

• Complete kit for top-end rebuilds
• Includes piston, rings, pin and clips
• Includes wrist pin bearing
• Includes full top-end gasket set
• Includes head gasket
• Includes base gasket
• Includes intake gaskets
• Includes exhaust pipe gasket
• Designed for OEM-equivalent fit and performance
• Additional size options available
• Kit pricing includes a 10% saving compared with buying the items individually

Specifications

• VintCo Part Number: KTH22-1.5
• Product type: Top End Piston Kit
• Kit size: 67.5 mm
• Oversize: +1.5 mm
• Piston diameter: 67.44 mm
• Piston clearance: 0.06 mm
• Piston construction: Forged
• Piston coating: MOS2
• Country of manufacture: Germany

Cross-Reference OEM Part Numbers

• Head gasket: 12254-KS7-881
• Base gasket: 12191-HA2-306
• Intake gasket: 14132-KAE-000
• Intake gasket: 14133-430-306
• Exhaust pipe gasket: 18291-430-306

Vehicle Fitments

• 1985 Honda ATC250R
• 1986 Honda ATC250R
