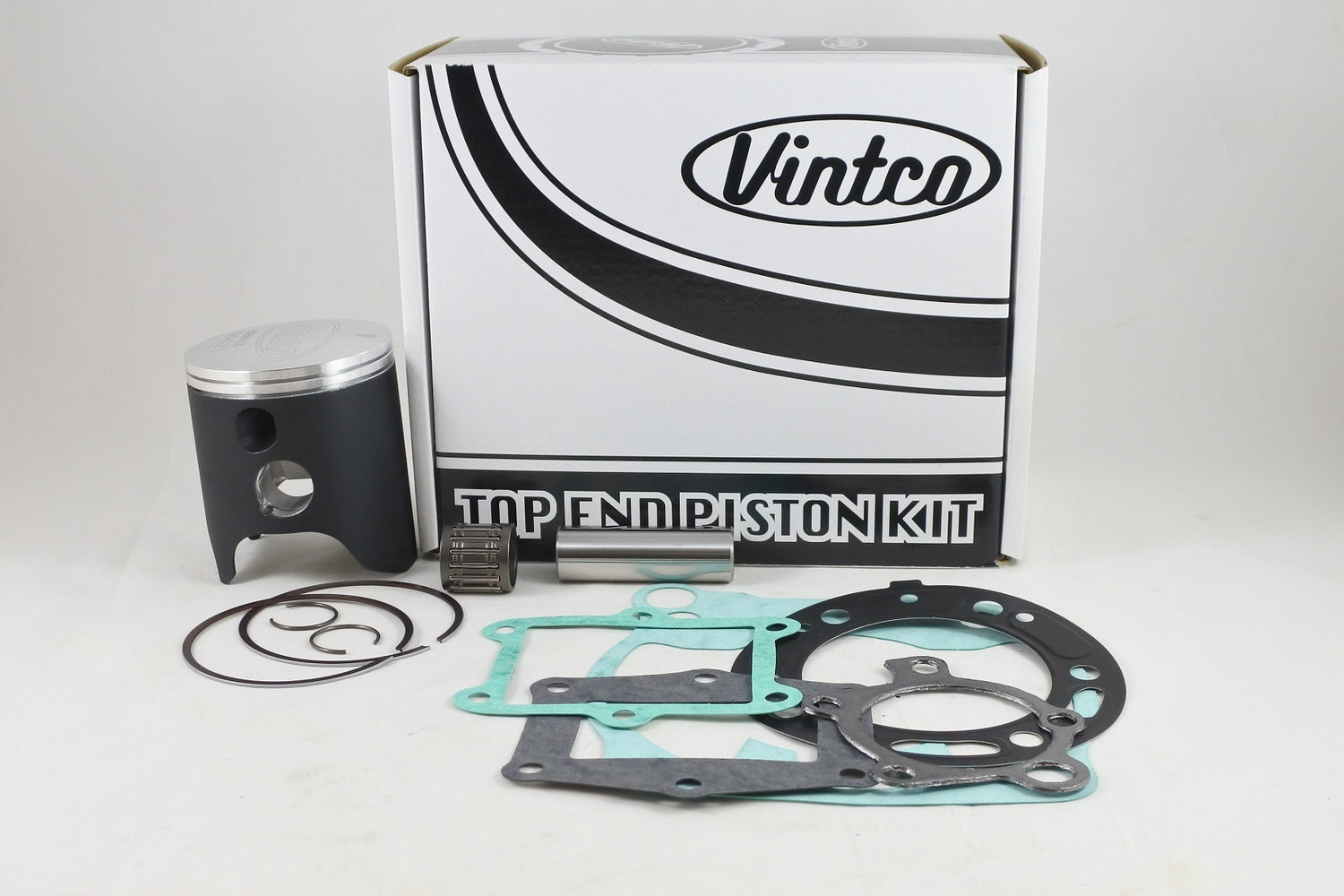

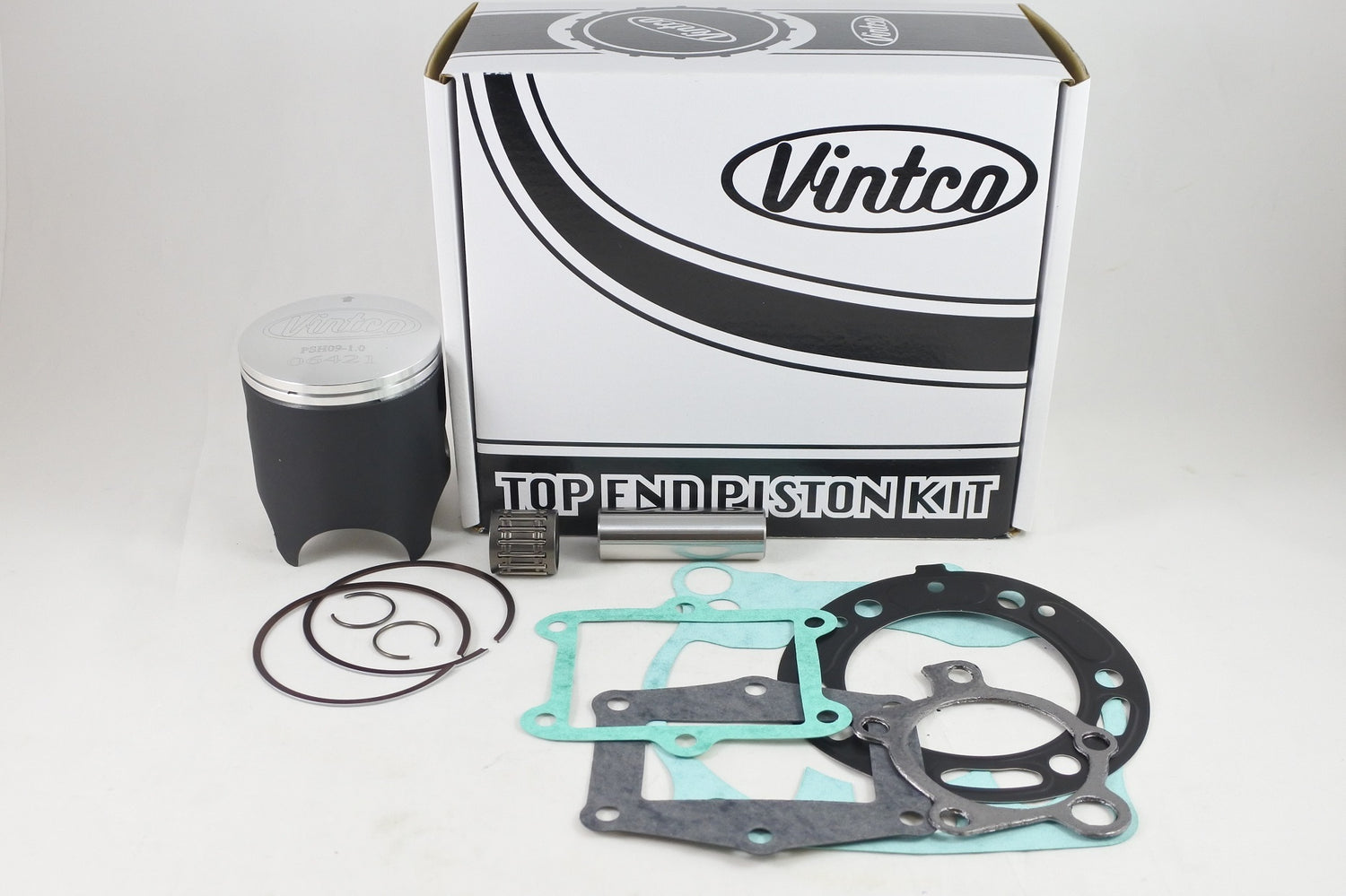

This VintCo top end piston kit is for the 1985 Honda CR250 and is supplied as a complete rebuild set for the top end. It includes a piston kit with piston, rings, pin and clips, a wrist pin bearing, and a full top-end gasket kit covering the head, base, intake and exhaust. The kit uses modern manufacturing methods and materials for OEM-referenced fitment and performance, and is supplied as a 67.0 mm, +1.0 mm oversize assembly.

Features

• Complete top end rebuild kit
• Suits 1985 Honda CR250
• Includes piston, rings, pin and clips
• Includes wrist pin bearing
• Includes full top-end gasket kit
• Includes head gasket
• Includes base gasket
• Includes intake gaskets
• Includes exhaust pipe gasket
• Forged piston
• Made in Germany
• MOS2-coated piston for running-in
• OEM-referenced fitment
• Kit price includes a 10% saving compared with purchasing the parts individually
• Additional size options are available

Specifications

• VintCo Part Number: KTH25-1.0
• Product Type: Top End Piston Kit
• Piston size: 67.0 mm
• Oversize: +1.0 mm
• Piston measurement: 66.94 mm
• Piston clearance: 0.06 mm

Cross-Reference OEM Part Numbers

• Head gasket: 12254-KS7-881
• Base gasket: 12191-KS7-880
• Intake gasket: 14132-KAE-000
• Intake gasket: 14133-430-306
• Exhaust pipe gasket: 18291-KA4-770

Vehicle Fitments

• 1985 Honda CR250
