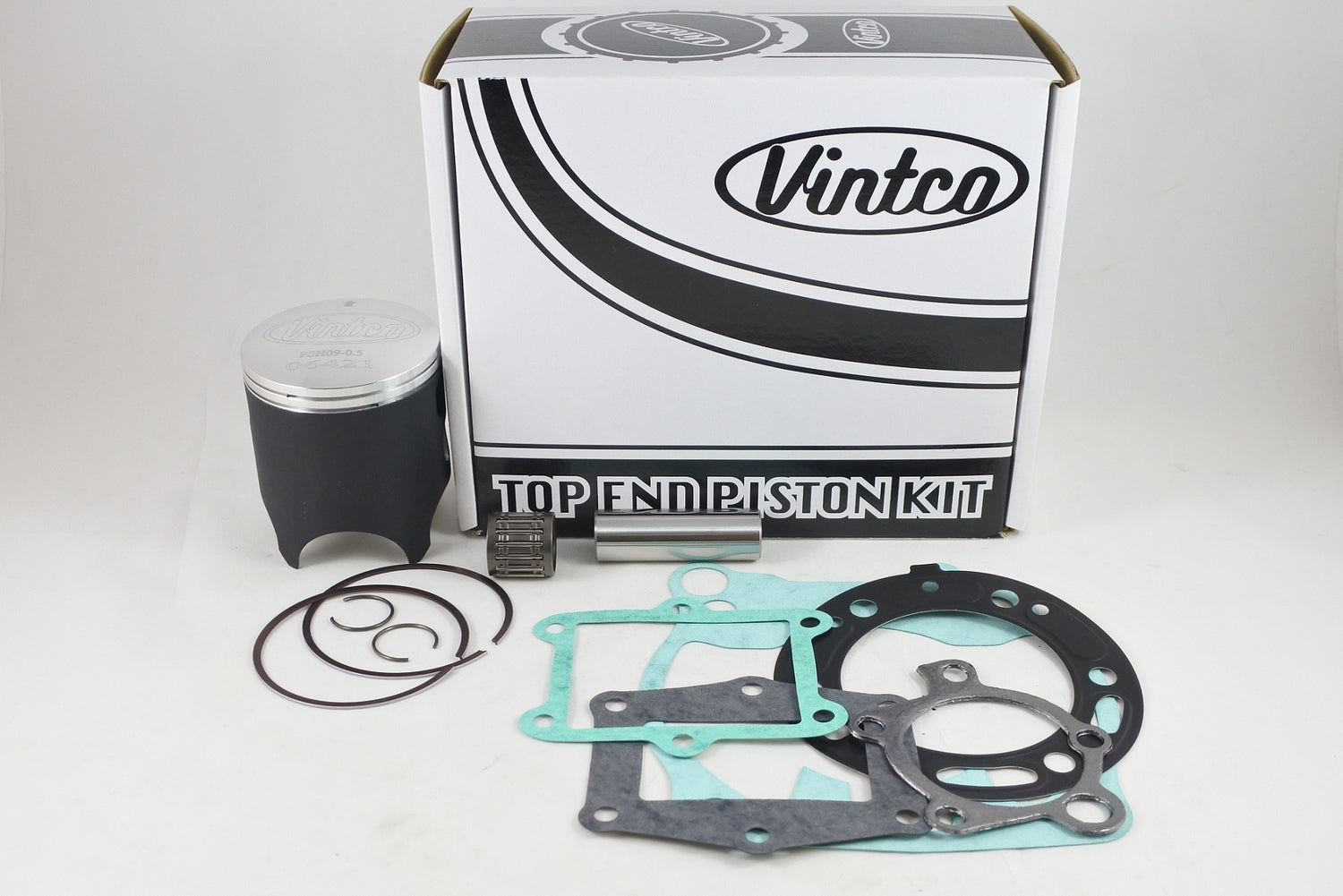

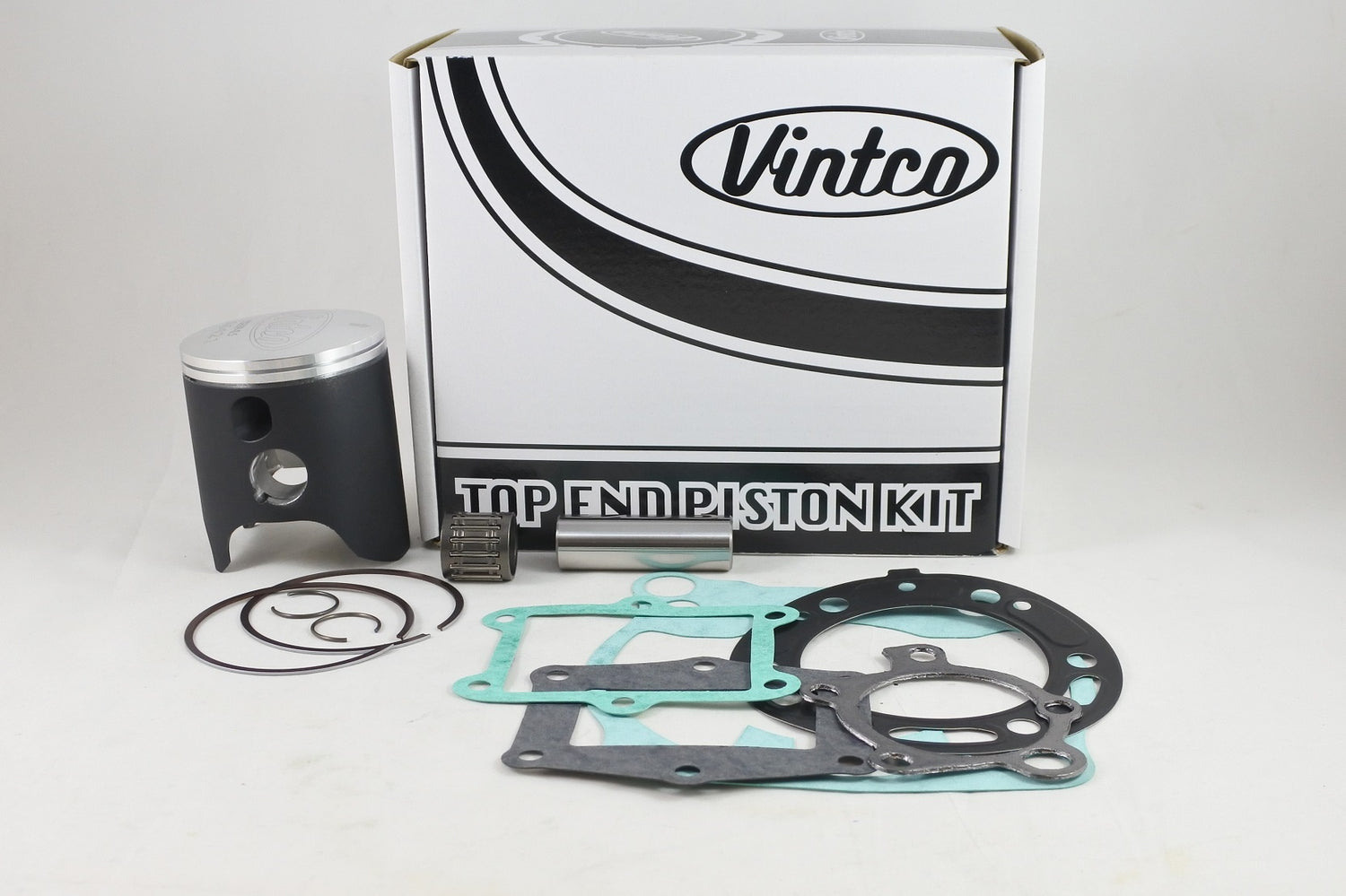

This VintCo top end piston kit is a complete rebuild set for the 1985 Honda CR250. It includes a piston kit with piston, rings, pin and clips, a wrist pin bearing, and a full top-end gasket set comprising the head gasket, base gasket, intake gaskets and exhaust pipe gasket. The kit is manufactured using modern materials and production methods for OEM-equivalent or better fitment and performance.

Features

• Complete top end rebuild kit
• Includes piston, rings, pin and clips
• Includes wrist pin bearing
• Includes full top-end gasket set
• Designed for 1985 Honda CR250 rebuild applications
• Kit pricing is 10% lower than purchasing the components individually
• Additional size options are available

Specifications

• VintCo Part Number: KTH25-0.5
• Product type: Top End Piston Kit
• Piston type: Forged
• Country of manufacture: Germany
• Piston coating: MOS2
• Nominal size: 66.5 mm
• Oversize: +0.5 mm
• Piston diameter: 66.44 mm
• Clearance: 0.06 mm

Cross-Reference OEM Part Numbers

• Head gasket: 12254-KS7-881
• Base gasket: 12191-KS7-880
• Intake gasket: 14132-KAE-000
• Intake gasket: 14133-430-306
• Exhaust pipe gasket: 18291-KA4-770

Vehicle Fitments

• 1985 Honda CR250
