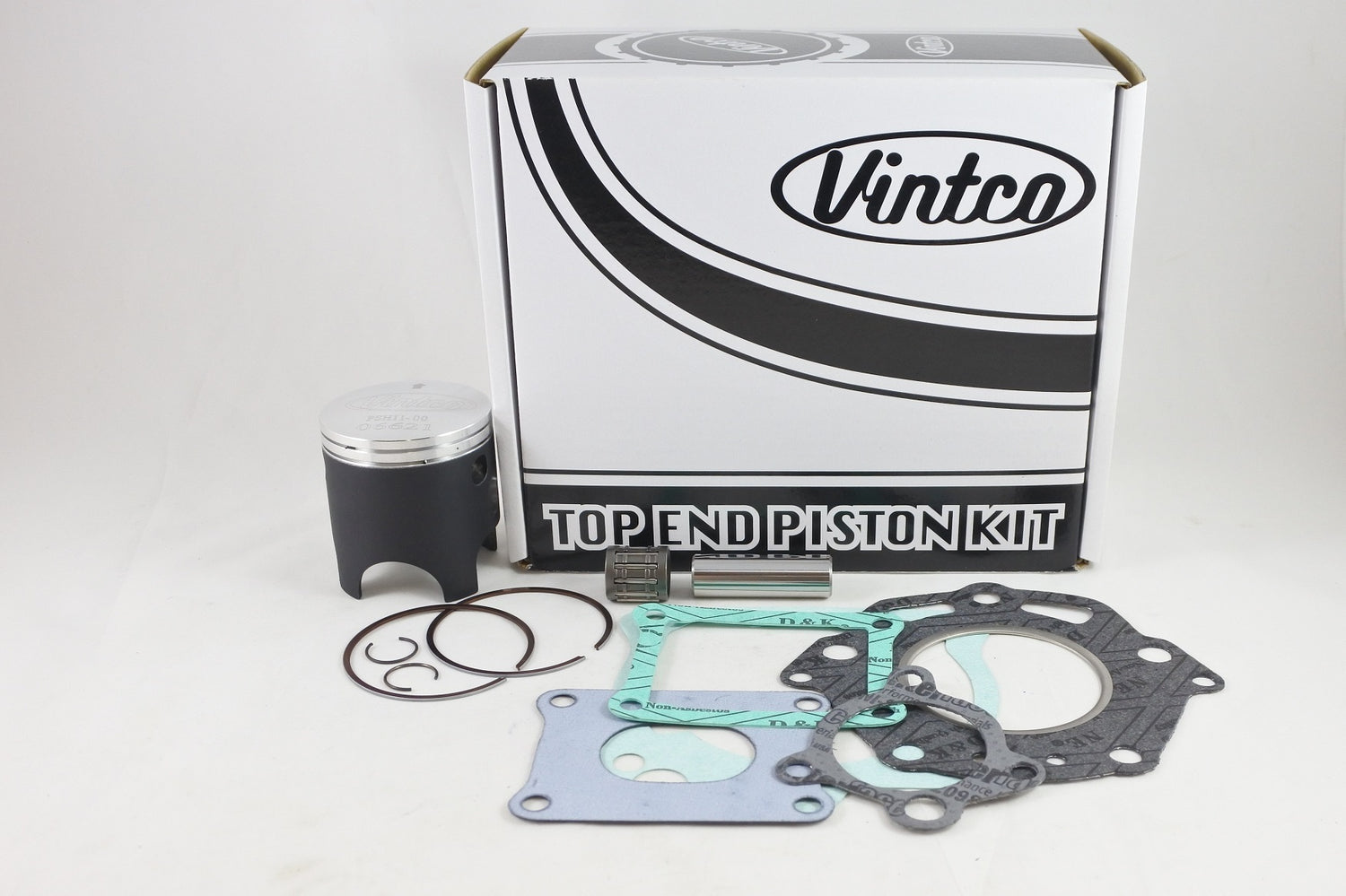

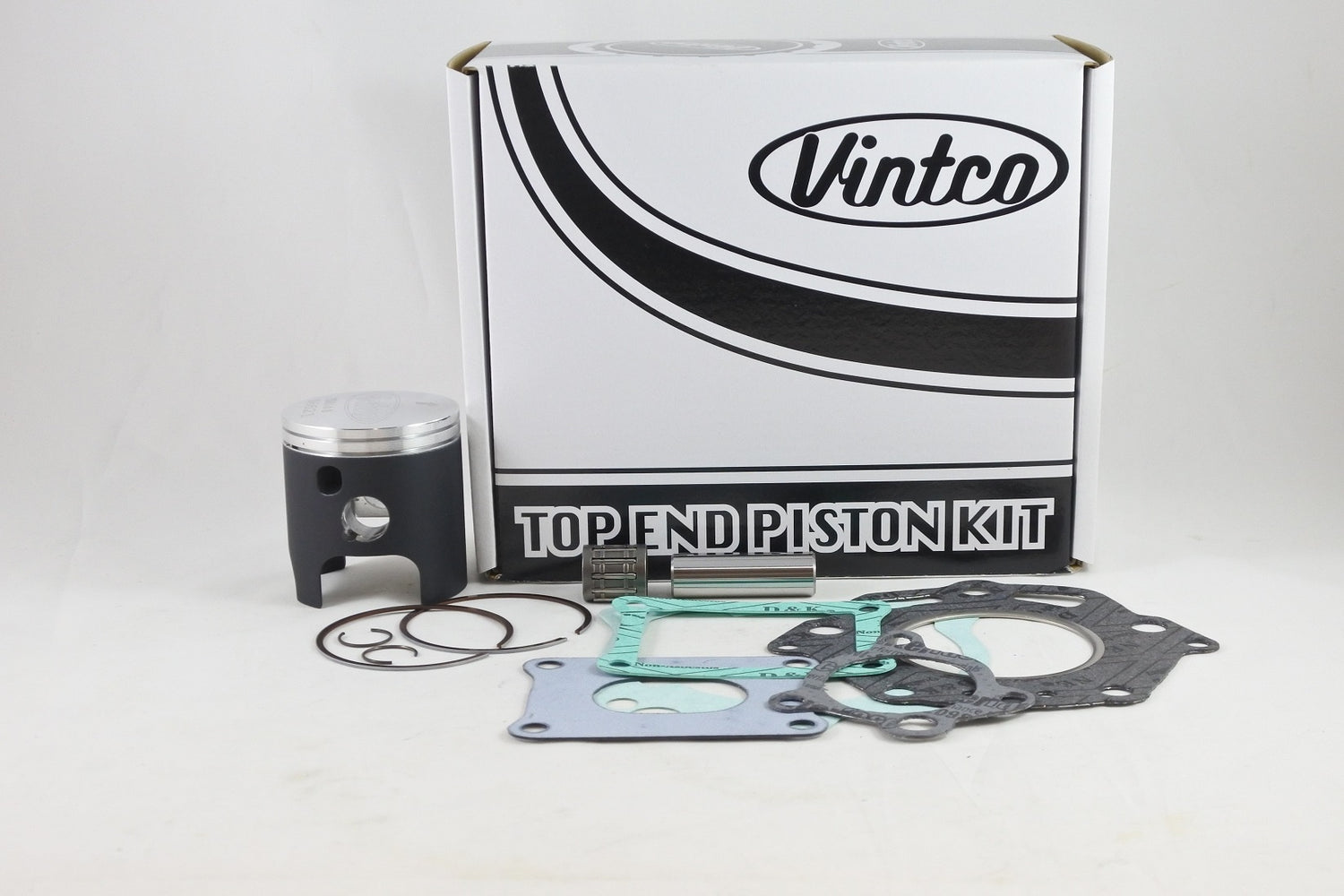

VintCo top end piston kit KTH16-00 is a complete rebuild kit for the 1985 Honda CR125. Supplied in the standard 53.94 mm size, it includes a piston kit with piston, rings, pin and clips, a top end bearing, and a full top-end gasket set covering the head, base, intake and exhaust, providing the parts required for a top-end rebuild.

Features

• Complete top-end rebuild kit
• Includes piston, rings, pin and clips
• Includes top end bearing
• Includes full top-end gasket kit
• Head gasket included
• Base gasket included
• Intake gaskets included
• Exhaust gasket included
• Manufactured using modern materials and manufacturing techniques for OEM-equivalent or better fitment and performance
• Kit price includes a 10% saving compared with purchasing the components individually
• Additional size options are available

Specifications

• VintCo Part Number: KTH16-00
• Bore size: 53.94 mm
• Size: Standard
• Piston clearance: 0.06 mm
• Piston construction: Forged
• Piston coating: MOS2
• Country of manufacture: Germany

Cross-Reference OEM Part Numbers

• Head gasket: 12251-KA3-308
• Base gasket: 12191-KA3-307
• Intake gasket: 14131-KA3-306
• Intake gasket: 14132-KA3-306
• Exhaust pipe gasket: 18359-KA3-306

Vehicle Fitments

• 1985 Honda CR125
