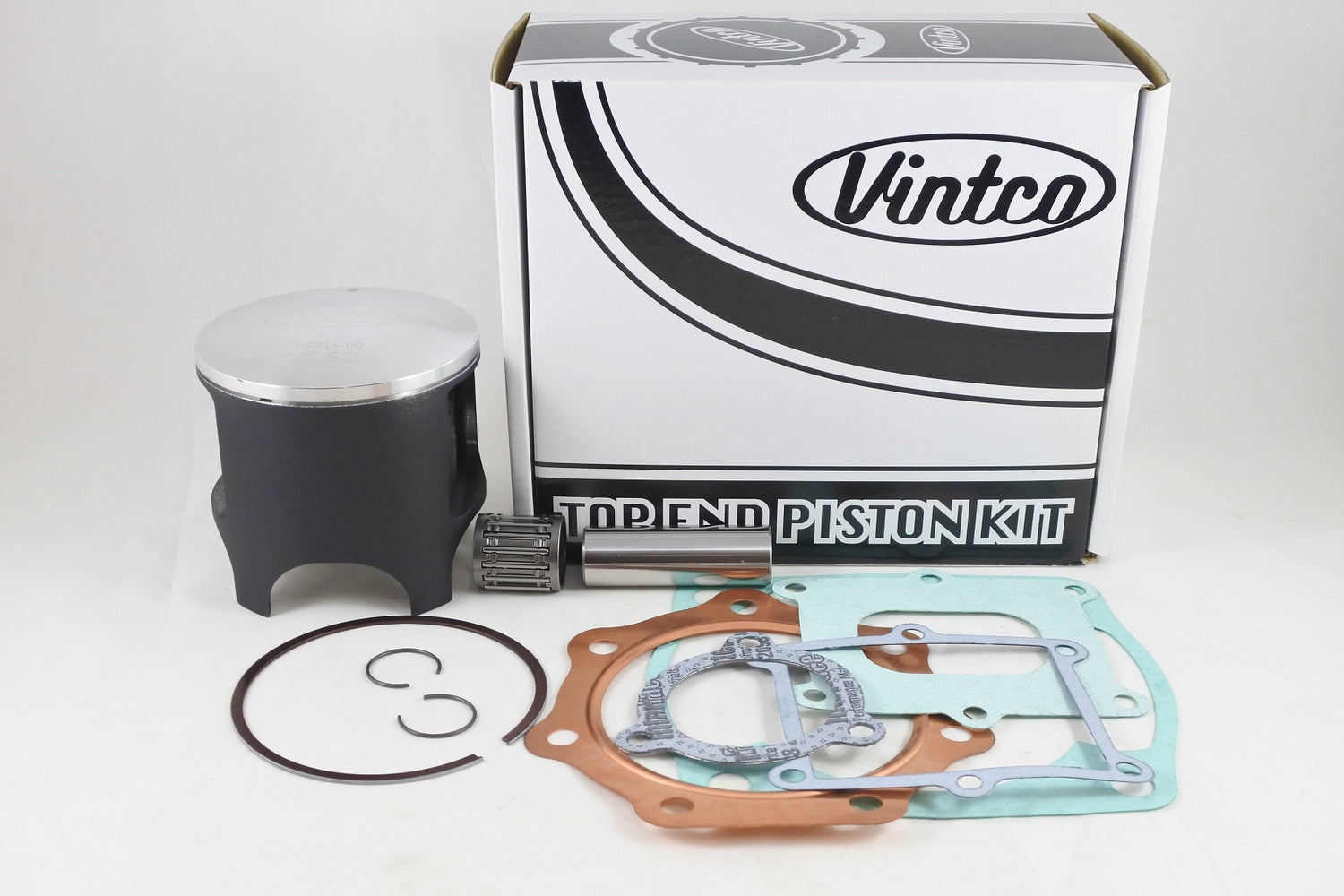

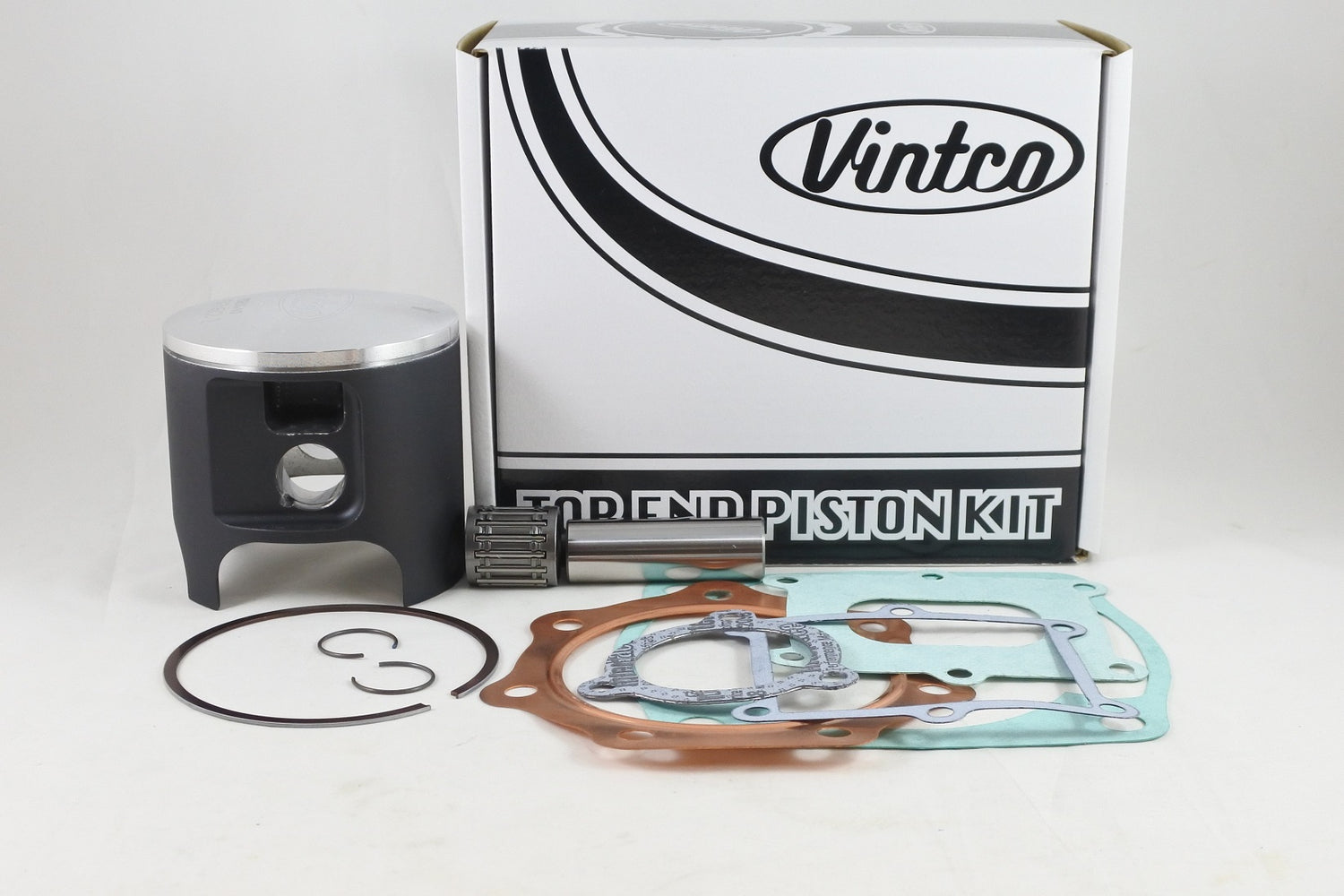

VintCo top end piston kit KTH29-00 is a complete rebuild kit for the 1984 Honda CR500. It includes a piston kit with piston, rings, pin and clips, a top end bearing (wrist pin bearing), and a full top-end gasket set comprising head, base, intake and exhaust gaskets. The components are produced using modern materials and manufacturing methods for OEM-equivalent fit and performance. The kit price represents a 10% saving compared with purchasing the parts individually.

Features

• Complete top end rebuild kit
• Includes piston, rings, pin and clips
• Includes top end bearing / wrist pin bearing
• Includes head gasket, base gasket, intake gaskets and exhaust pipe gasket
• Intended to simplify top end rebuild work
• Designed for OEM-equivalent fit and performance
• MOS2 coating supports the running-in period

Specifications

• VintCo Part Number: KTH29-00
• Piston size: Standard
• Piston diameter: 88.92 mm
• Piston clearance: 0.08 mm
• Piston construction: Forged
• Piston coating: MOS2
• Country of manufacture: Germany

Cross-Reference OEM Part Numbers

• Head gasket: 12254-KA5-770
• Base gasket: 12191-MAC-680
• Intake gasket: 14132-KA5-306
• Intake gasket: 14133-KA5-306
• Exhaust pipe gasket: 18291-KA5-307

Vehicle Fitments

• 1984 Honda CR500
