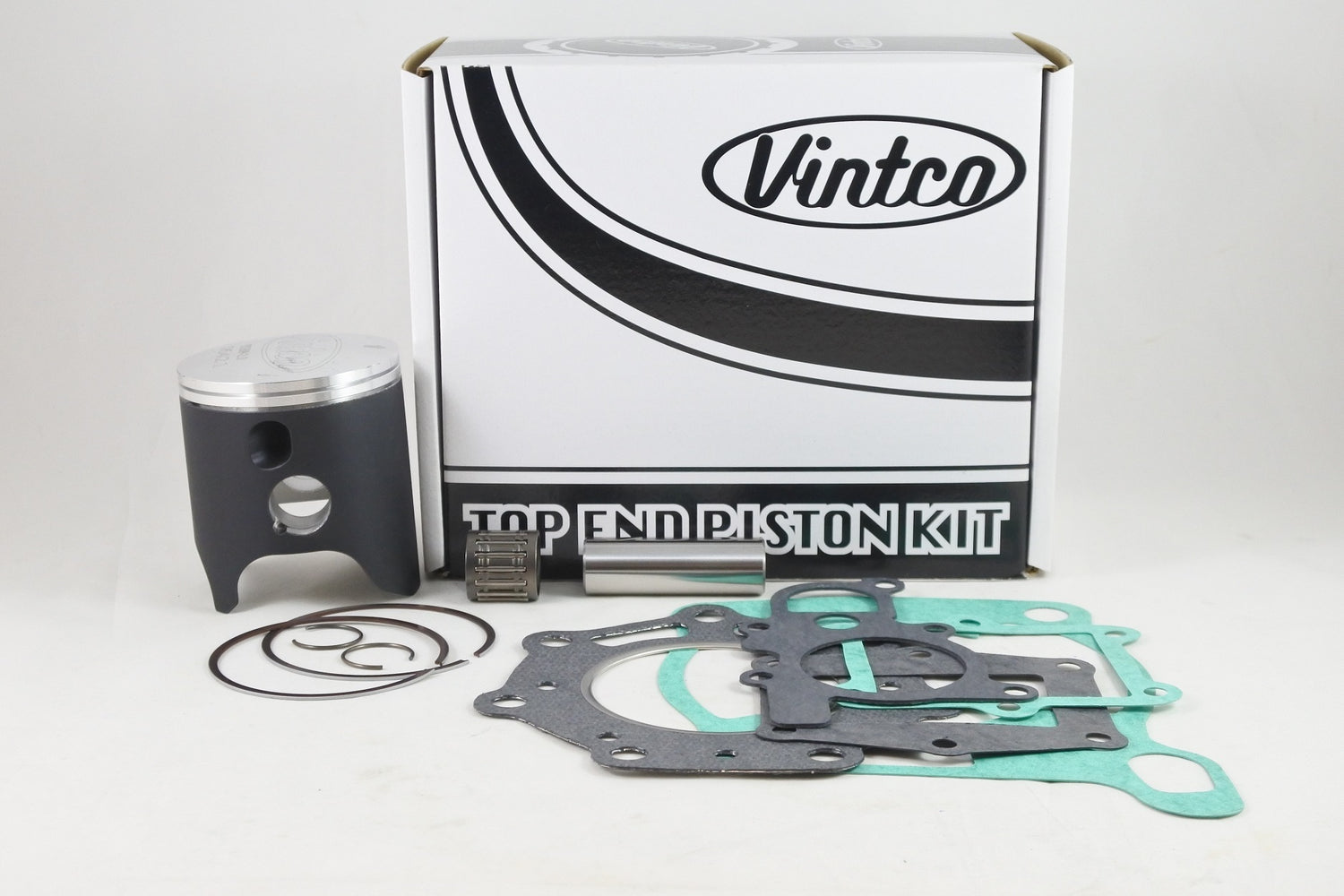

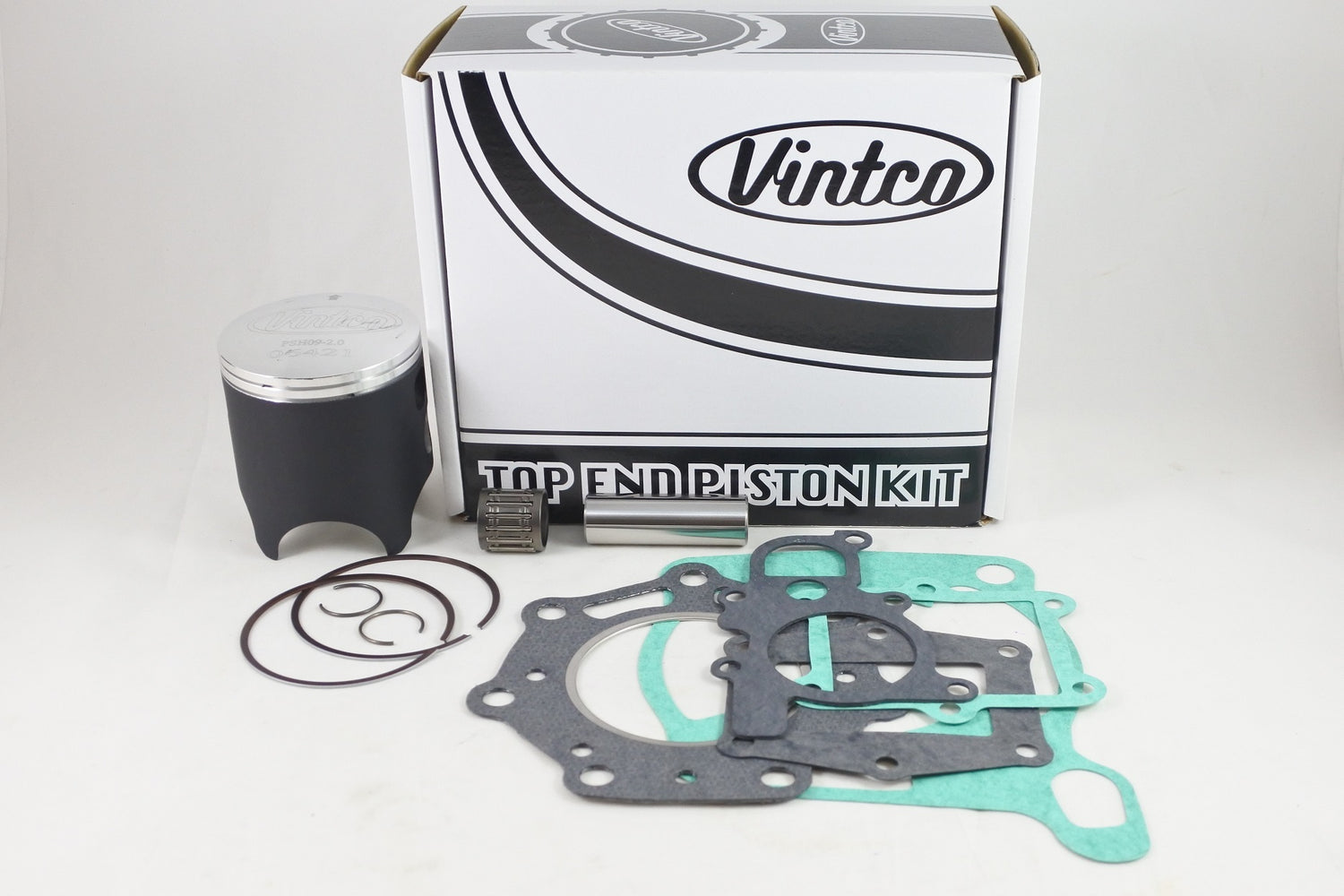

The VintCo KTH24-2.0 top end piston kit is a complete rebuild kit for the 1984 Honda CR250, supplied in a 68.0 mm, +2.0 mm oversize configuration. It includes a VintCo piston kit with piston, rings, pin and clips, along with a wrist pin bearing and a full top-end gasket set covering the head gasket, base gasket, intake gaskets and exhaust pipe gasket. The components are manufactured using modern materials and production methods for OEM-style fitment and performance.

Features

• Complete top end rebuild kit
• Includes piston, rings, pin and clips
• Includes wrist pin bearing
• Includes full top-end gasket kit
• Includes head gasket
• Includes base gasket
• Includes intake gaskets
• Includes exhaust pipe gasket
• Intended for 1984 Honda CR250 applications
• Kit price includes a 10% saving compared with purchasing the components individually
• Additional size options are available

Specifications

• VintCo Part Number: KTH24-2.0
• Piston size: 67.94 mm
• Oversize: +2.0 mm over
• Nominal kit size: 68.0 mm
• Piston clearance: 0.06 mm
• Piston construction: Forged
• Piston origin: Made in Germany
• Piston coating: MOS2 break-in coating

Cross-Reference OEM Part Numbers

• Head gasket: 12254-KA4-308
• Base gasket: 12191-KA4-307
• Intake gasket: 14132-KAE-000
• Intake gasket: 14133-430-306
• Exhaust pipe gasket: 18291-KA4-306

Vehicle Fitments

• 1984 Honda CR250
