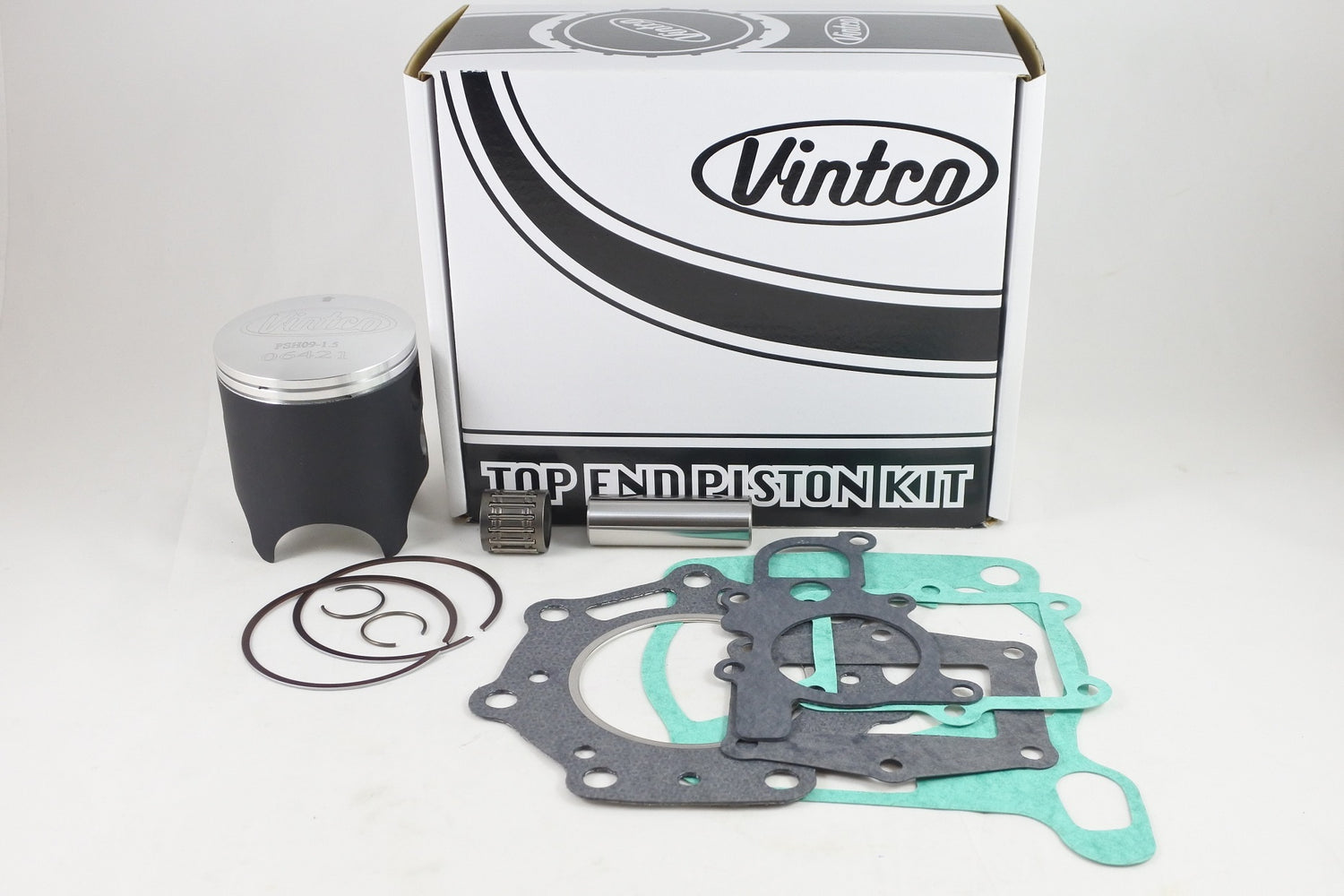

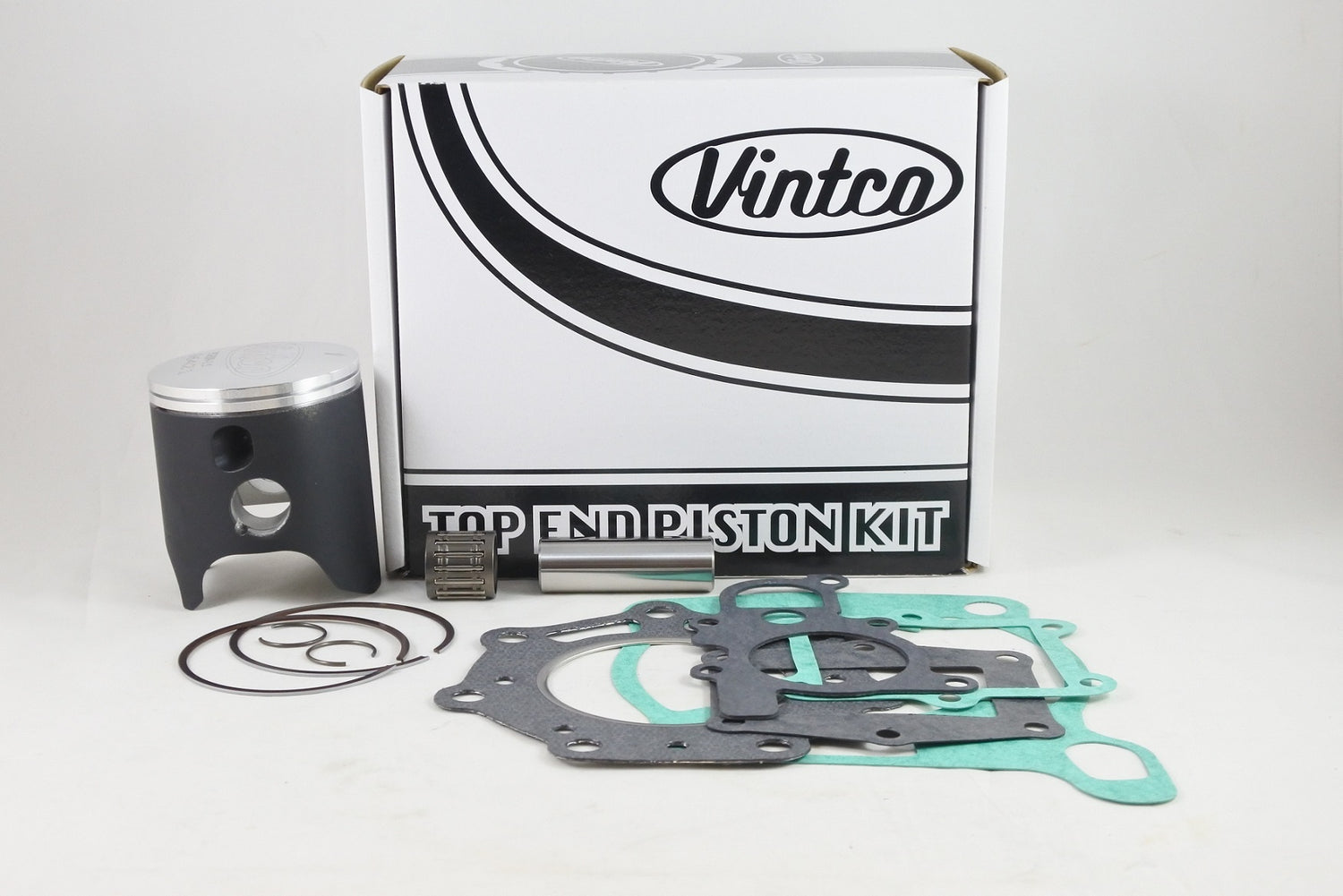

This VintCo top end piston kit is a complete rebuild set for the 1984 Honda CR250 in 67.5 mm (+1.5 mm over) size. It includes a piston kit with piston, rings, pin and clips, a wrist pin bearing, and a full top-end gasket kit with head gasket, base gasket, two intake gaskets and an exhaust pipe gasket. The components are produced using modern materials and manufacturing methods for OEM-equivalent fitment and performance, and the kit price is 10% lower than purchasing the parts individually. Additional size options are also available.

Features

• Complete top end rebuild kit
• Includes piston, rings, pin and clips
• Includes wrist pin bearing
• Includes full top-end gasket kit
• Includes head gasket, base gasket, two intake gaskets and exhaust pipe gasket
• Intended for rebuild work on the 1984 Honda CR250
• Kit price includes a 10% saving compared with buying the components individually
• Additional size options are available

Specifications

• VintCo Part Number: KTH24-1.5
• Item category: Top End Piston Kits
• Kit size designation: 67.5 mm
• Piston diameter: 67.44 mm
• Oversize: +1.5 mm
• Piston clearance: 0.06 mm
• Piston construction: Forged
• Piston coating: MOS2
• Country of manufacture: Germany

Cross-Reference OEM Part Numbers

• Head gasket: 12254-KA4-308
• Base gasket: 12191-KA4-307
• Intake gasket: 14132-KAE-000
• Intake gasket: 14133-430-306
• Exhaust pipe gasket: 18291-KA4-306

Vehicle Fitments

• 1984 Honda CR250
