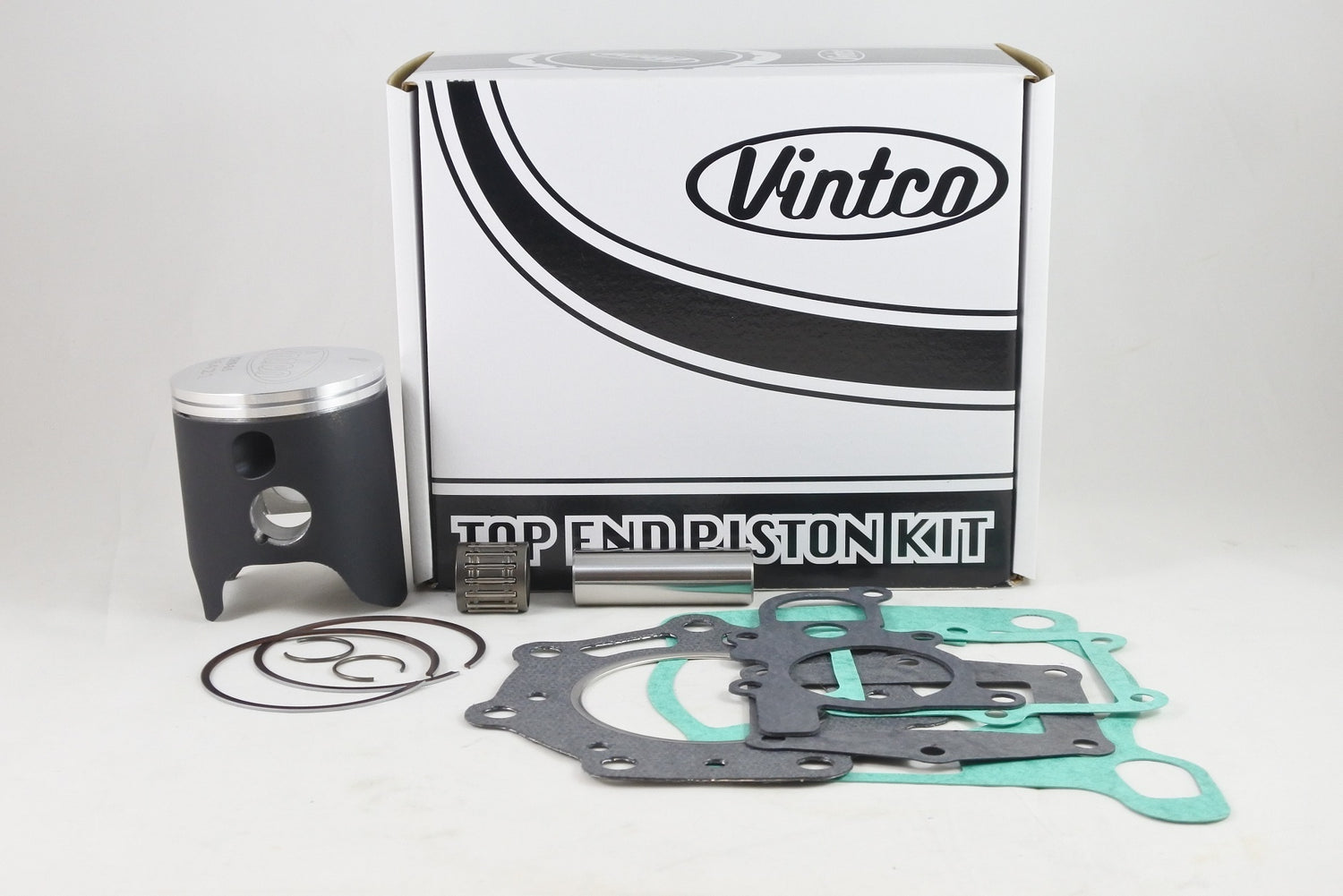

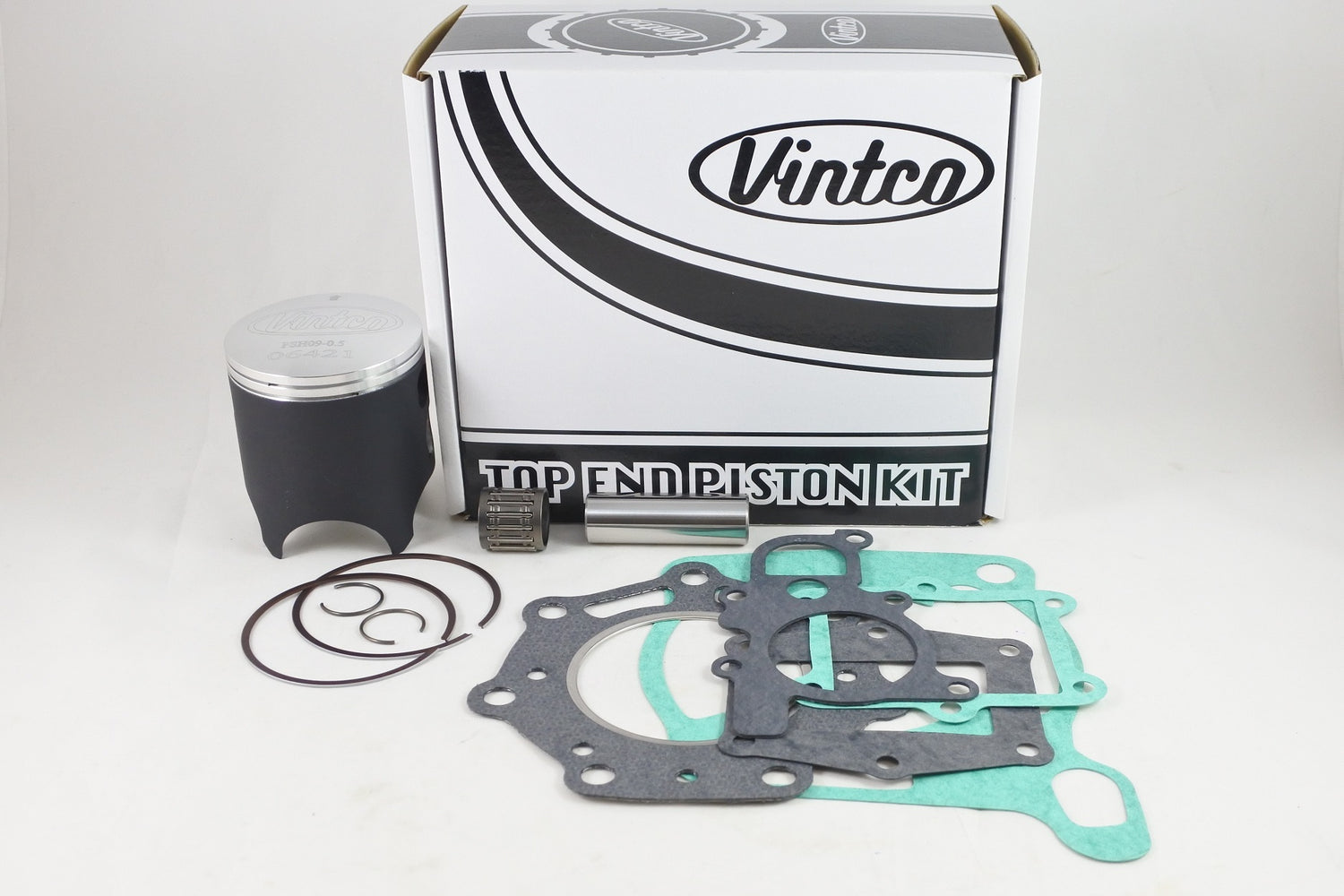

VintCo top end piston kit KTH24-0.5 is a complete rebuild kit for the 1984 Honda CR250 in 66.5 mm (+0.5 mm over) size. It includes a forged piston with rings, pin and clips, a wrist pin bearing, and a full top-end gasket set comprising head, base, intake and exhaust gaskets. This version is produced using modern materials and manufacturing methods for OEM-referenced fitment, is priced 10% lower than purchasing the components individually, and is one of several size options available.

Features

• Complete top end rebuild kit
• Includes piston, rings, pin and clips
• Includes wrist pin bearing
• Includes head gasket, base gasket, two intake gaskets and exhaust pipe gasket
• MOS2-coated piston for running-in
• Intended for 1984 Honda CR250 top end rebuilds
• OEM part numbers supplied for fitment reference
• Additional size options available

Specifications

• VintCo Part Number: KTH24-0.5
• Nominal size: 66.5 mm
• Oversize: +0.5 mm
• Piston diameter: 66.44 mm
• Clearance: 0.06 mm
• Piston construction: Forged
• Piston coating: MOS2
• Country of manufacture: Germany

Cross-Reference OEM Part Numbers

• 12254-KA4-308 - Head gasket
• 12191-KA4-307 - Base gasket
• 14132-KAE-000 - Intake gasket
• 14133-430-306 - Intake gasket
• 18291-KA4-306 - Exhaust pipe gasket

Vehicle Fitments

• 1984 Honda CR250
