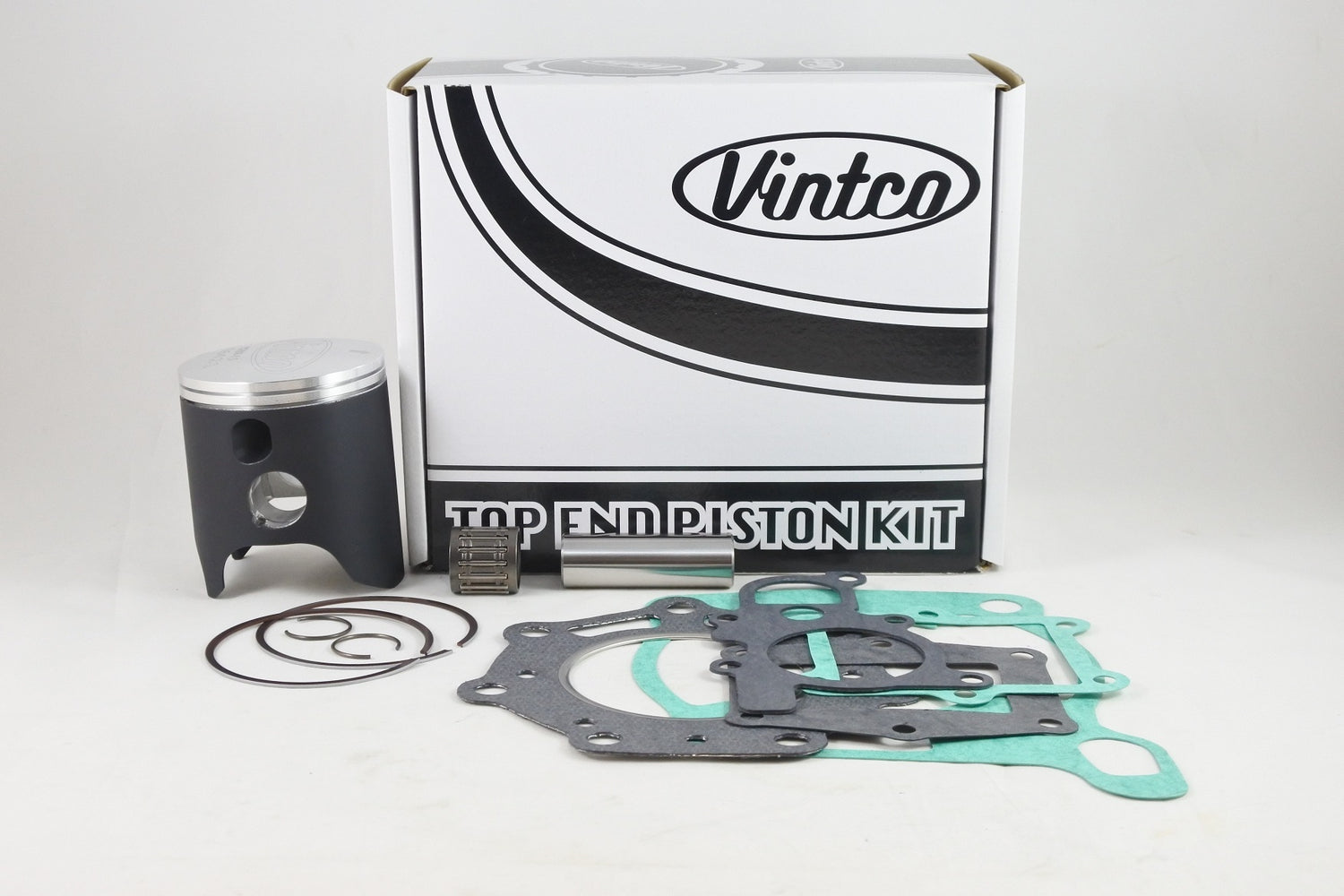

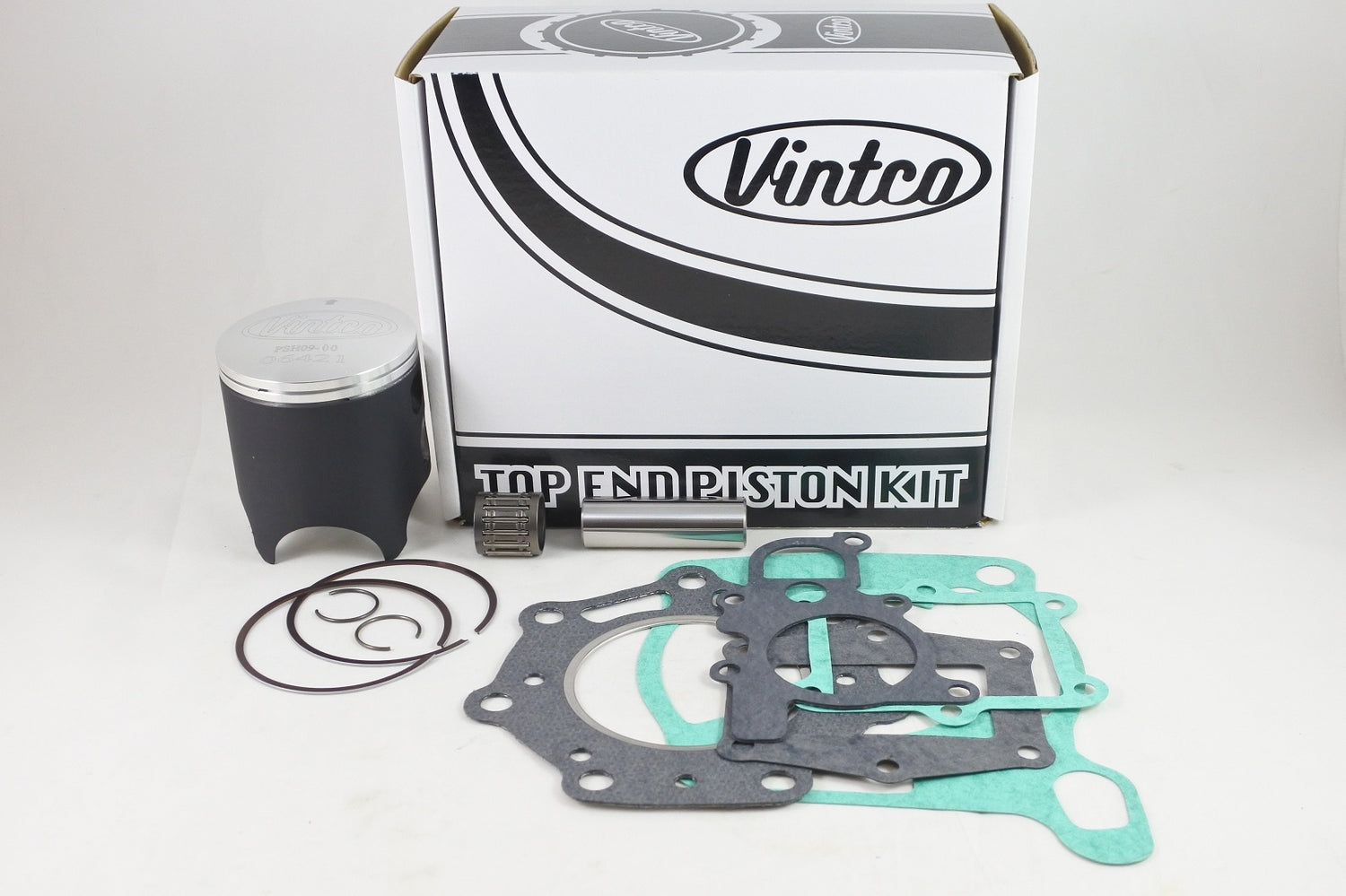

VintCo top end piston kit KTH24-00 is a complete rebuild kit for the 1984 Honda CR250 in standard 65.94 mm size. It includes a forged piston with rings, pin and clips, a top end bearing, and a full top-end gasket set with head, base, intake and exhaust gaskets. The components are produced using modern materials and manufacturing methods for OEM-equivalent fit and performance, and the kit is priced at 10% less than purchasing the items individually.

Features

• Complete top-end rebuild kit
• Includes piston, rings, pin and clips
• Includes top end bearing
• Includes head gasket
• Includes base gasket
• Includes intake gaskets
• Includes exhaust pipe gasket
• Intended to simplify top-end rebuild work
• OEM part number cross-reference provided for exact fitment
• Additional size options are available

Specifications

• VintCo Part Number: KTH24-00
• Piston size: 65.94 mm
• Size: Standard
• Piston clearance: 0.06 mm
• Piston construction: Forged
• Piston coating: MOS2
• Country of manufacture: Germany

Cross-Reference OEM Part Numbers

• Head gasket: 12254-KA4-308
• Base gasket: 12191-KA4-307
• Intake gasket: 14132-KAE-000
• Intake gasket: 14133-430-306
• Exhaust pipe gasket: 18291-KA4-306

Vehicle Fitments

• 1984 Honda CR250
