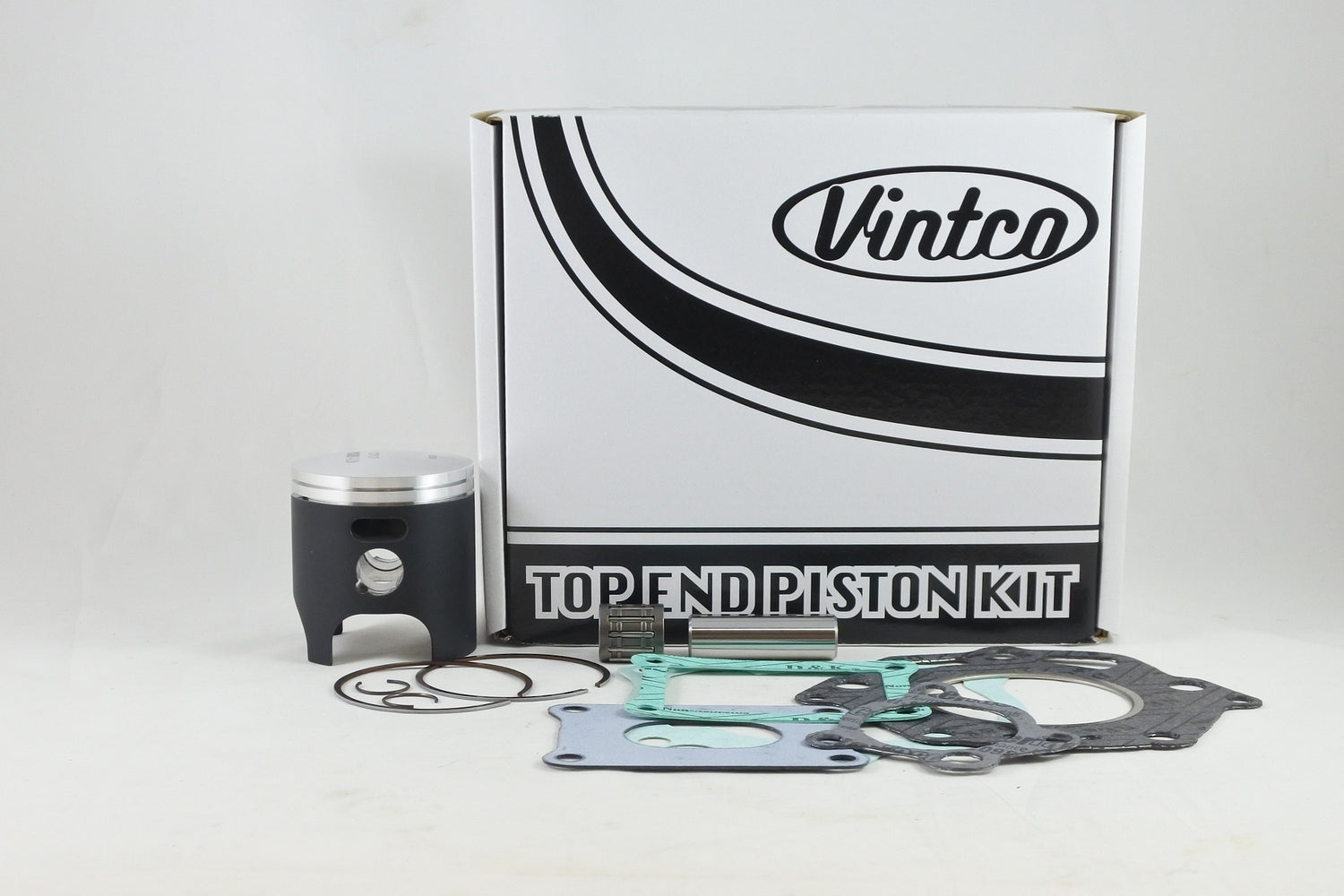

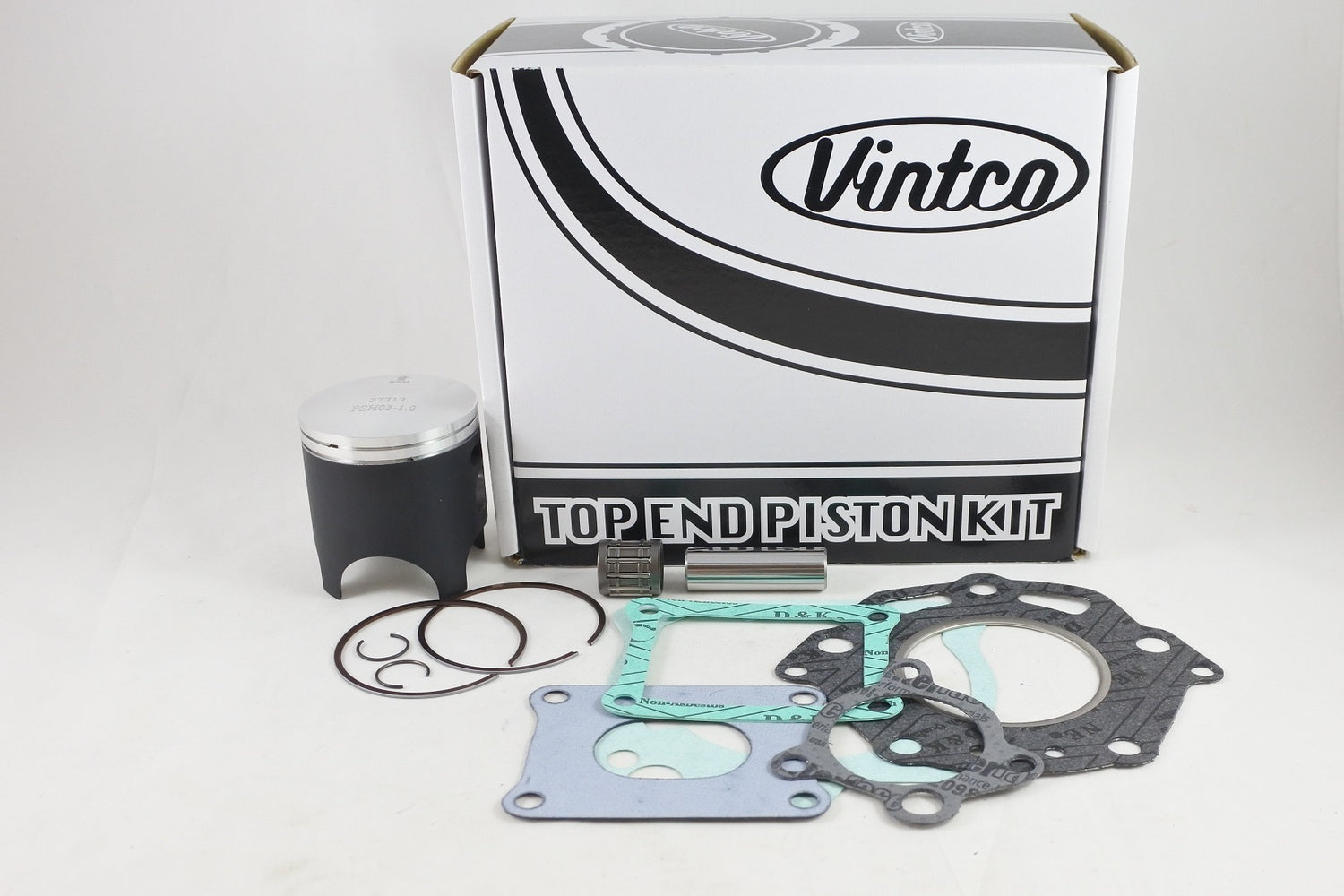

This VintCo top end piston kit is designed for the 1984 Honda CR125 and provides the parts required for a complete top-end rebuild in 56.5 mm (+1.0 mm over) size. The kit includes a VintCo piston assembly with piston, rings, pin and clips, a top end/wrist pin bearing, and a full top-end gasket set covering the head, base, intake and exhaust pipe. Components are produced using modern materials and manufacturing techniques to provide OEM-level fitment and performance, and the kit price represents a 10% saving compared with purchasing the parts individually. Additional size options are also available.

Features

• Complete top-end rebuild kit
• Includes VintCo piston kit with piston, rings, pin and clips
• Includes top end bearing
• Includes wrist pin bearing
• Includes full top-end gasket kit
• Gasket kit includes head gasket, base gasket, intake gaskets and exhaust pipe gasket
• OEM part number cross-reference provided for exact fitment
• Built using modern materials and manufacturing techniques
• Kit price includes a 10% saving over individual items
• Suits 1984 Honda CR125 applications
• Additional size options available

Specifications

• VintCo Part Number: KTH15-1.0
• Product type: Top End Piston Kit
• Nominal size: 56.5 mm
• Oversize: +1.0 mm
• Piston diameter: 56.44 mm
• Piston clearance: 0.06 mm
• Piston construction: Forged
• Piston coating: MOS2
• Country of manufacture: Germany

Cross-Reference OEM Part Numbers

• 12251-KA3-308 - Head gasket
• 12191-KA3-307 - Base gasket
• 14131-KA3-306 - Intake gasket
• 14132-KA3-306 - Intake gasket
• 18359-KA3-306 - Exhaust pipe gasket

Vehicle Fitments

• 1984 Honda CR125
