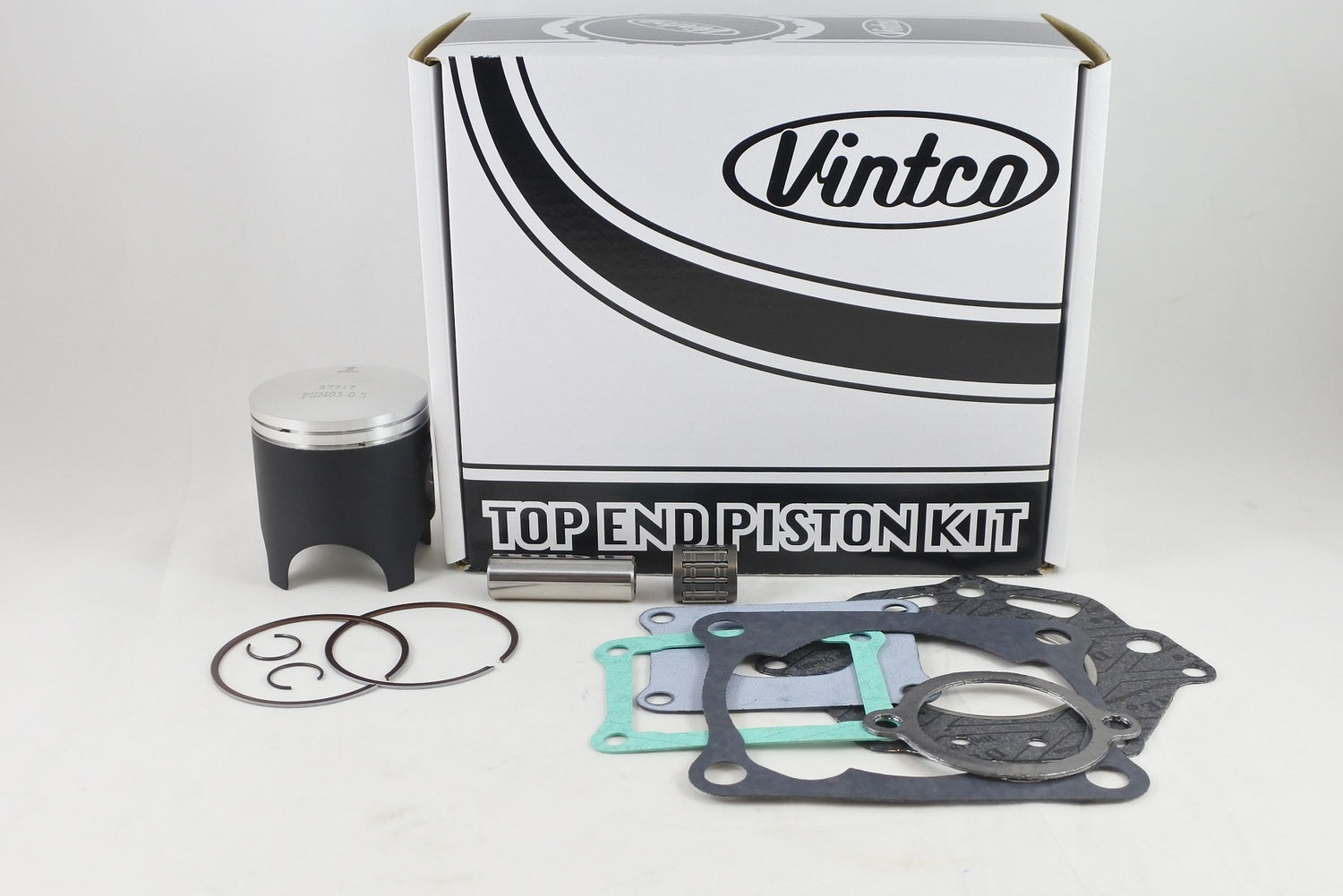

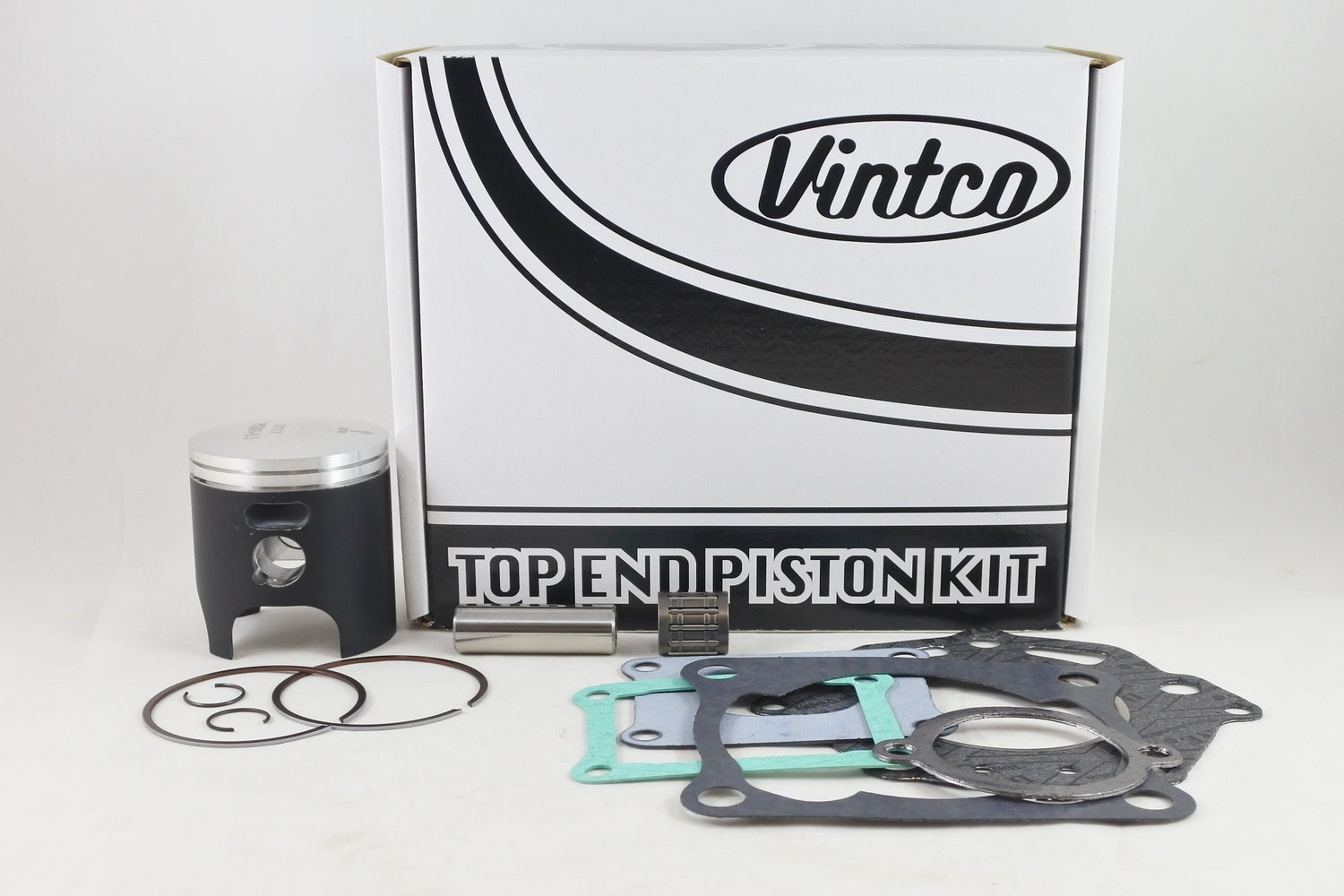

This VintCo top end piston kit is a complete rebuild set for the 1983 Honda CR125. It includes a piston kit with piston, rings, pin and clips, a top end bearing, and a full top-end gasket set with head, base, intake and exhaust pipe gaskets. The components are manufactured using modern materials and production methods for OEM-equivalent or better fitment and performance, and the kit price is 10% lower than purchasing the parts individually. Additional size options are also available.

Features

• Complete top-end rebuild kit
• Includes piston, rings, pin and clips
• Includes top end bearing
• Includes head gasket
• Includes base gasket
• Includes intake gaskets
• Includes exhaust pipe gasket
• Piston coating supports break-in
• Manufactured using modern materials and manufacturing techniques
• Designed for OEM-equivalent or better fitment and performance
• Kit pricing is 10% lower than purchasing the components individually
• Additional size options available

Specifications

• VintCo Part Number: KTH14-0.5
• Nominal piston size: 56.0 mm
• Oversize: +0.5 mm
• Piston measurement: 55.94 mm
• Clearance: 0.06 mm
• Piston construction: Forged
• Country of manufacture: Germany
• Piston coating: MOS2

Cross-Reference OEM Part Numbers

• Head gasket: 12251-KA3-308
• Base gasket: 12191-KA3-306
• Intake gasket: 14131-KA3-306
• Intake gasket: 14132-KA3-306
• Exhaust pipe gasket: 18291-KA3-306

Vehicle Fitments

• 1983 Honda CR125
