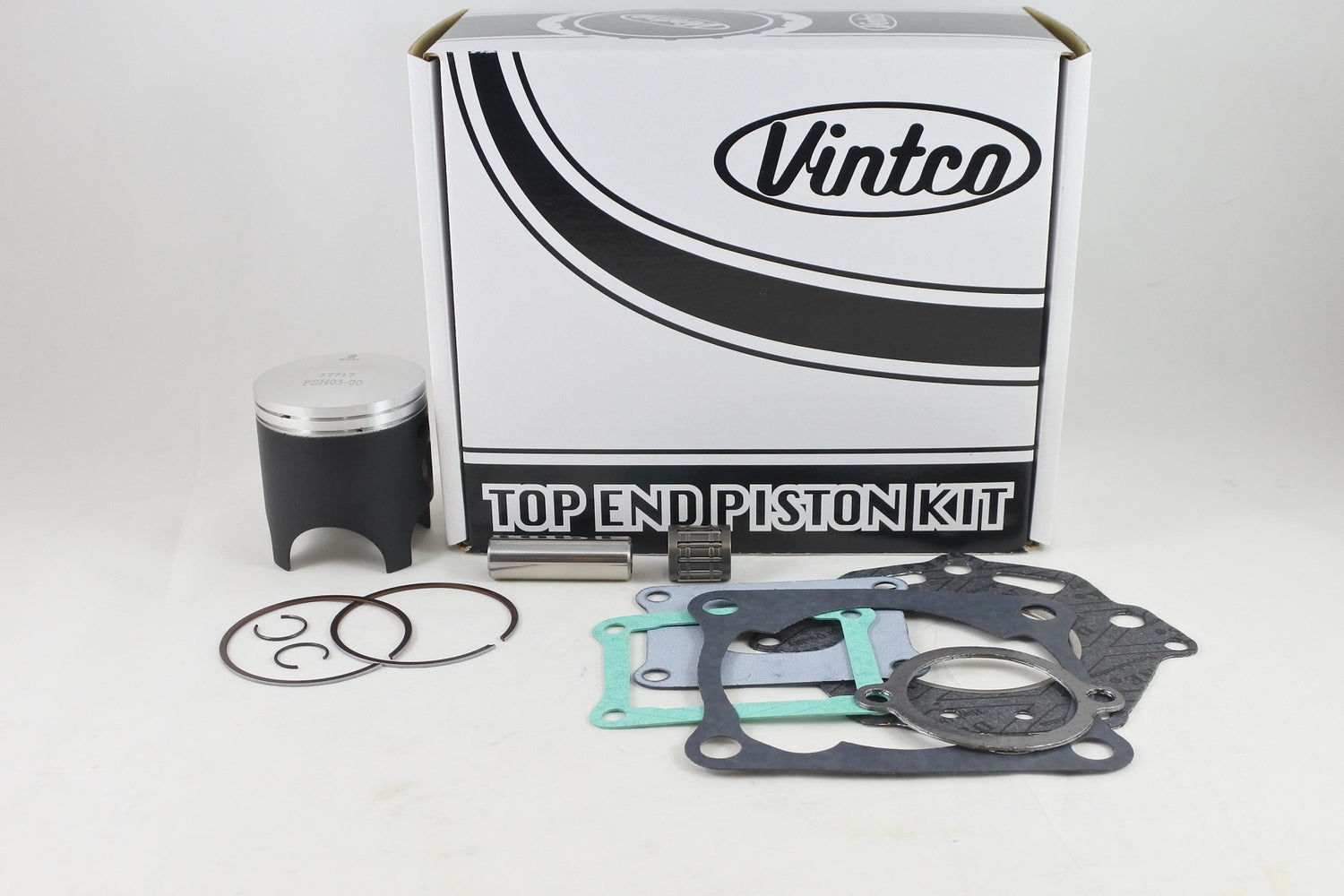

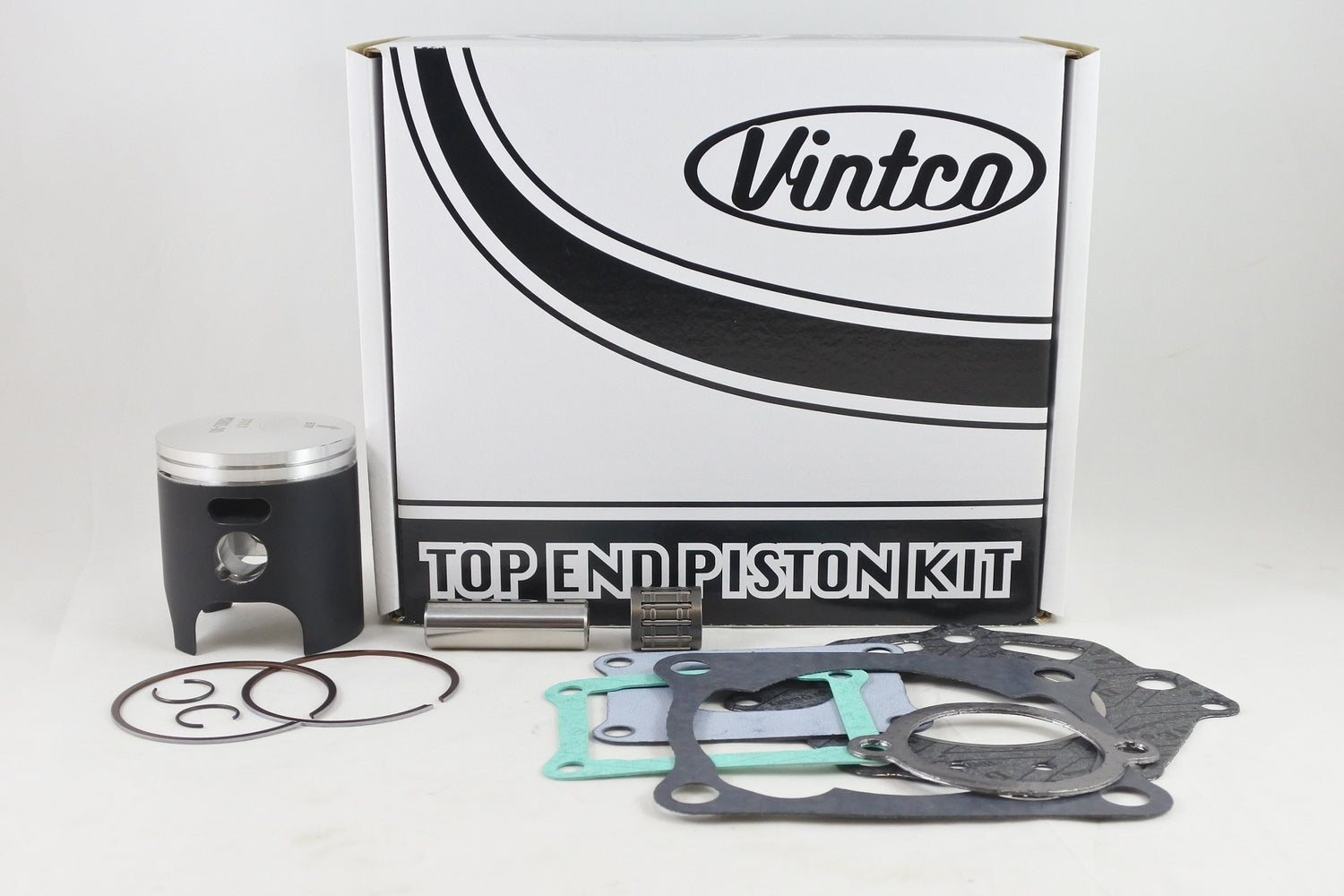

The VintCo KTH14-00 is a new complete top end piston kit for the 1983 Honda CR125, supplied for the standard 55.5 mm bore. It includes a VintCo piston kit with piston, rings, pin and clips, a wrist pin bearing, and a full top-end gasket set for the head, base, intake and exhaust. The components are manufactured using modern materials and production methods to provide OEM-equivalent fitment and performance and to simplify top-end rebuild work.

Features

• Complete top-end rebuild kit
• Includes piston, rings, pin and clips
• Includes wrist pin bearing
• Includes full top-end gasket set
• Gasket set covers head, base, intake and exhaust pipe
• Intended for straightforward, cost-effective rebuilds
• Kit pricing provides a 10% saving compared with purchasing the components individually
• Other size options are available

Specifications

• VintCo Part Number: KTH14-00
• Standard bore application: 55.5 mm
• Piston diameter: 55.44 mm
• Piston-to-cylinder clearance: 0.06 mm
• Piston construction: Forged
• Country of manufacture: Germany
• Piston coating: MoS2 break-in coating

Cross-Reference OEM Part Numbers

• Head gasket: 12251-KA3-308
• Base gasket: 12191-KA3-306
• Intake gasket: 14131-KA3-306
• Intake gasket: 14132-KA3-306
• Exhaust pipe gasket: 18291-KA3-306

Vehicle Fitments

• 1983 Honda CR125
