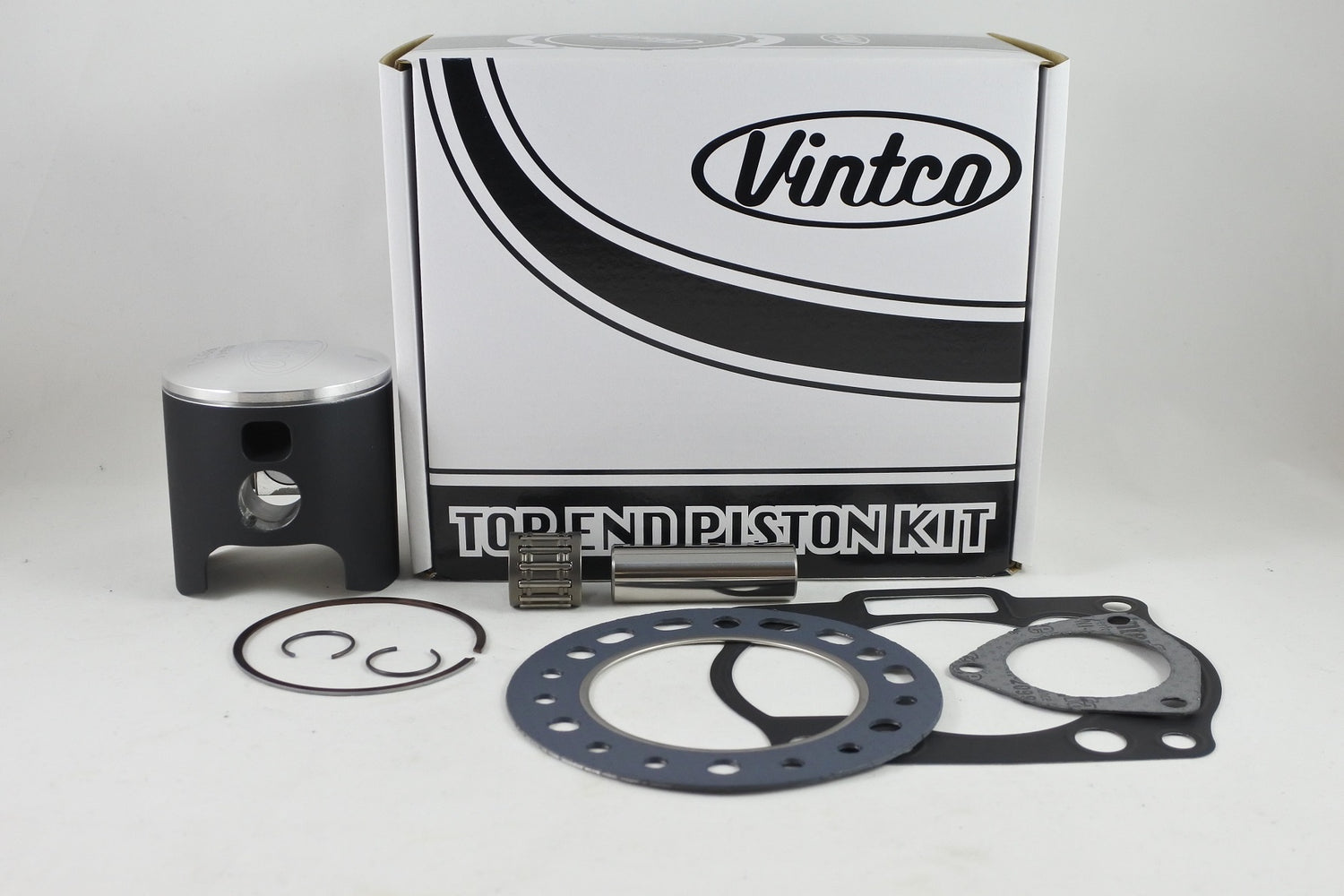

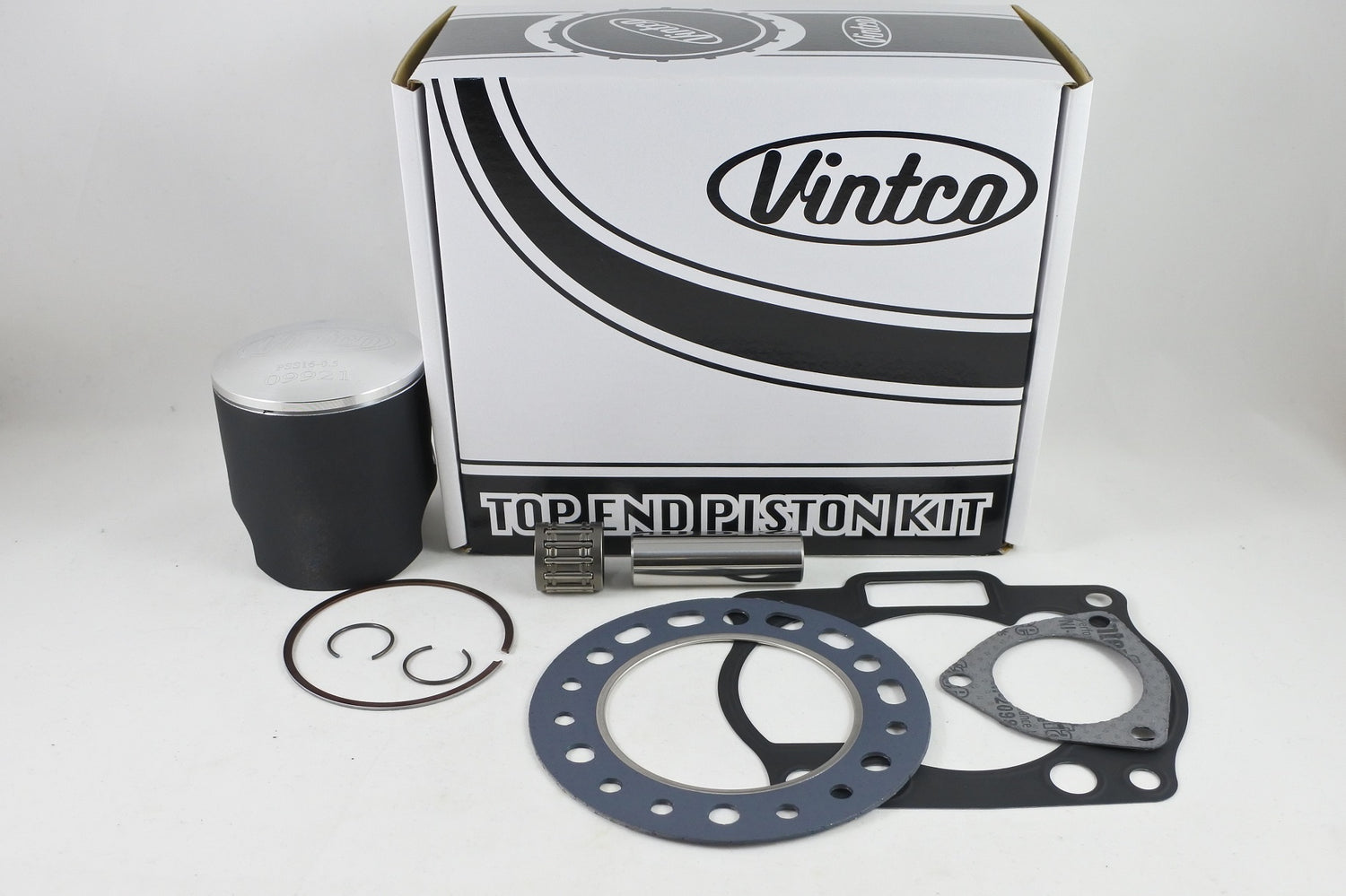

This top end piston kit is for 1982-1985 Suzuki RM250 models and is supplied as a complete rebuild package with a VintCo piston kit, top end bearing and full top end gasket kit. It is designed to provide OEM-equivalent fitment and performance for top end rebuild work, using modern manufacturing methods and materials. This version is a 70.5 mm bore, +0.5 mm oversize kit.

Features

• Complete top end rebuild kit
• Includes piston, rings, pin and clips
• Includes top end bearing
• Includes full top end gasket kit
• Includes wrist pin bearing
• Suitable for 1982-1985 Suzuki RM250 models
• Produced for OEM-equivalent fitment and performance
• Kit price is 10% lower than purchasing the components individually
• Additional size options are available

Specifications

• VintCo Part Number: KTS21-0.5
• Bore size: 70.5 mm
• Oversize: +0.5 mm
• Piston size: 70.44 mm
• Piston clearance: 0.06 mm
• Piston construction: Forged
• Piston coating: MoS2
• Country of manufacture: Germany

Cross-Reference OEM Part Numbers

• 11141-13A60 - Cylinder base gasket
• 11241-14600-H17 - Cylinder base gasket
• 14181-16300-H17 - Exhaust pipe gasket

Vehicle Fitments

• 1982 Suzuki RM250
• 1983 Suzuki RM250
• 1984 Suzuki RM250
• 1985 Suzuki RM250
