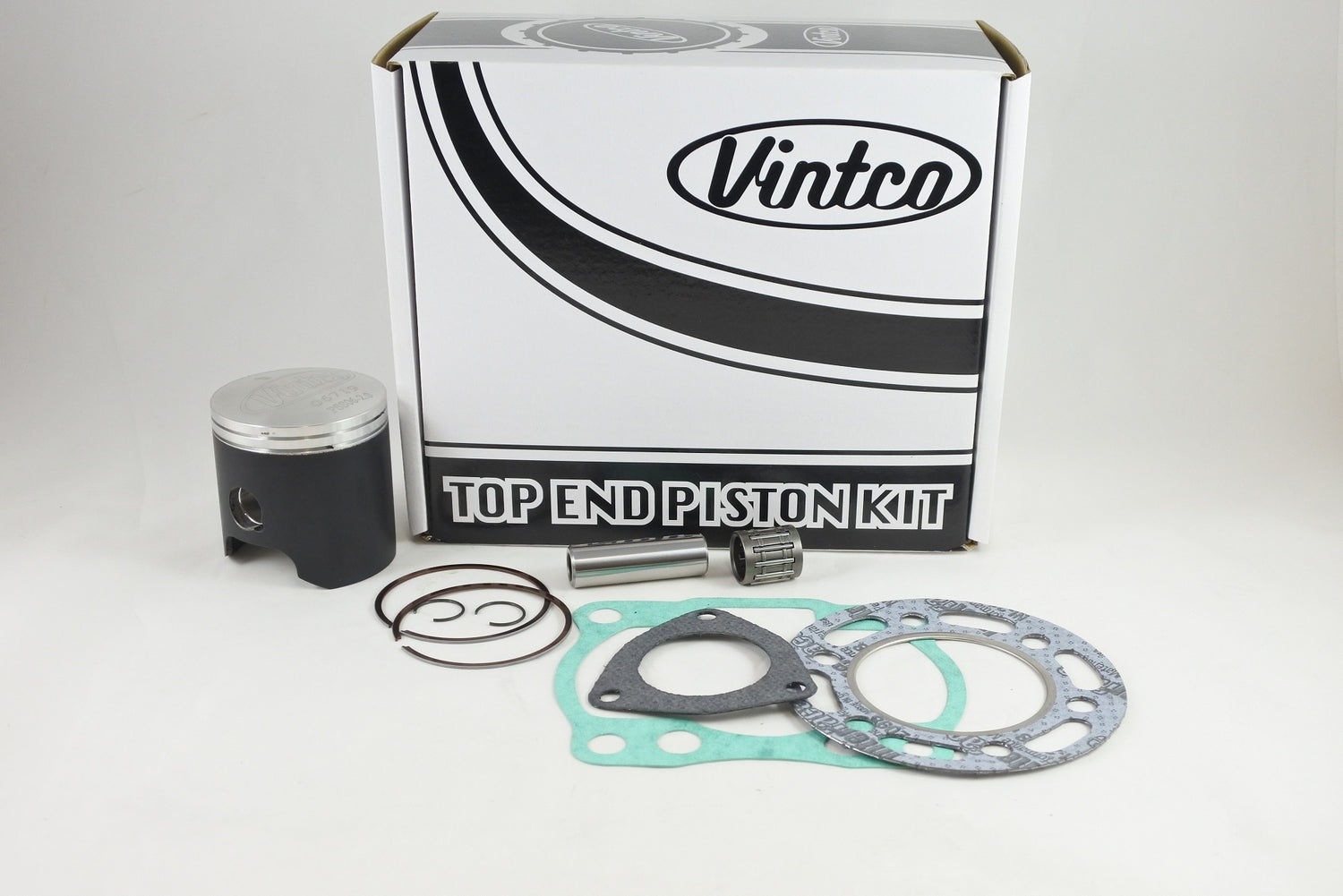

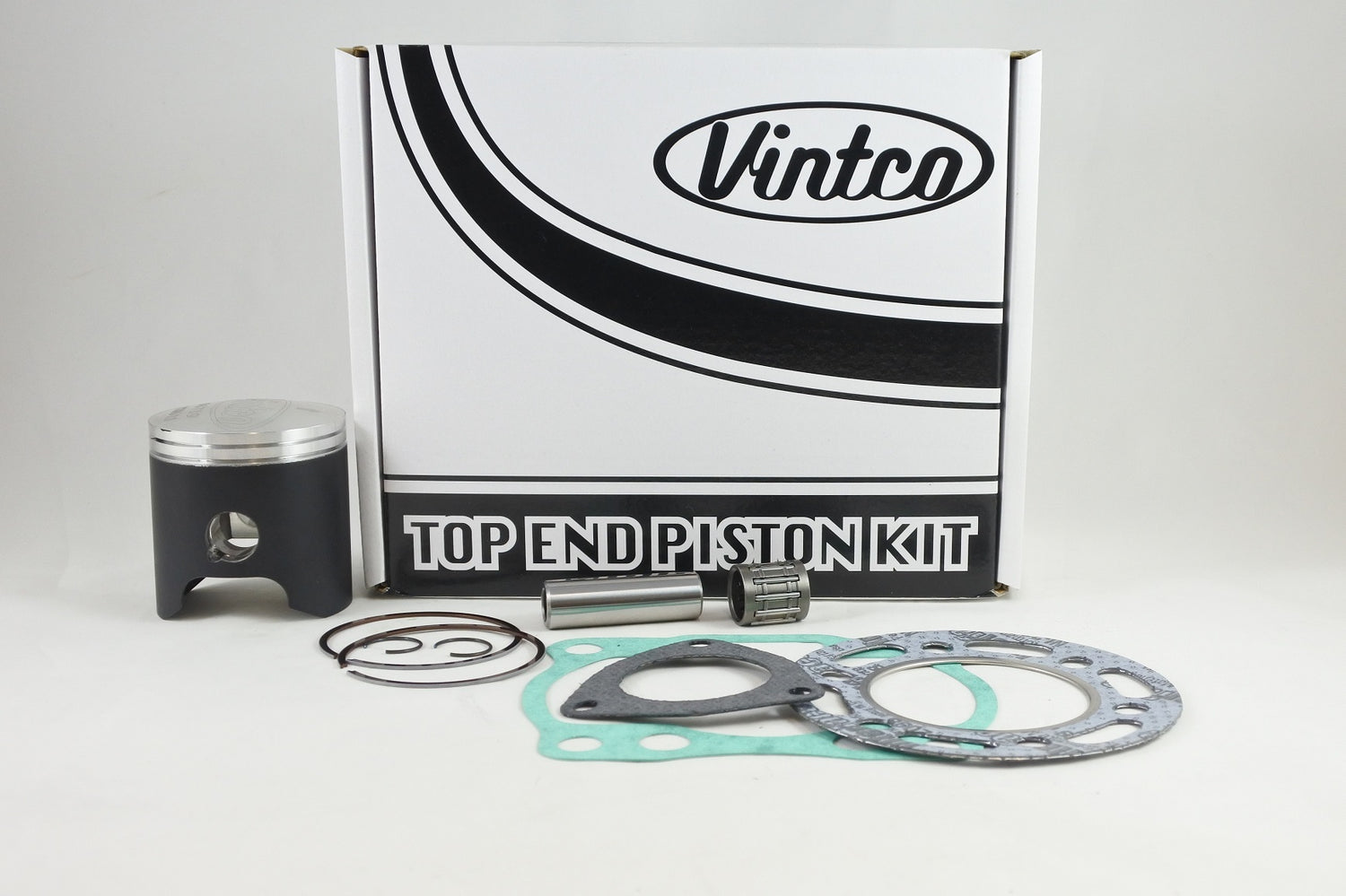

VintCo KTS16-2.0 is a complete top end piston kit for Suzuki RM125 models from 1982 to 1983, supplied in a 56.00 mm 2.0 over configuration for top end rebuild work. The kit is intended to provide the main components required for a straightforward and cost-effective rebuild, including the piston assembly, top end bearing, and a full top-end gasket set. OEM part number references are included for component verification, and additional size options are available.

Features

• Complete top end rebuild kit
• Includes piston, rings, pin and clips
• Includes top end bearing
• Includes full top-end gasket kit
• Gasket set includes head gasket, base gasket, intake gasket and exhaust gasket
• Produced for OEM-level fitment and performance
• Kit pricing includes a 10% saving compared with purchasing the components individually
• Additional size options available

Specifications

• VintCo Part Number: KTS16-2.0
• Product type: Top End Piston Kit
• Piston construction: Forged
• Piston coating: German MoS2 coating for break-in
• Piston size: 55.94 mm
• Nominal size designation: 56.00 mm
• Oversize: +2.0 mm
• Piston clearance: 0.06 mm

Cross-Reference OEM Part Numbers

• Head gasket: 11141-14120-H17
• Base gasket: 11241-14110-H17
• Exhaust gasket: 14181-40200-H17
• Wrist pin bearing: 09263-14022
• Wrist pin bearing: 09263-14024

Vehicle Fitments

• 1982 Suzuki RM125
• 1983 Suzuki RM125
