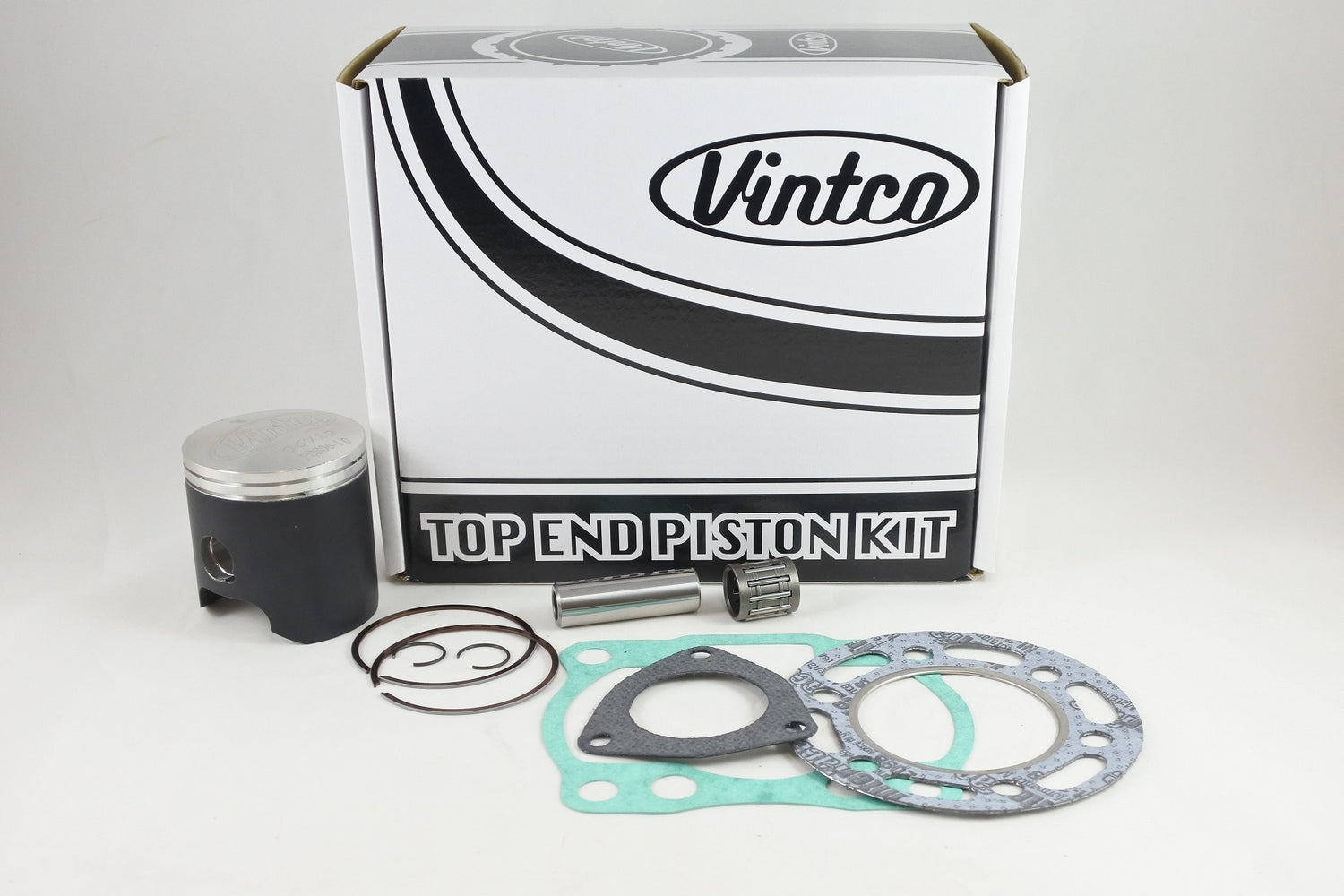

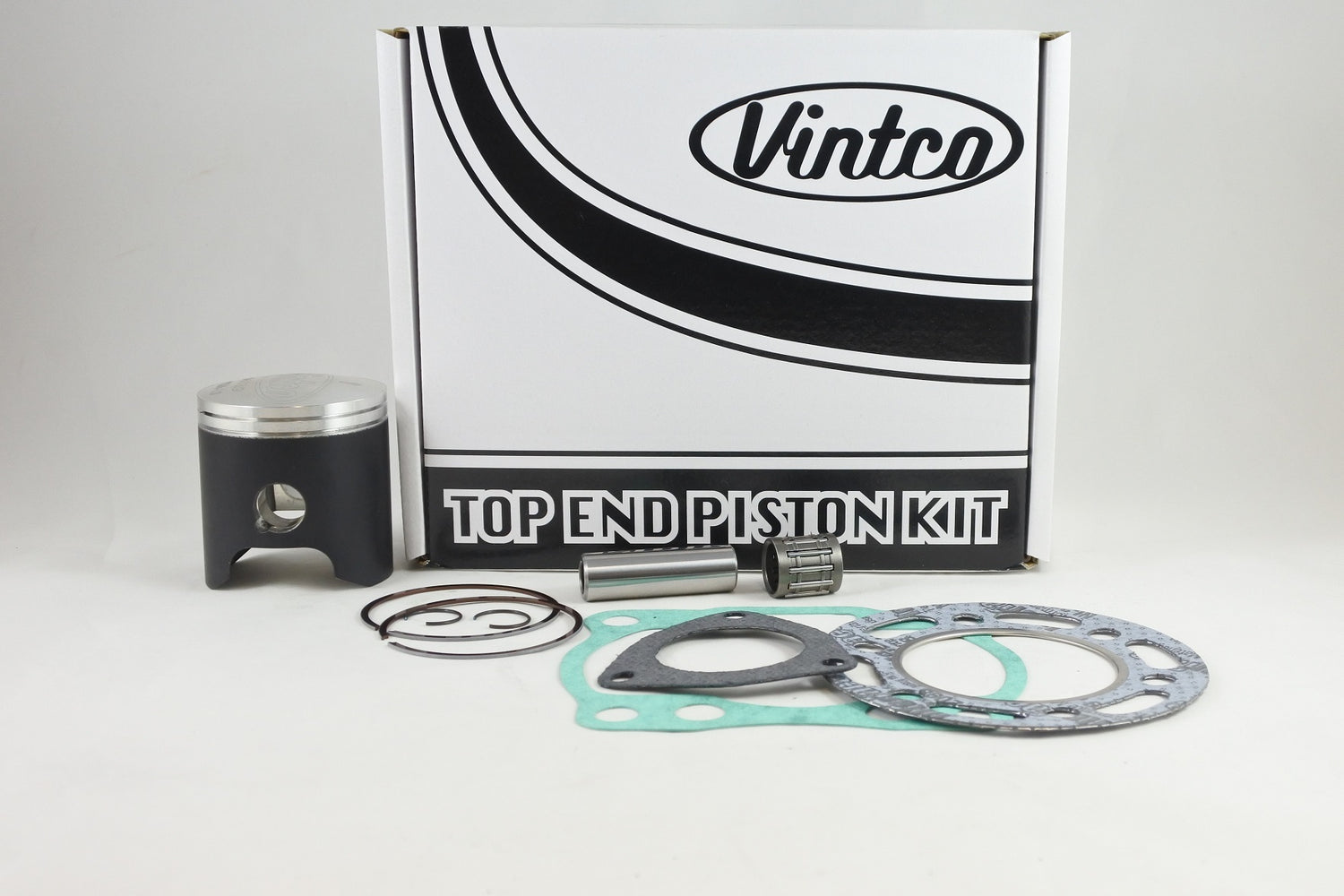

VintCo top end piston kit KTS16-1.0 is a complete rebuild set for 1982-1983 Suzuki RM125 models. It includes a forged piston with rings, pin and clips, a top end bearing, and a full top-end gasket set with head, base, intake and exhaust gaskets. This kit is supplied in a +1.0 mm oversize configuration for exact application matching.

Features

• Complete top-end rebuild kit
• Includes piston, rings, pin and clips
• Includes top end bearing
• Includes head gasket, base gasket, intake gasket and exhaust gasket
• Designed for OEM-style fitment and performance
• Supplied as a matched kit for simplified rebuilds
• Packaged at 10% lower cost than purchasing the components individually
• Other size options are available

Specifications

• VintCo Part Number: KTS16-1.0
• Nominal size: 55.00 mm
• Piston size: 54.94 mm
• Oversize: +1.0 mm
• Piston clearance: 0.06 mm
• Piston construction: Forged
• Piston coating: MoS2-coated for break-in
• Country of manufacture: Germany

Cross-Reference OEM Part Numbers

• Head gasket: 11141-14120-H17
• Base gasket: 11241-14110-H17
• Exhaust gasket: 14181-40200-H17
• Wrist pin bearing: 09263-14022
• Wrist pin bearing: 09263-14024

Vehicle Fitments

• 1982 Suzuki RM125
• 1983 Suzuki RM125
