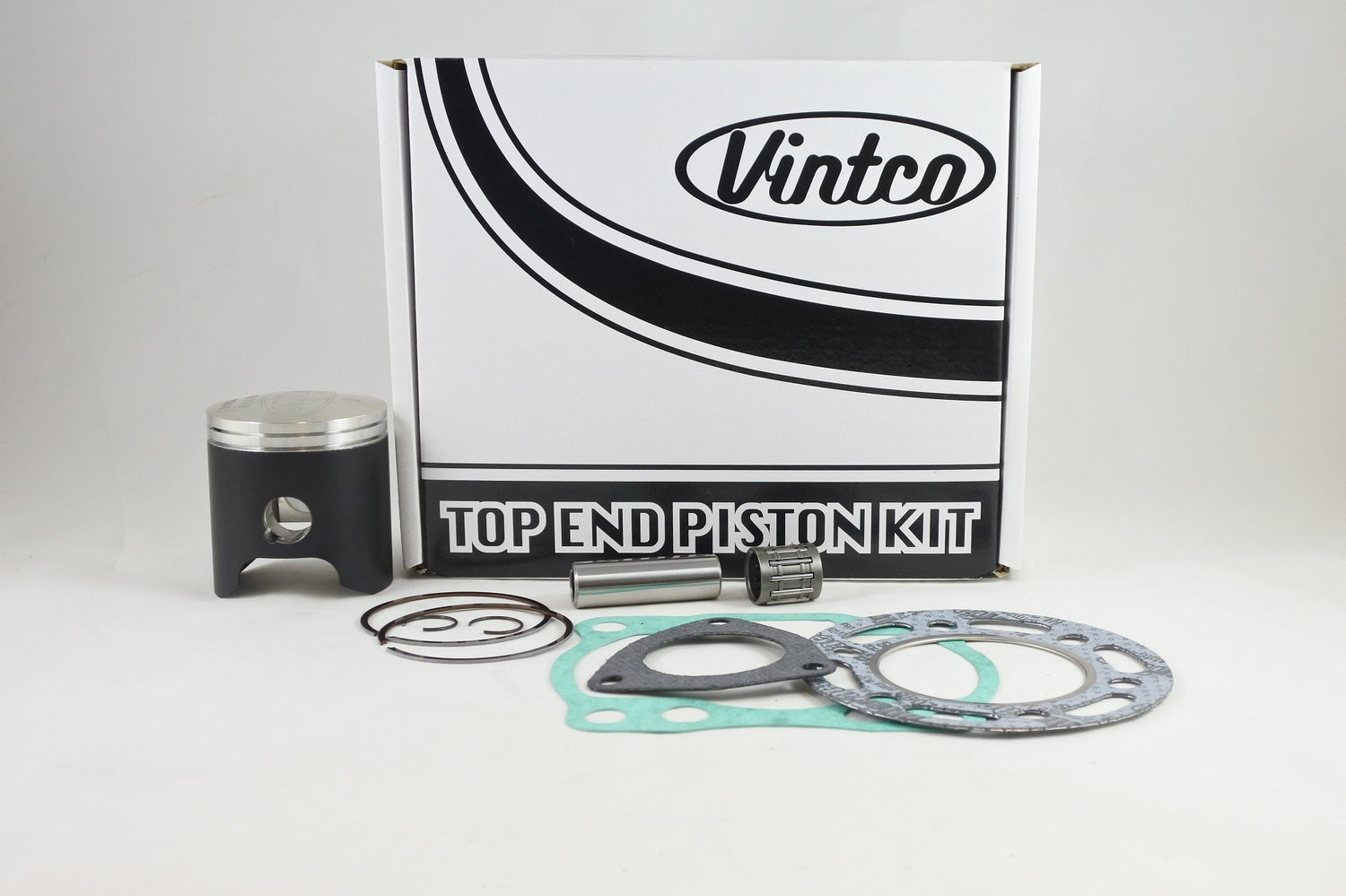

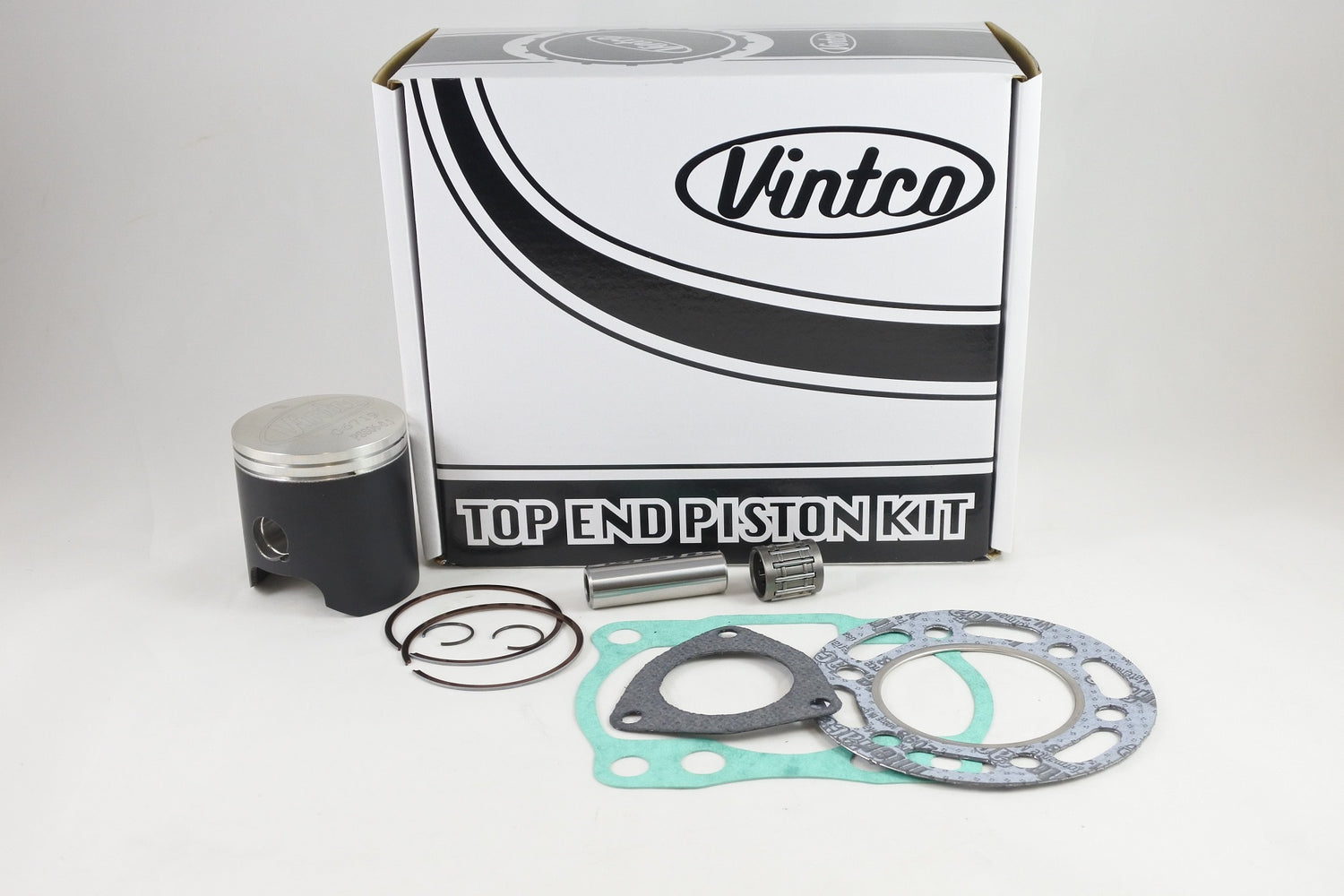

This VintCo top end piston kit is designed for 1982-1983 Suzuki RM125 models and provides the main components required for a complete top-end rebuild. The kit includes a piston, rings, pin and clips, a top end bearing, and a full top-end gasket set comprising head, base, intake and exhaust gaskets. It is supplied in a 54.44 mm +0.50 mm oversize configuration with 0.06 mm clearance, and uses modern manufacturing methods for OEM-equivalent fitment and performance. Additional size options are available within the range.

Features

• Complete top end rebuild kit
• Includes piston, rings, pin and clips
• Includes top end bearing
• Includes full top-end gasket kit
• Gasket kit includes head gasket, base gasket, intake gasket and exhaust gasket
• Intended for 1982-1983 Suzuki RM125 applications
• Provides OEM-equivalent fitment and performance
• Kit price represents a 10% saving compared with purchasing the components individually

Specifications

• VintCo Part Number: KTS16-0.5
• Product type: Top End Piston Kit
• Piston size: 54.44 mm
• Nominal size: 54.5 mm
• Oversize: +0.50 mm
• Clearance: 0.06 mm
• Piston construction: Forged
• Piston coating: German MoS2 coated for break-in

Cross-Reference OEM Part Numbers

• Head gasket: 11141-14120-H17
• Base gasket: 11241-14110-H17
• Exhaust gasket: 14181-40200-H17
• Wrist pin bearing: 09263-14022
• Wrist pin bearing: 09263-14024

Vehicle Fitments

• 1982 Suzuki RM125
• 1983 Suzuki RM125
