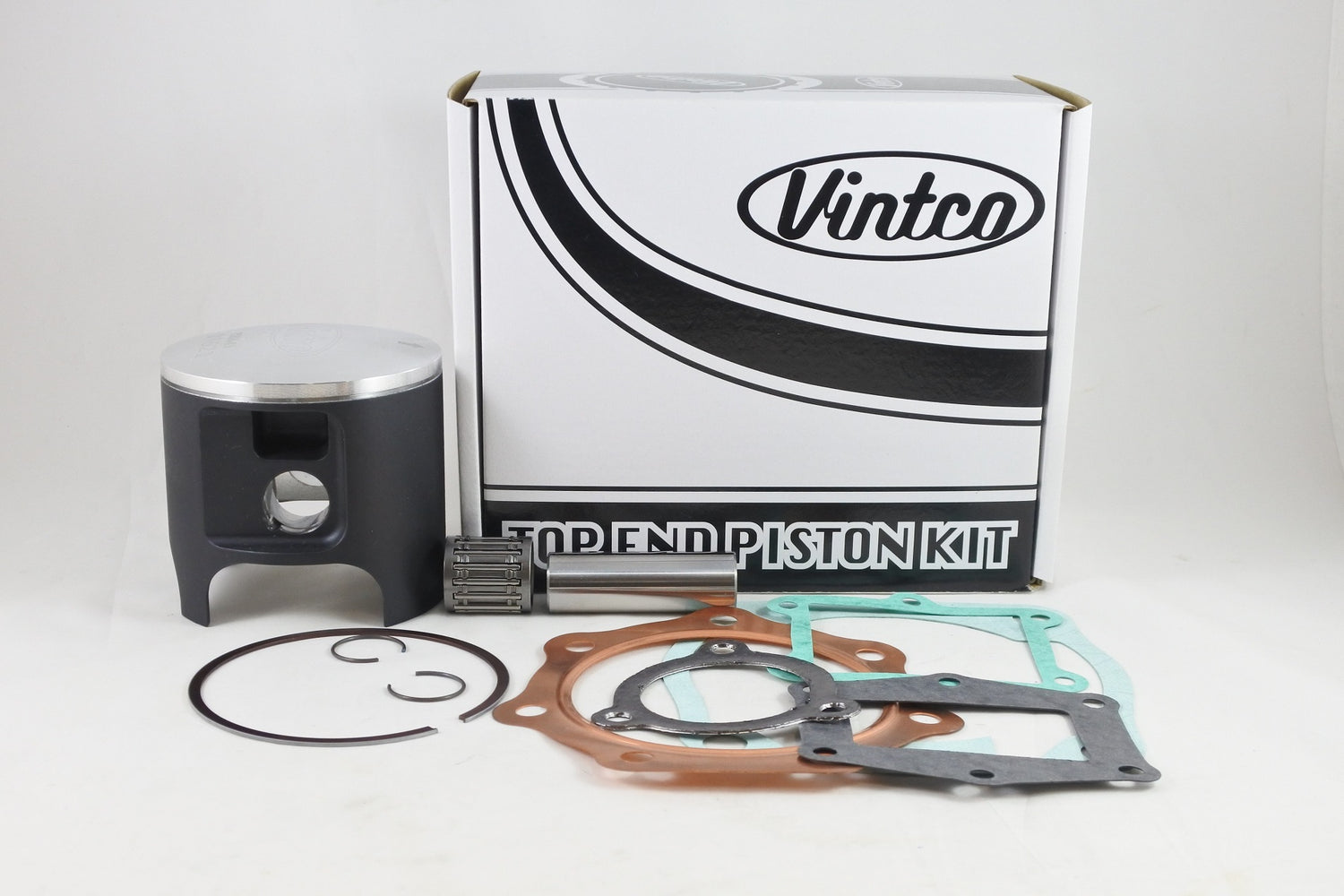

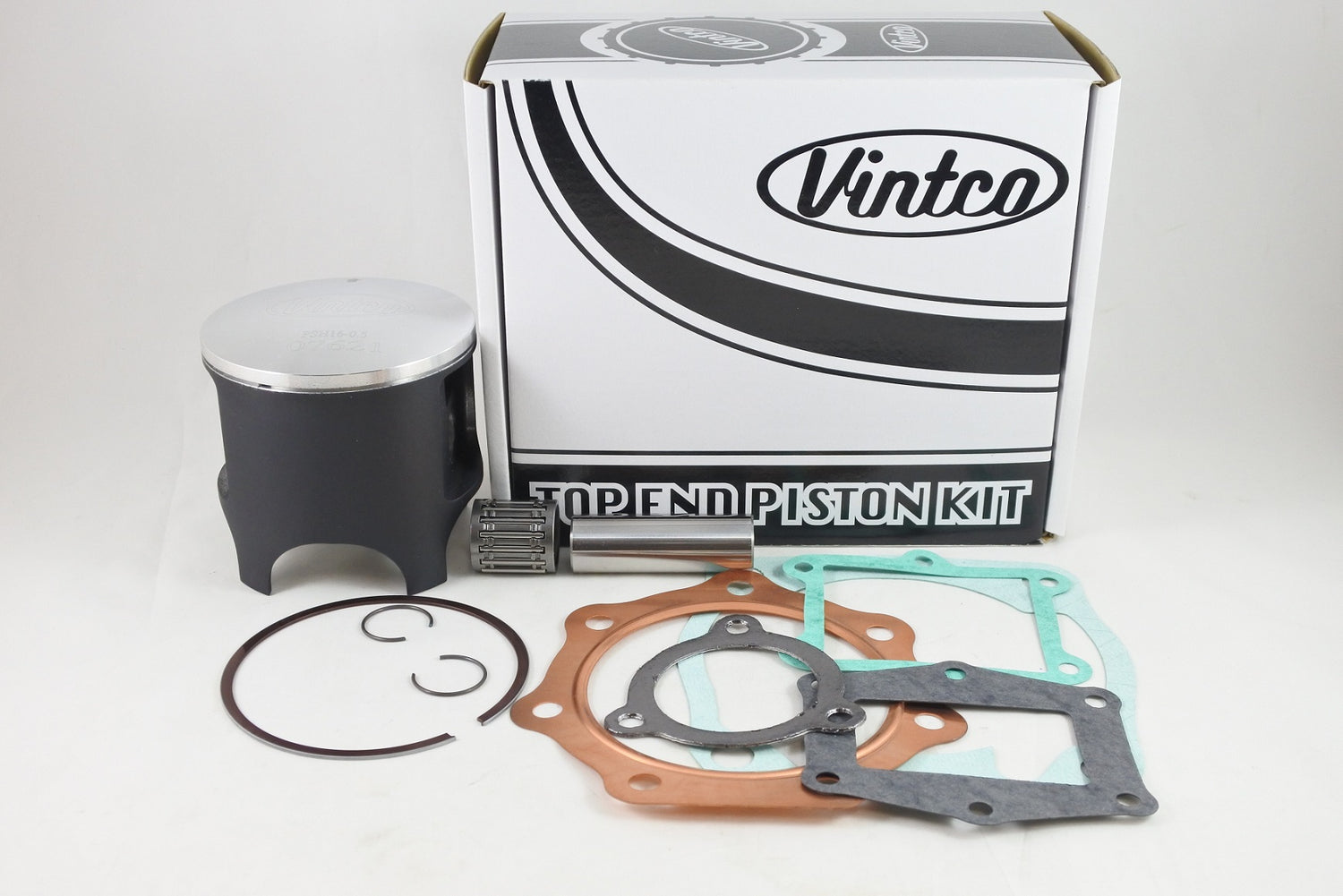

VintCo top end piston kit KTH28-0.5 is a complete top-end rebuild set for 1982-1983 Honda CR480 models. It includes a forged oversize piston with rings, pin and clips, a wrist pin bearing, and a full gasket set comprising the head gasket, base gasket, intake gaskets and exhaust pipe gasket. The components are produced using modern materials and manufacturing methods to provide OEM-equivalent or better fit and performance.

Features

• Complete top-end rebuild kit for 1982-1983 Honda CR480
• Includes piston, rings, pin and clips
• Includes wrist pin bearing
• Includes head gasket, base gasket, two intake gaskets and exhaust pipe gasket
• OEM part number references provided for exact fit verification
• Package price is 10% lower than purchasing the components individually
• Additional size options are available

Specifications

• VintCo Part Number: KTH28-0.5
• Nominal piston size: 89.5 mm
• Piston diameter: 89.42 mm
• Oversize: +0.5 mm
• Piston clearance: 0.06 mm
• Piston construction: Forged
• Piston coating: MOS2
• Country of manufacture: Germany

Cross-Reference OEM Part Numbers

• Head gasket: 12254-KA5-770
• Base gasket: 12191-KA5-308
• Intake gasket: 14132-KAE-000
• Intake gasket: 14133-430-306
• Exhaust pipe gasket: 18291-430-306

Vehicle Fitments

• 1982 Honda CR480
• 1983 Honda CR480
