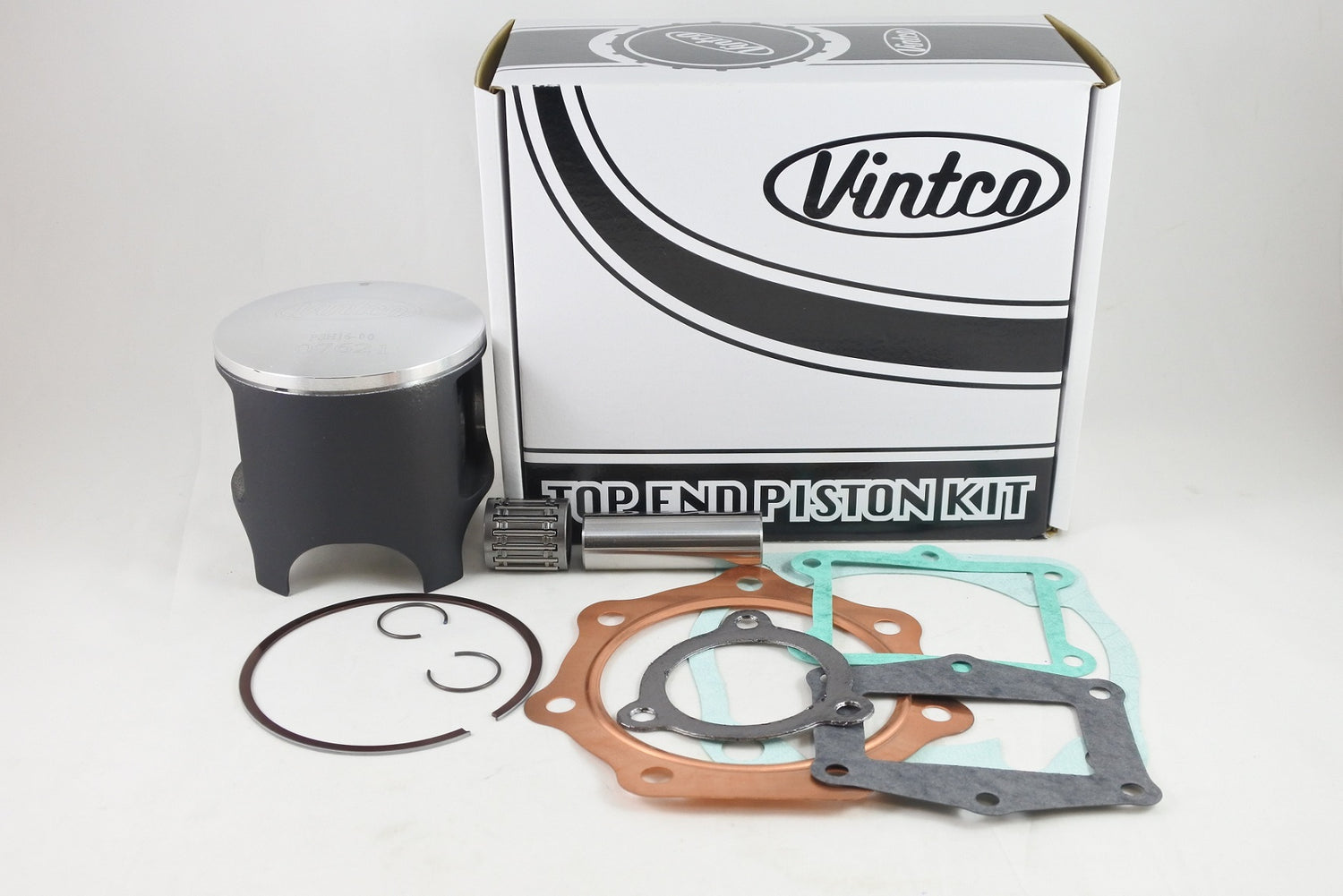

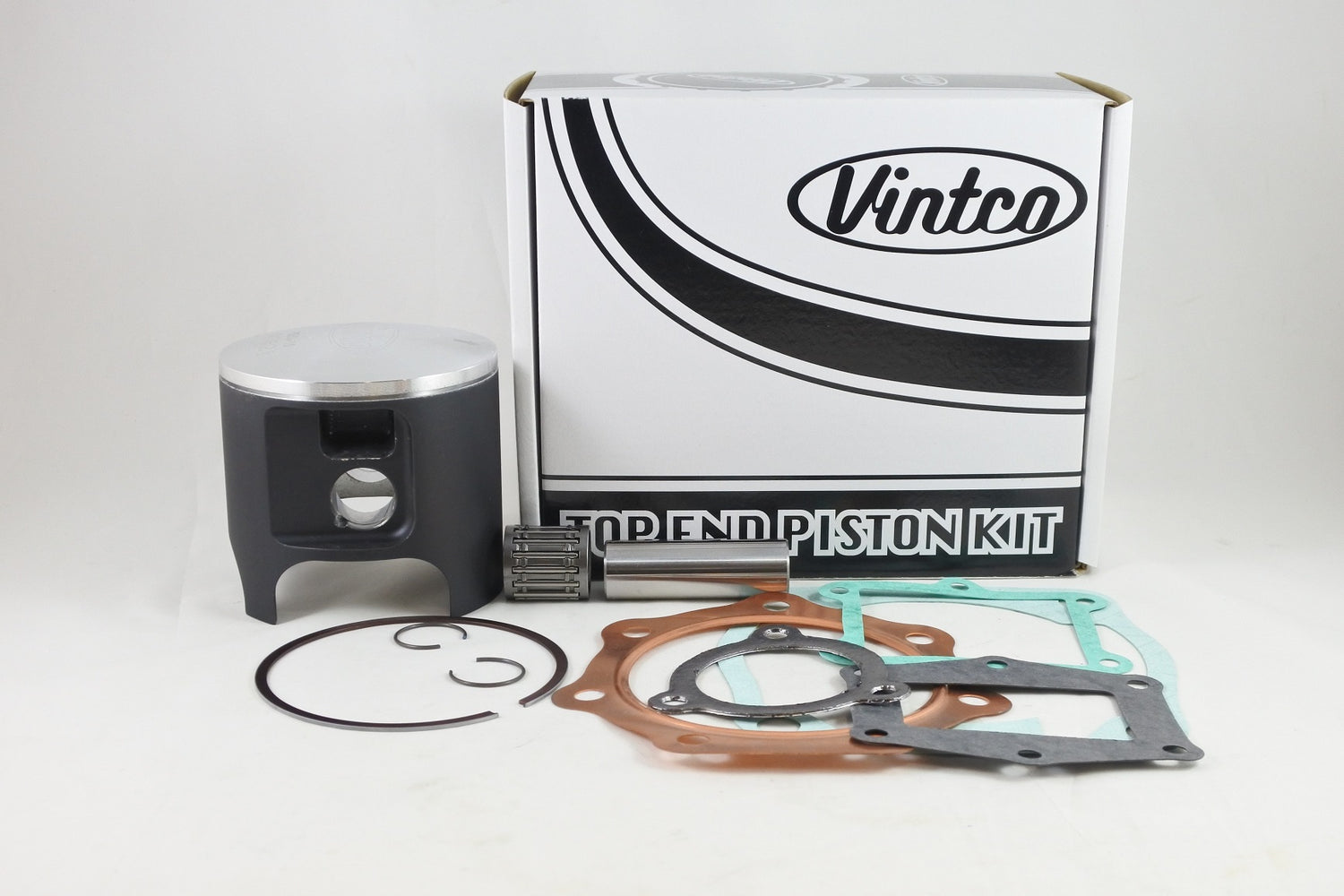

VintCo KTH28-00 is a top end piston kit for 1982-1983 Honda CR480 models in standard 88.92 mm size. It is supplied as a complete rebuild set including the piston kit, wrist pin bearing and a full top-end gasket kit for straightforward top end service. Components are produced using modern materials and manufacturing methods for OEM-style fit and performance. Kit pricing reflects a 10% saving compared with purchasing the included parts individually, and additional size options are available.

Features

• Complete top end rebuild kit
• Includes piston, rings, pin and clips
• Includes wrist pin bearing
• Includes full top-end gasket kit
• Supplied with head gasket
• Supplied with base gasket
• Supplied with intake gaskets
• Supplied with exhaust pipe gasket
• Intended for cost-effective top end rebuilding

Specifications

• VintCo Part Number: KTH28-00
• Standard piston size: 88.92 mm
• Piston clearance: 0.08 mm
• Forged piston
• MOS2 coated piston for break-in
• Made in Germany

Cross-Reference OEM Part Numbers

• Head gasket: 12254-KA5-770
• Base gasket: 12191-KA5-308
• Intake gasket: 14132-KAE-000
• Intake gasket: 14133-430-306
• Exhaust pipe gasket: 18291-430-306

Vehicle Fitments

• 1982 Honda CR480
• 1983 Honda CR480
