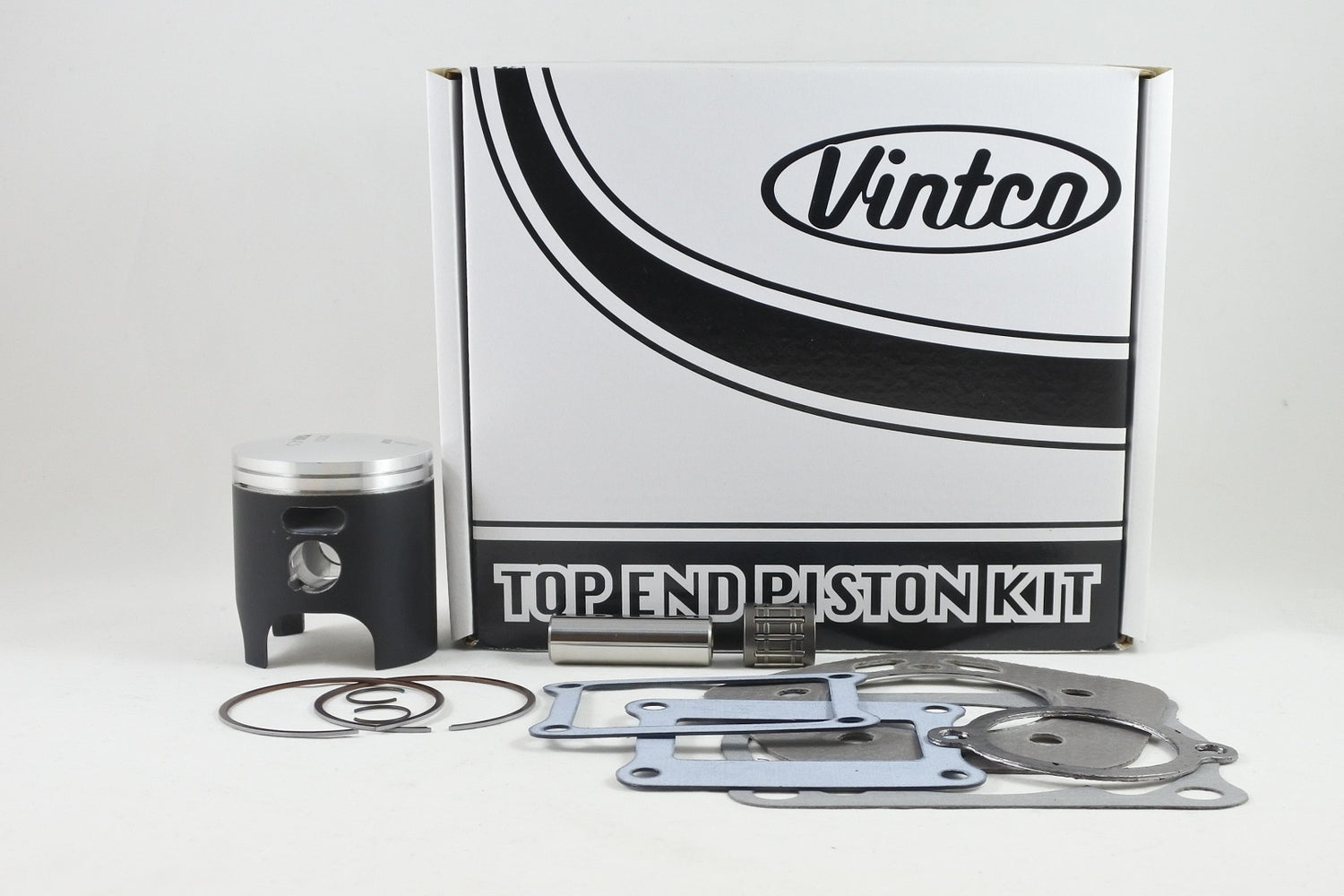

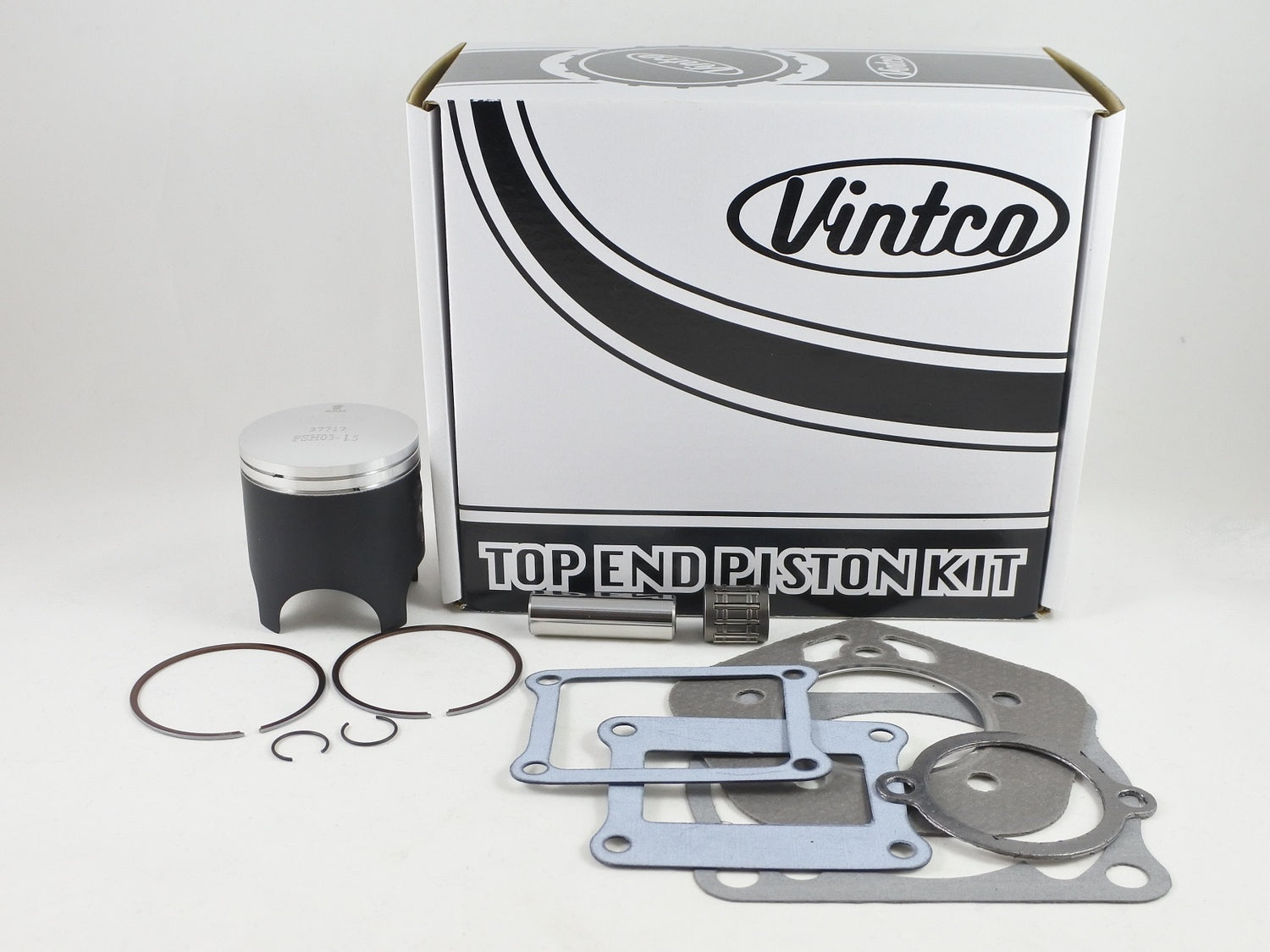

This VintCo top end piston kit is a complete rebuild set for the 1982 Honda CR125, supplied for a 57.0 mm bore size at +1.5 mm oversize. The kit includes a piston kit with piston, rings, pin and clips, a wrist pin bearing, and a full top-end gasket set covering the head, base, intake and exhaust. Components are produced using modern materials and manufacturing methods for OEM-equivalent fit and performance. The listed kit price is 10% lower than purchasing the included items individually, and other size options are available.

Features

• Complete top-end rebuild kit
• Includes piston, rings, pin and clips
• Includes wrist pin bearing
• Includes head gasket
• Includes base gasket
• Includes intake gaskets
• Includes exhaust pipe gasket
• Running-in coated piston
• Intended for 1982 Honda CR125 applications
• Supplied as a combined kit rather than separate individual items
• Additional size options are available

Specifications

• VintCo Part Number: KTH13-1.5
• Bore size: 57.0 mm
• Oversize: +1.5 mm
• Piston measurement: 56.94 mm
• Clearance: 0.06 mm
• Piston construction: Forged
• Piston coating: MOS2
• Piston origin: Germany

Cross-Reference OEM Part Numbers

• Head gasket: 12251-KA3-307
• Base gasket: 12191-444-306
• Intake gasket: 14131-444-306
• Intake gasket: 14132-444-306
• Exhaust pipe gasket: 18291-KA3-306

Vehicle Fitments

• 1982 Honda CR125
