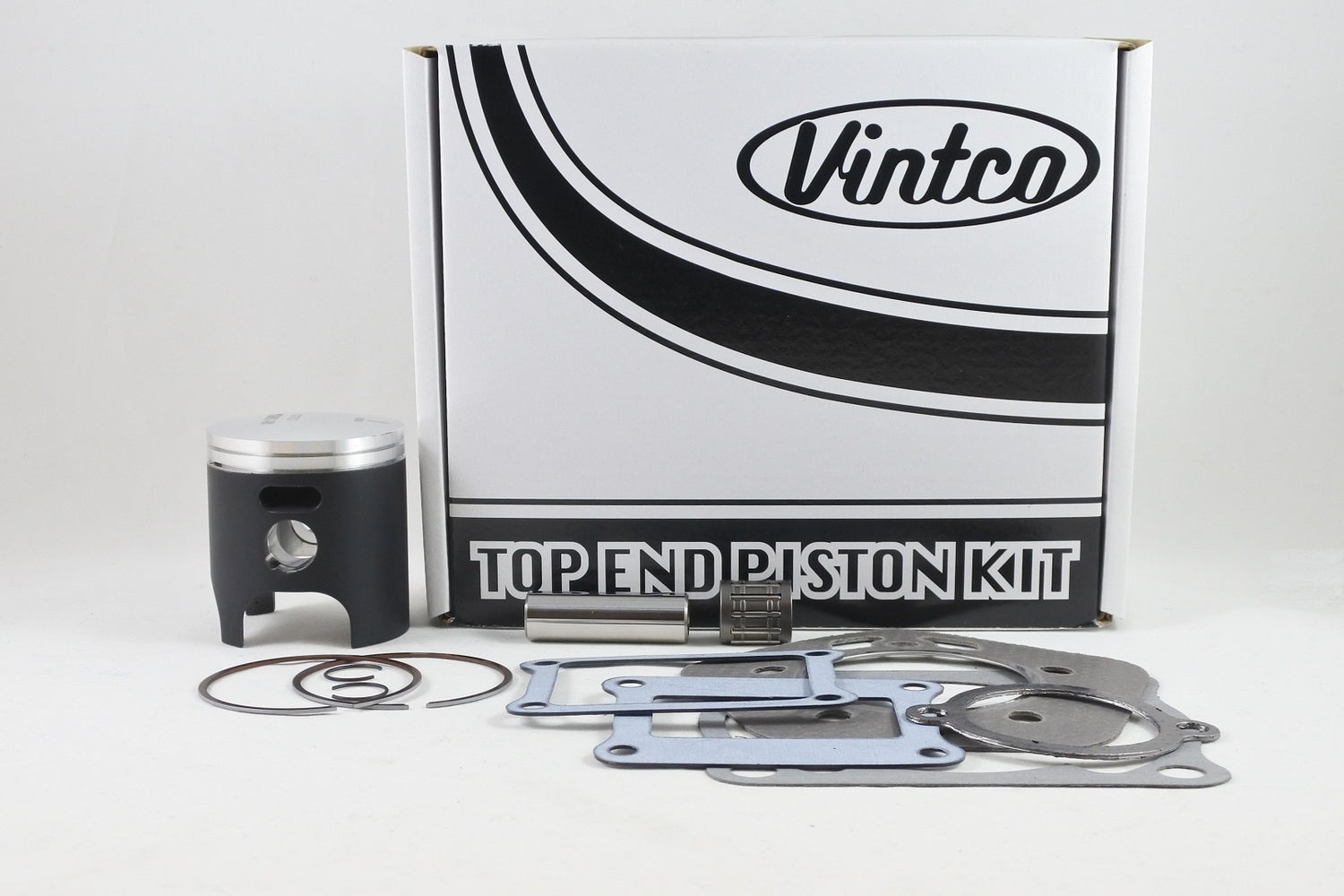

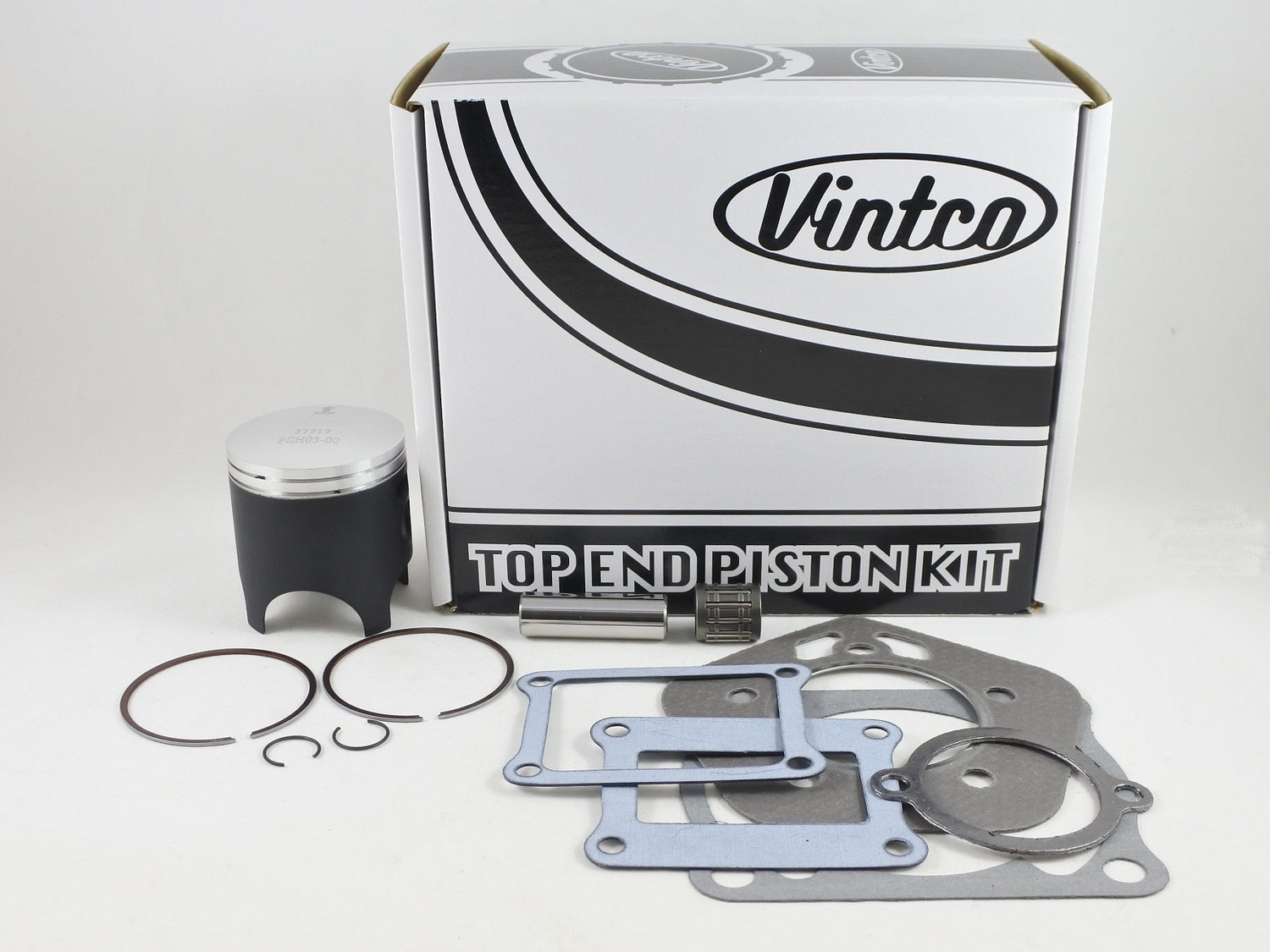

VintCo top-end piston kit KTH13-00 is a complete rebuild kit for the 1982 Honda CR125. It includes a VintCo piston kit with piston, rings, pin and clips, a wrist pin bearing, and a full top-end gasket set with head, base, intake and exhaust pipe gaskets. The components are produced using modern materials and manufacturing techniques to provide OEM-equivalent or improved fit and performance. The kit is supplied at a 10% lower cost than purchasing the items individually, and additional size options are also available.

Features

• Complete top-end rebuild kit
• Includes piston, rings, pin and clips
• Includes wrist pin bearing
• Includes head gasket, base gasket, intake gaskets and exhaust pipe gasket
• OEM-referenced components for exact fit
• Suitable for standard-bore rebuilds
• Additional size options available
• Kit pricing includes a 10% saving compared with individual items

Specifications

• VintCo Part Number: KTH13-00
• Product type: Top End Piston Kit
• Piston size: 55.5 mm standard
• Piston measurement: 55.44 mm
• Piston clearance: 0.06 mm
• Piston construction: Forged
• Piston coating: MOS2
• Country of manufacture: Germany

Cross-Reference OEM Part Numbers

• Head gasket: 12251-KA3-307
• Base gasket: 12191-444-306
• Intake gasket: 14131-444-306
• Intake gasket: 14132-444-306
• Exhaust pipe gasket: 18291-KA3-306

Vehicle Fitments

• 1982 Honda CR125
