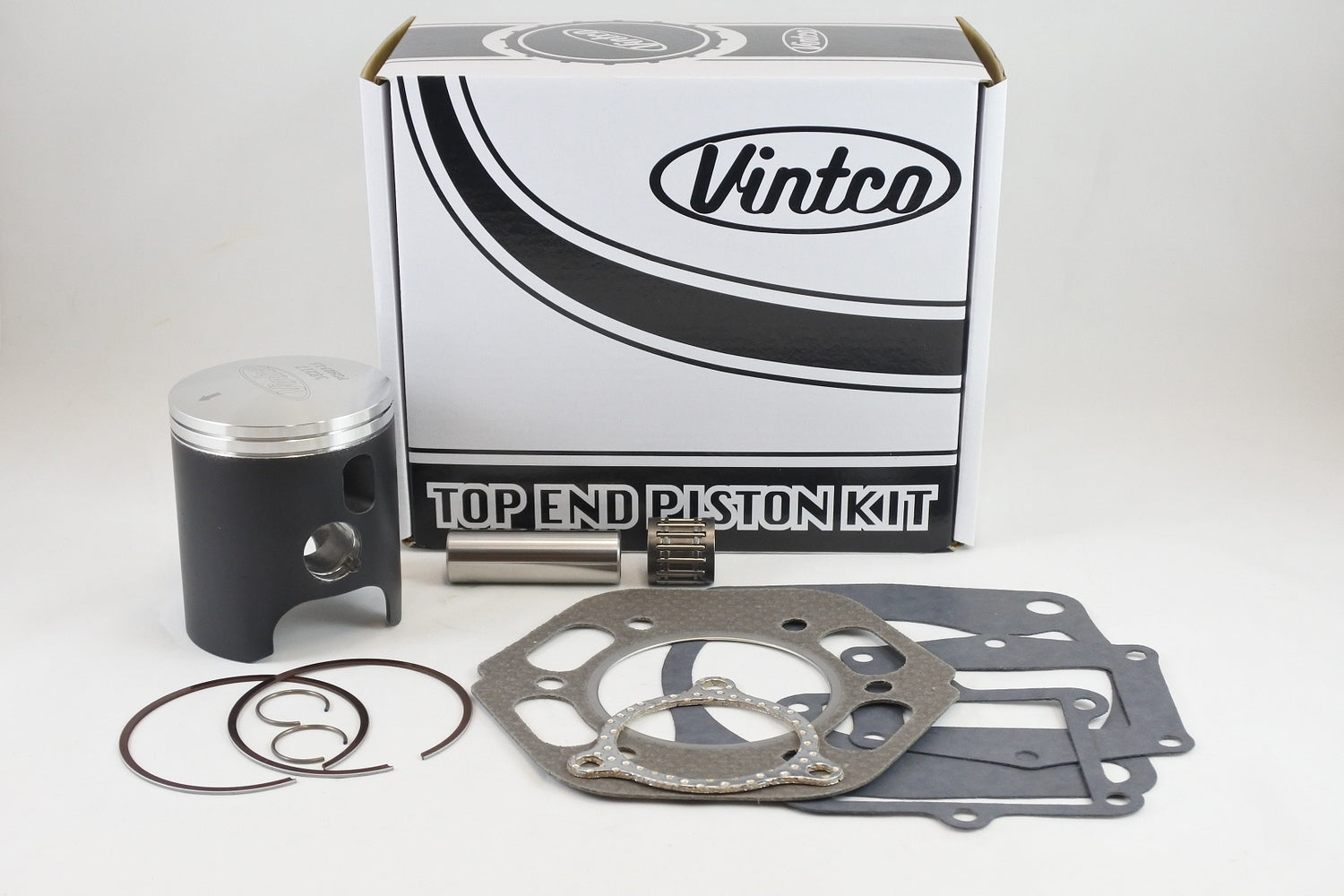

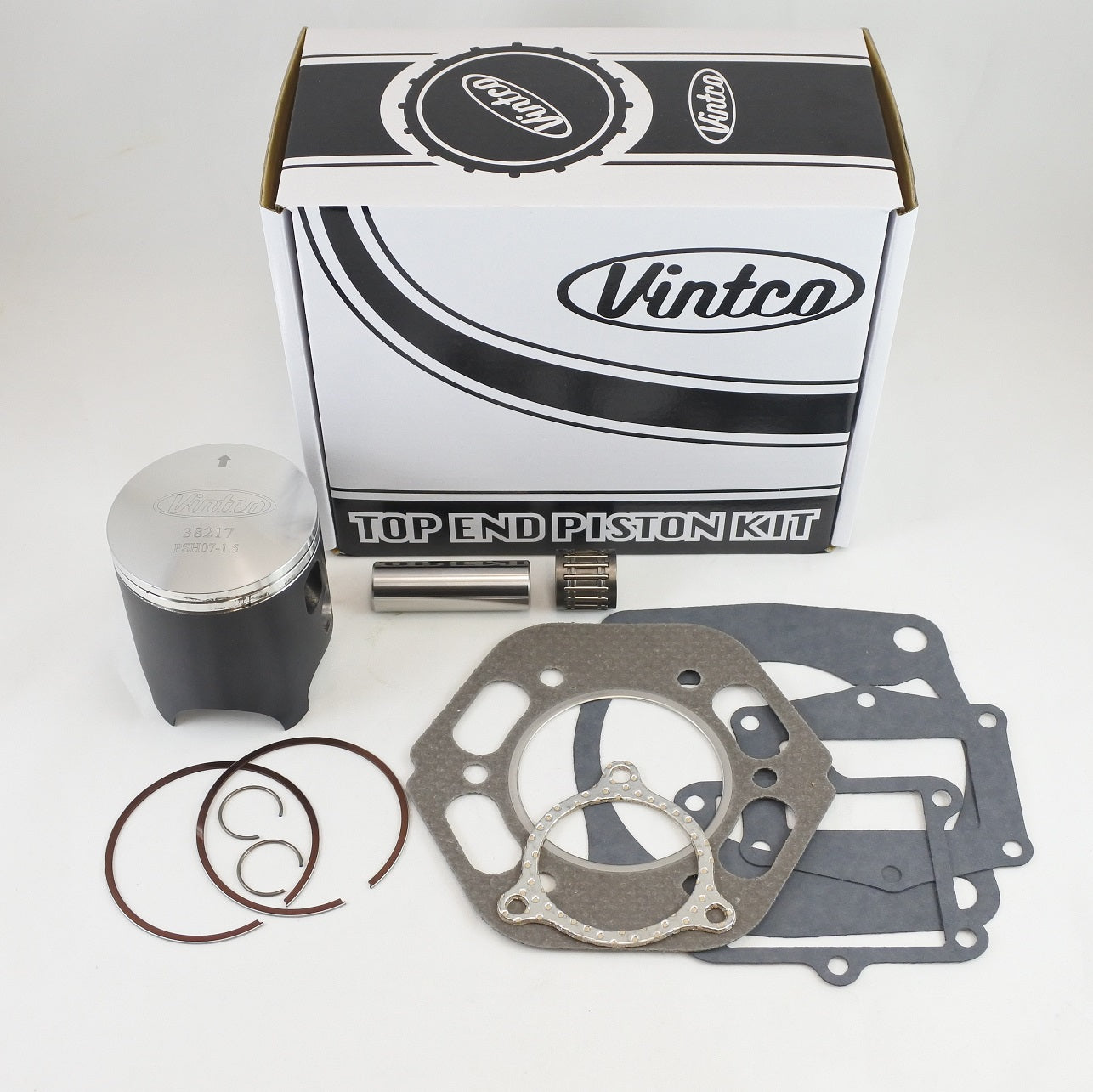

VintCo top-end piston kit KTH09-1.5 is a complete rebuild kit for 1981-1982 Honda CR250 models. It includes a forged piston, rings, pin and clips, a wrist pin bearing, and a full top-end gasket set covering the head, base, intake and exhaust. The components are manufactured using modern materials and production methods to provide OEM-equivalent or better fit and performance, and the kit is priced at 10% less than purchasing the included parts individually.

Features

• Complete top-end rebuild kit
• Includes piston, rings, pin and clips
• Includes wrist pin bearing
• Includes head gasket, base gasket, intake gaskets and exhaust gasket
• Supports the running-in period
• Designed for OEM-equivalent or better fit and performance
• Kit price is 10% lower than buying the included components individually
• Additional size options are available

Specifications

• VintCo Part Number: KTH09-1.5
• Product type: Top End Piston Kit
• Piston construction: Forged
• Piston coating: MoS2
• Country of manufacture: Germany
• Nominal bore size: 67.5 mm
• Oversize: +1.5 mm
• Piston size: 67.44 mm
• Clearance: 0.06 mm

Cross-Reference OEM Part Numbers

• Head gasket: 12254-KA4-306
• Base gasket: 12191-KA4-306
• Intake gasket: 14132-KAE-000
• Intake gasket: 14133-430-306
• Exhaust gasket: 18291-430-306
• Wrist pin bearing: 91015-357-003

Vehicle Fitments

• 1981 Honda CR250
• 1982 Honda CR250
