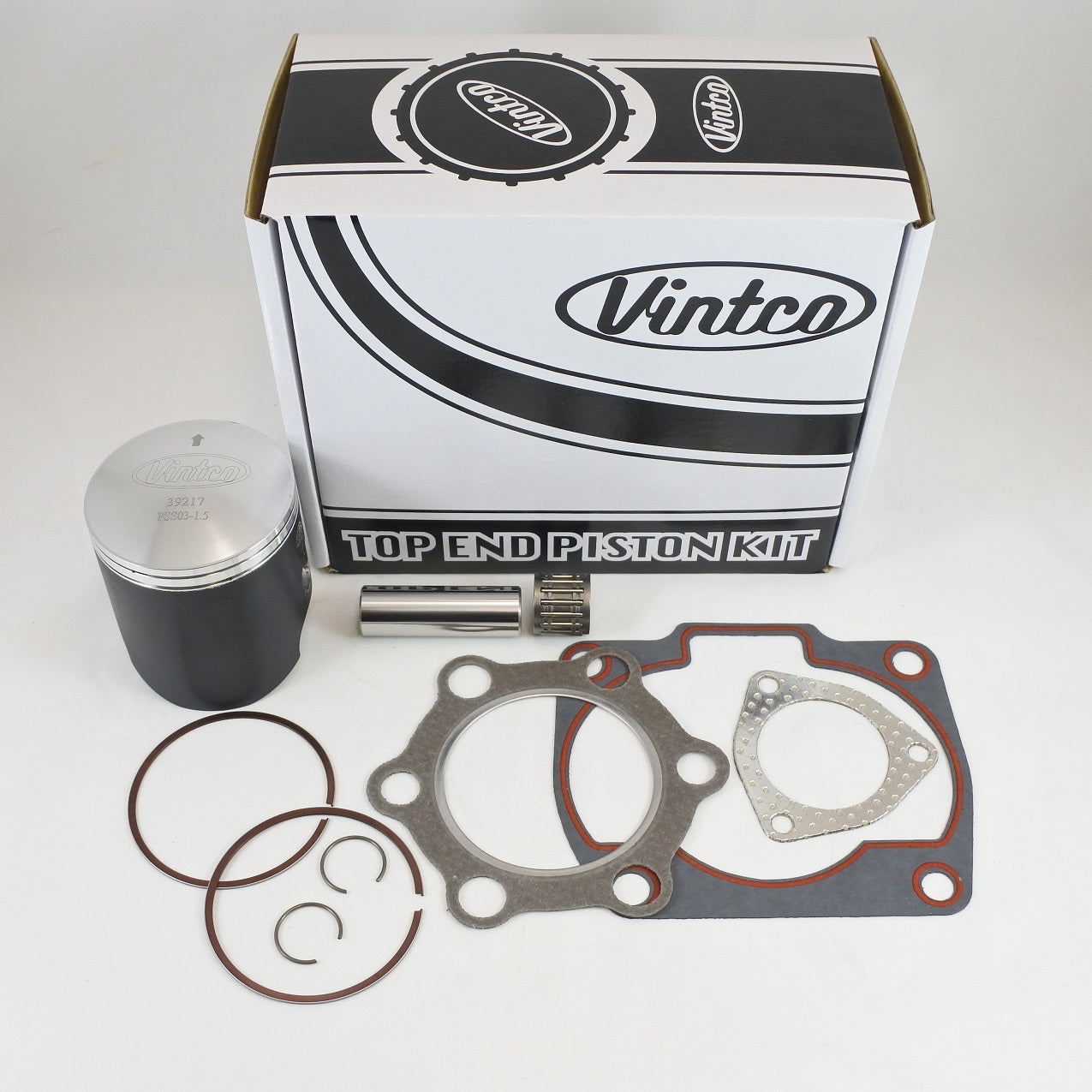

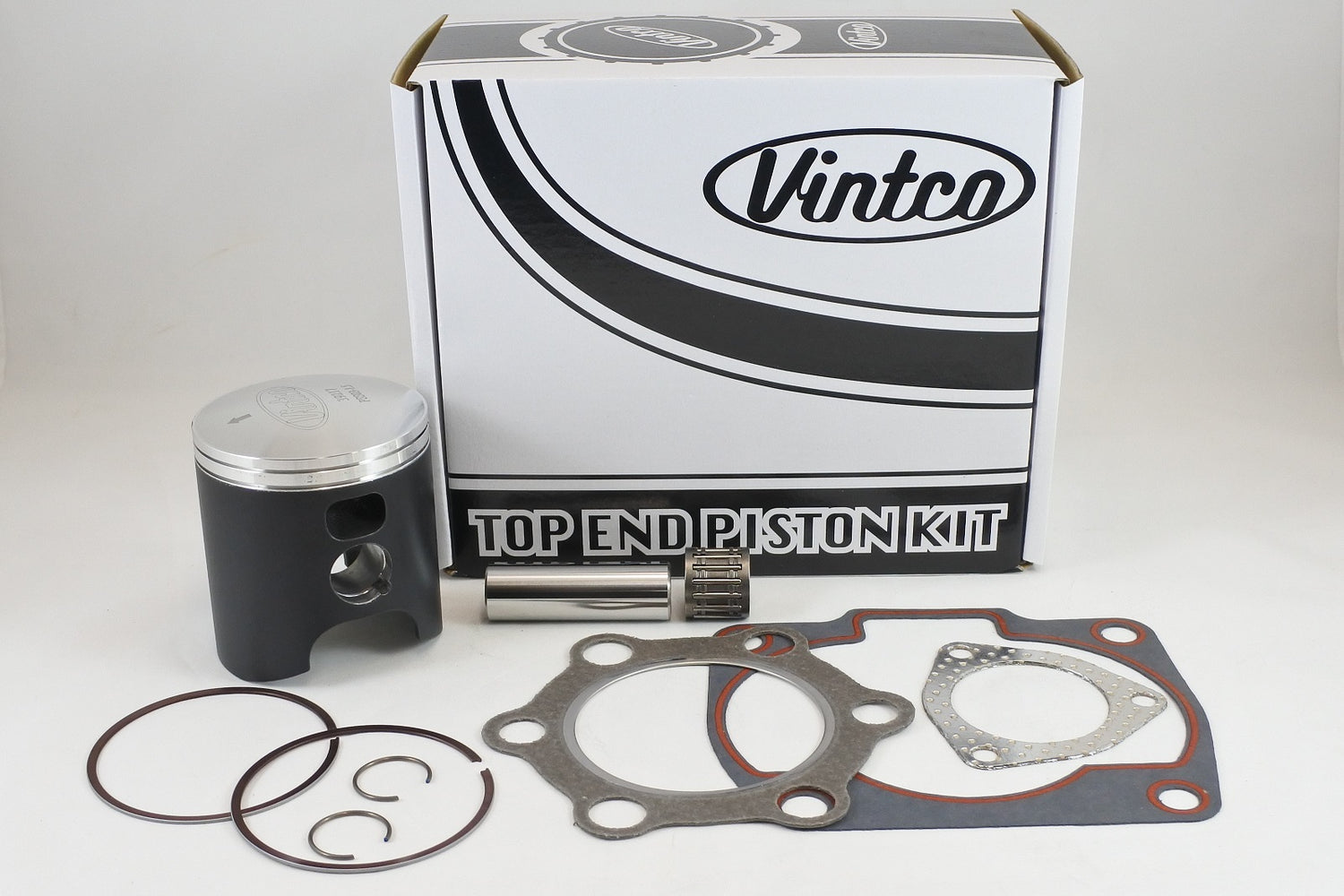

This top end piston kit is designed for the 1981 Suzuki RM250 and provides the main components required for a top-end rebuild in one package. The kit includes a VintCo piston kit with piston, rings, pin and clips, a top end bearing, and a full top-end gasket set comprising head, base, intake and exhaust gaskets. Components are manufactured using modern materials and production methods for OEM-equivalent or better fit and performance. Additional size options are also available.

Features

• Complete top-end rebuild kit
• Includes piston, rings, pin and clips
• Includes top end bearing
• Includes full top-end gasket set
• Gasket set includes head gasket, base gasket, intake gasket and exhaust gasket
• MoS2-coated piston for running-in
• Intended for cost-effective rebuild work
• Kit price includes a 10% saving compared with purchasing the items individually

Specifications

• VintCo Part Number: KTS05-1.5
• Product type: Top End Piston Kit
• Piston type: Forged
• Country of manufacture: Germany
• Nominal piston size: 68.5 mm
• Oversize: +1.5 mm
• Piston measurement: 68.44 mm
• Piston clearance: 0.06 mm

Cross-Reference OEM Part Numbers

• Head gasket: 11141-14202
• Base gasket: 11241-14201
• Exhaust gasket: 14181-16300-H17
• Wrist pin bearing: 09263-18014

Vehicle Fitments

• 1981 Suzuki RM250
